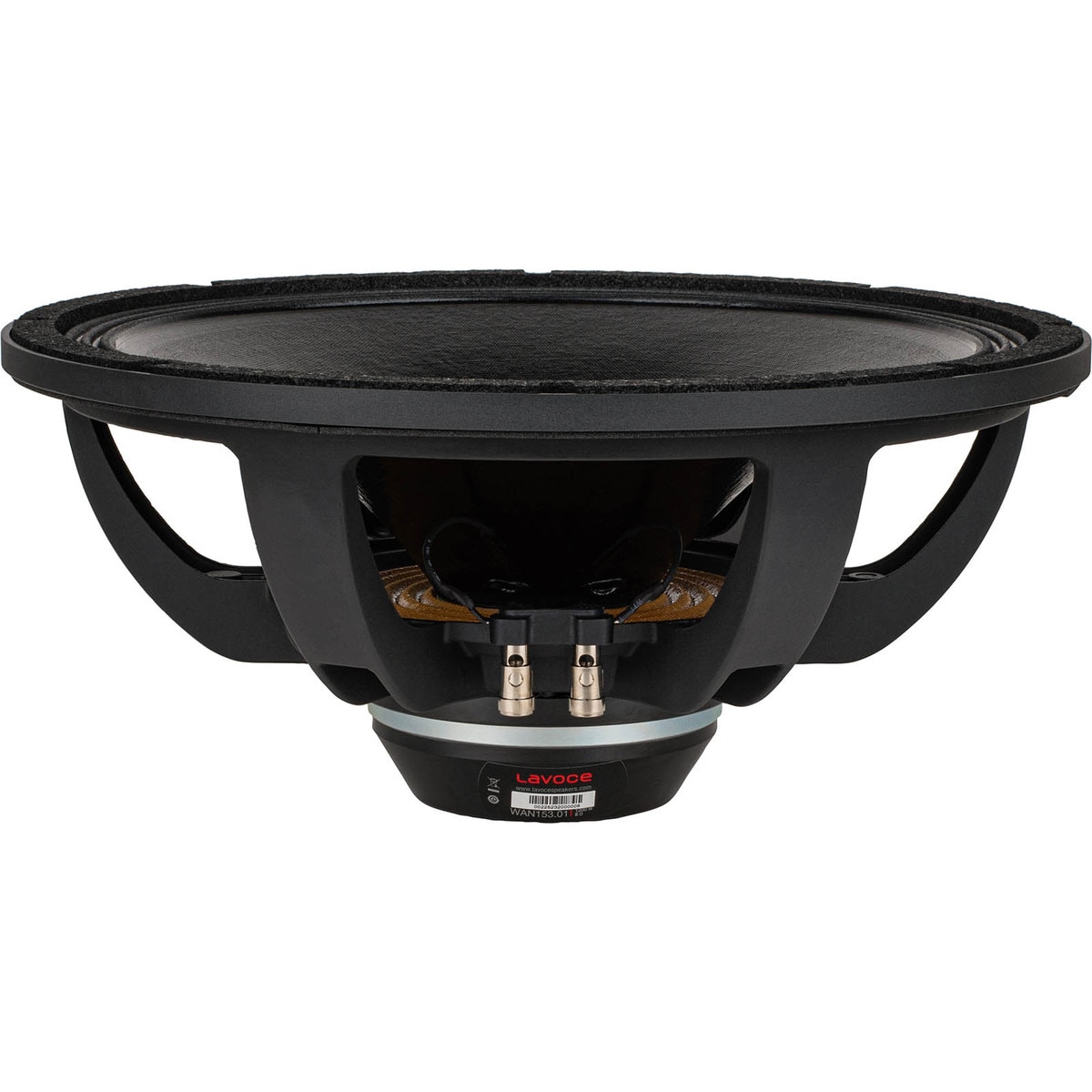

LaVoce WAN153.01 15" Professional Neodymium Woofer 8 Ohm

LaVoce . WAN153.01

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerLaVoce
DimensionUnitinch
Extra Product NameLaVoce WAN153.01 15" Professional Neodymium Woofer 8 Ohm
UPC848864068244
Weight16.7
WeightUnitlbs
depth, length6.92
diameter, height, width15.47
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPN, ModelWAN153.01
qtyInStockBack-Ordered
SKU, Part Number293-782
snippetLaVoce WAN153.01 15" Professional Neodymium Woofer 8 Ohm. Part Number: 293-782 by LaVoce.
BrandLavoce
Unit of MeasureEach
Nominal Diameter15"
Bolt Circle Diameter14.69
Power Handling (RMS)600 Watts
Power Handling (MAX)1200 Watts
Impedance8?
Frequency Response40 to 2,000Hz
Sensitivity100dB 2.83V/1m
Voice Coil Diameter3"
Resonant Frequency (Fs)46.3Hz
DC Resistance (Re)5.2?
Voice Coil Inductance (Le)1mH
Mechanical Q (Qms)5.58
Electromagnetic Q (Qes)0.3
Total Q (Qts)0.29
Compliance Equivalent Volume (Vas)4ft?
Mechanical Compliance of Suspension (Cms)0.1mm/N
BL Product (BL)23.9T?m
Diaphragm Mass Inc Airload (Mms)114.4g
Maximum Linear Excursion (Xmax)6.6mm
Surface Area of Cone (Sd)881.4cm?
Cone MaterialPaper-Treated Paper
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum
Magnet MaterialNeodymium
Overall Outside Diameter15.47"
Baffle Cutout Diameter13.85"
Depth6.92"
# Mounting Holes8
Vented Volume3.75ft?
Vented F342Hz

Distributor offers

SellerSKUMOQIn stockMultiplePrices
parts-express.com293-7821Back-Ordered1
