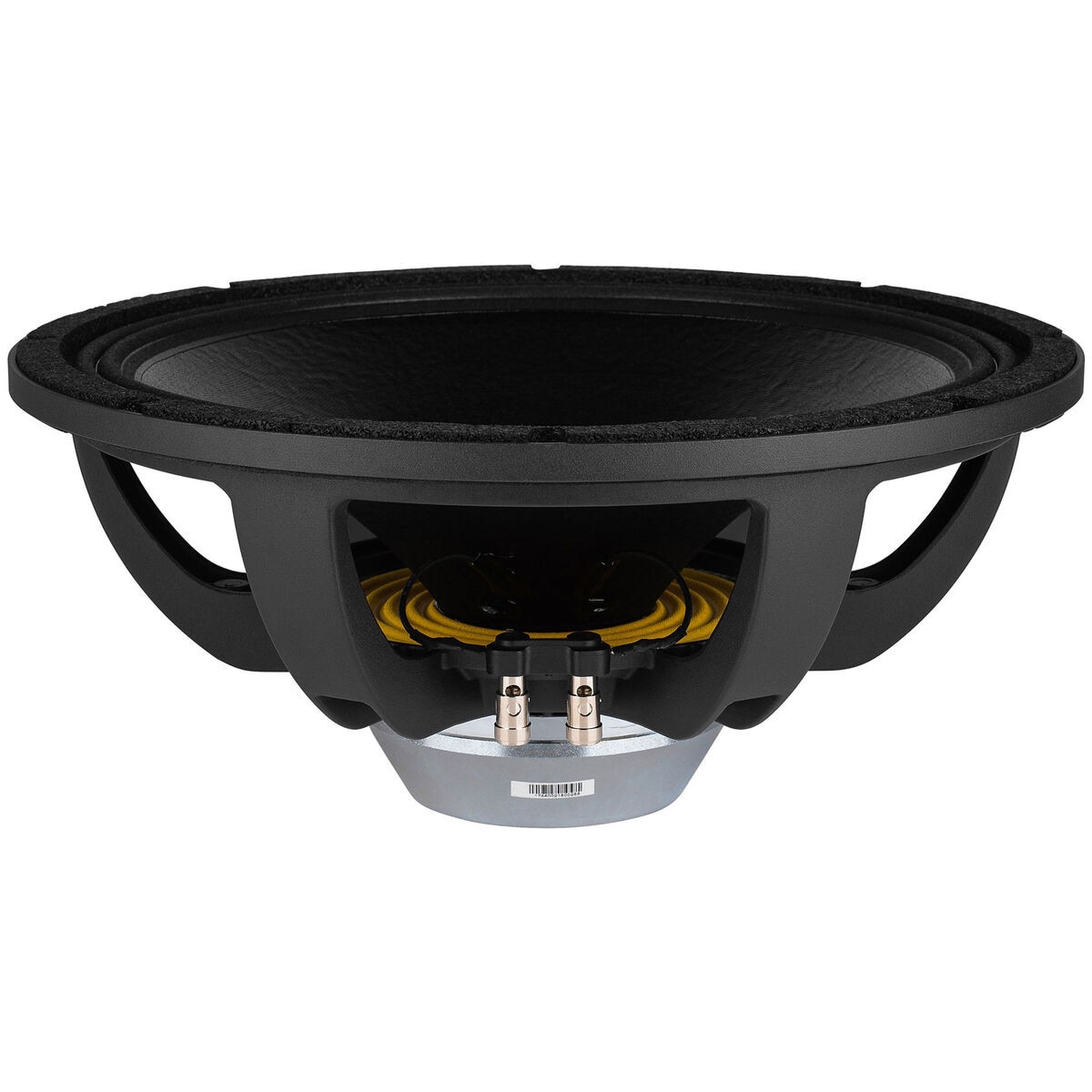

LaVoce WAN153.00 15" Neodymium Woofer 8 Ohm

LaVoce . WAN153.00

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerLaVoce
DimensionUnitinch
Extra Product NameLaVoce WAN153.00 15" Neodymium Woofer 8 Ohm
UPC848864057439
Weight18.55
WeightUnitlbs
depth, length6.81
diameter, height, width15.47
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPN, ModelWAN153.00
qtyInStockOnly 1 In Stock
SKU, Part Number293-721
snippetLaVoce WAN153.00 15" Neodymium Woofer 8 Ohm. Part Number: 293-721 by LaVoce.
BrandLavoce
Unit of MeasureEach
Nominal Diameter15"
Bolt Circle Diameter14.69
Power Handling (RMS)500 Watts
Power Handling (MAX)1000 Watts
Impedance8?
Frequency Response45 to 3,000Hz
Sensitivity98.5dB 2.83V/1m
Voice Coil Diameter3"
Resonant Frequency (Fs)43Hz
DC Resistance (Re)4.7?
Voice Coil Inductance (Le)0.75mH
Mechanical Q (Qms)9.5
Electromagnetic Q (Qes)0.43
Total Q (Qts)0.41
Compliance Equivalent Volume (Vas)4.84ft?
Mechanical Compliance of Suspension (Cms)0.13mm/N
BL Product (BL)17.3T?m
Diaphragm Mass Inc Airload (Mms)100g
Maximum Linear Excursion (Xmax)7mm
Surface Area of Cone (Sd)850cm?
Cone MaterialTreated Paper
Surround MaterialCloth
Voice Coil Wire MaterialCCA
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum
Magnet MaterialNeodymium
Overall Outside Diameter15.47"
Baffle Cutout Diameter13.93"
Depth6.81"
# Mounting Holes8
Sealed Volume2ft?
Sealed F362.1Hz
Vented Volume4.25ft?
Vented F345Hz

Distributor offers

SellerSKUMOQIn stockMultiplePrices
parts-express.com293-7211Only 1 In Stock1
