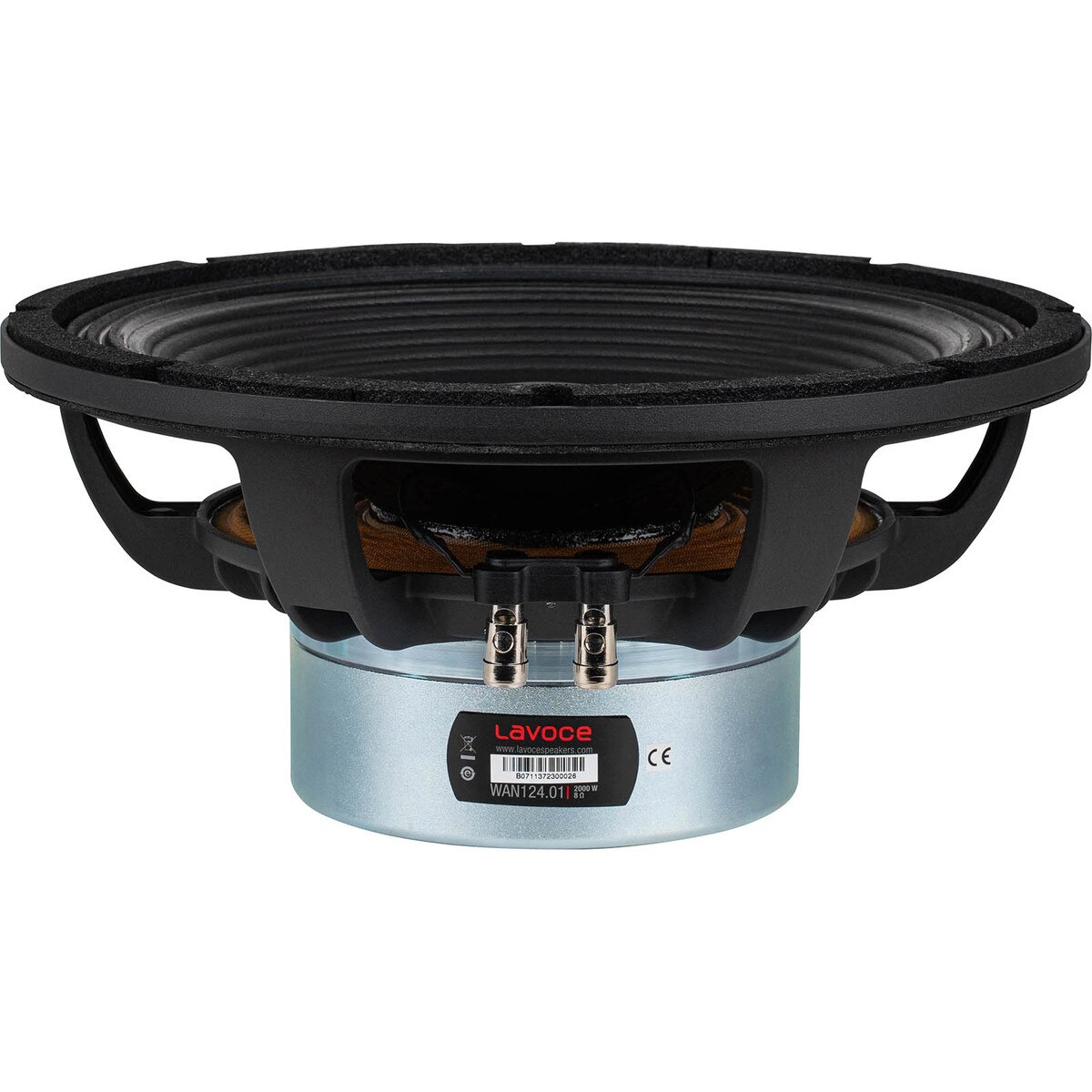

Lavoce WAN124.01 12" Neodymium Woofer

Lavoce . WAN124.01

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandLavoce
DimensionUnitinch
Extra Product NameLavoce WAN124.01 12" Neodymium Woofer
UPC848864072784
Weight19.5
WeightUnitlbs
depth, length5.54
diameter, height, width12.4
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPN, ModelWAN124.01
qtyInStock-2
qtySourceFieldMap
SKU, Part Number293-814
Unit of MeasureEach
Nominal Diameter12"
Power Handling (RMS)1000 Watts
Power Handling (MAX)2000 Watts
Impedance8?
Frequency Response40 to 2,000Hz
Sensitivity96dB 2.83V/1m
Voice Coil Diameter4"
Resonant Frequency (Fs)40Hz
DC Resistance (Re)5?
Voice Coil Inductance (Le)1.7mH
Mechanical Q (Qms)4
Electromagnetic Q (Qes)0.22
Total Q (Qts)0.21
Compliance Equivalent Volume (Vas)1.8ft?
Mechanical Compliance of Suspension (Cms)0.12mm/N
BL Product (BL)26.8T?m
Maximum Linear Excursion (Xmax)8.5mm
Surface Area of Cone (Sd)540cm?
Cone MaterialTreated Paper
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum
Magnet MaterialNeodymium
Overall Outside Diameter12.40"
Baffle Cutout Diameter11.28"
Depth5.54"
# Mounting Holes8
Vented Volume1.625ft?
Vented F347Hz
