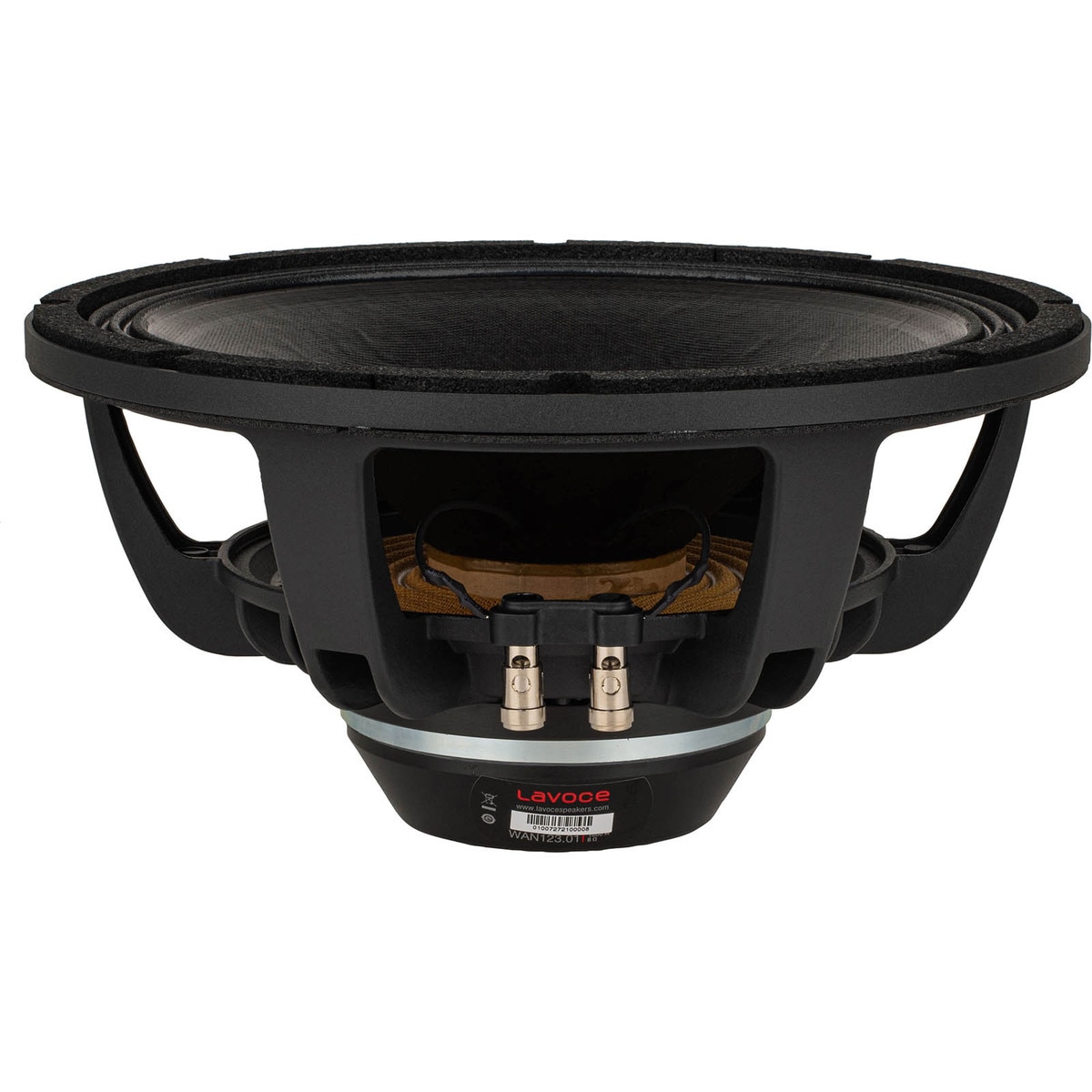

LaVoce WAN123.01 12" Professional Neodymium Woofer 8 Ohm

LaVoce . WAN123.01

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerLaVoce
DimensionUnitinch
Extra Product NameLaVoce WAN123.01 12" Professional Neodymium Woofer 8 Ohm
UPC848864068237
Weight14.25
WeightUnitlbs
depth, length6.12
diameter, height, width12.4
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPN, ModelWAN123.01
qtyInStock0
SKU, Part Number293-780
snippetLaVoce WAN123.01 12" Professional Neodymium Woofer 8 Ohm. Part Number: 293-780 by LaVoce.
BrandLavoce
Unit of MeasureEach
Nominal Diameter12"
Bolt Circle Diameter11.73
Power Handling (RMS)500 Watts
Power Handling (MAX)1000 Watts
Impedance8?
Frequency Response40 to 2,000Hz
Sensitivity99dB 2.83V/1m
Voice Coil Diameter3"
Resonant Frequency (Fs)57.3Hz
DC Resistance (Re)5.2?
Voice Coil Inductance (Le)0.96mH
Mechanical Q (Qms)6.6
Electromagnetic Q (Qes)0.25
Total Q (Qts)0.24
Compliance Equivalent Volume (Vas)1.46ft?
Mechanical Compliance of Suspension (Cms)0.1mm/N
BL Product (BL)24T?m
Diaphragm Mass Inc Airload (Mms)76.8g
Maximum Linear Excursion (Xmax)6.6mm
Surface Area of Cone (Sd)540cm?
Cone MaterialPaper-Treated Paper
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum
Magnet MaterialNeodymium
Overall Outside Diameter12.40"
Baffle Cutout Diameter11.2"
Depth6.12"
# Mounting Holes8
Vented Volume1.38ft?
Vented F355Hz
