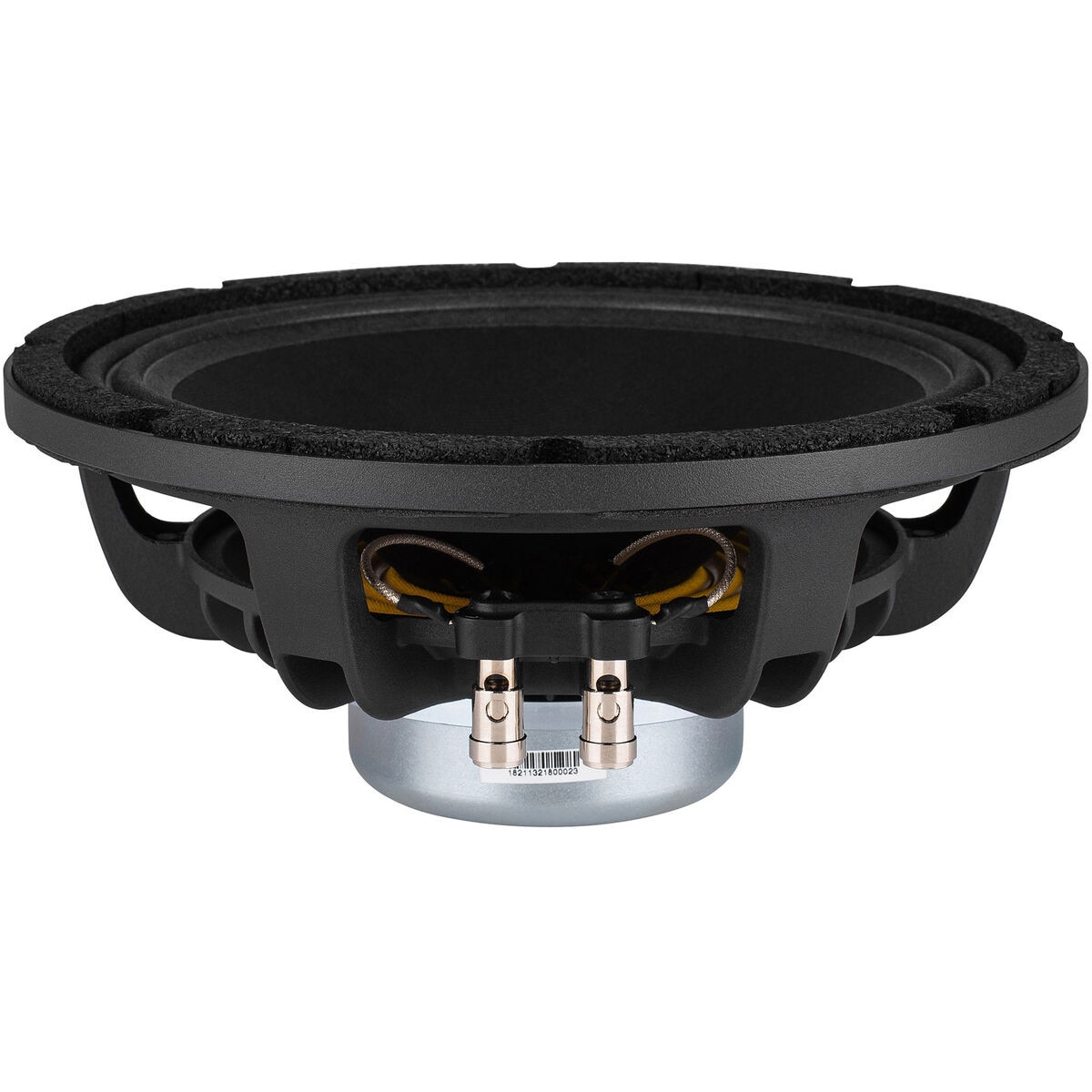

LaVoce WAN102.50 10" Neodymium Woofer 8 Ohm

LaVoce . WAN102.50

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerLaVoce
DimensionUnitinch
Extra Product NameLaVoce WAN102.50 10" Neodymium Woofer 8 Ohm
UPC848864057392
Weight7.9
WeightUnitlbs
depth, length4.31
diameter, height, width10.28
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPN, ModelWAN102.50
qtyInStockOnly 2 In Stock
SKU, Part Number293-717
snippetLaVoce WAN102.50 10" Neodymium Woofer 8 Ohm. Part Number: 293-717 by LaVoce.
BrandLavoce
Unit of MeasureEach
Nominal Diameter10"
Bolt Circle Diameter9.69
Power Handling (RMS)300 Watts
Power Handling (MAX)600 Watts
Impedance8?
Frequency Response80 - 4,000Hz
Sensitivity97dB 2.83V/1m
Voice Coil Diameter2.5"
Resonant Frequency (Fs)77Hz
DC Resistance (Re)5.6?
Voice Coil Inductance (Le)0.5mH
Mechanical Q (Qms)4.7
Electromagnetic Q (Qes)0.38
Total Q (Qts)0.35
Compliance Equivalent Volume (Vas)0.76ft?
Mechanical Compliance of Suspension (Cms)0.13mm/N
BL Product (BL)15.3T?m
Diaphragm Mass Inc Airload (Mms)32.6g
Maximum Linear Excursion (Xmax)5.1mm
Surface Area of Cone (Sd)343cm?
Cone MaterialTreated Paper
Surround MaterialCloth
Voice Coil Wire MaterialCCA
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum
Magnet MaterialNeodymium
Overall Outside Diameter10.28"
Baffle Cutout Diameter9.12"
Depth4.31"
# Mounting Holes8
Vented Volume0.75ft?
Vented F377.7Hz

Distributor offers

SellerSKUMOQIn stockMultiplePrices
parts-express.com293-7171Only 2 In Stock1
