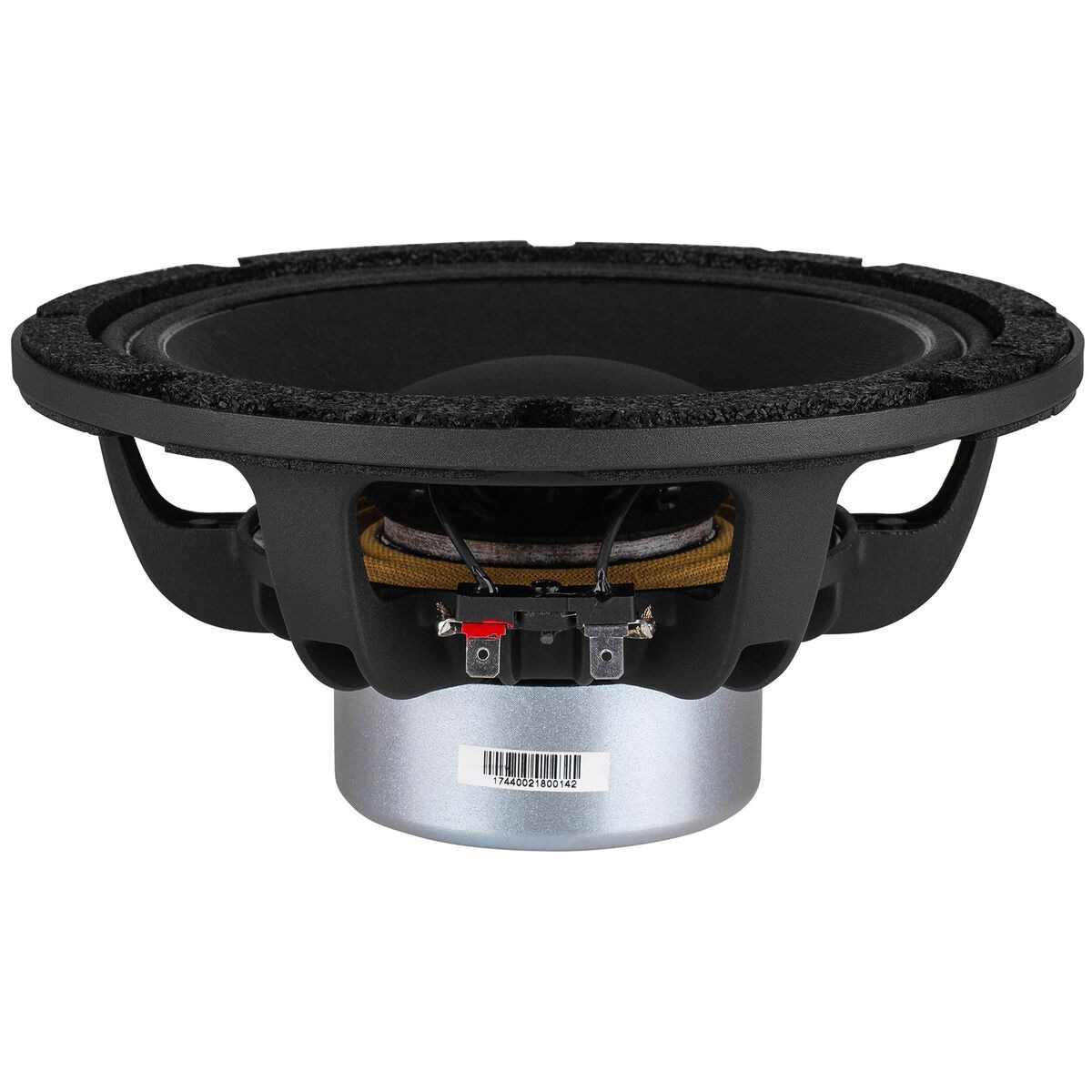

LaVoce WAN082.50 8" Neodymium Woofer 8 Ohm

LaVoce . WAN082.50

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerLaVoce
DimensionUnitinch
Extra Product NameLaVoce WAN082.50 8" Neodymium Woofer 8 Ohm
UPC848864057378
Weight5.55
WeightUnitlbs
depth, length3.91
diameter, height, width8.43
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPN, ModelWAN082.50
qtyInStock-2
qtySourceFieldMap
SKU, Part Number293-715
snippetLaVoce WAN082.50 8" Neodymium Woofer 8 Ohm. Part Number: 293-715 by LaVoce.
BrandLavoce
Unit of MeasureEach
Nominal Diameter8"
Bolt Circle Diameter7.87
Power Handling (RMS)250 Watts
Power Handling (MAX)500 Watts
Impedance8?
Frequency Response75 to 2,000Hz
Sensitivity94dB 2.83V/1m
Voice Coil Diameter2.5"
Resonant Frequency (Fs)75Hz
DC Resistance (Re)6.8?
Voice Coil Inductance (Le)0.8mH
Mechanical Q (Qms)3.7
Electromagnetic Q (Qes)0.36
Total Q (Qts)0.33
Compliance Equivalent Volume (Vas), Vented Volume0.35ft?
Mechanical Compliance of Suspension (Cms)0.14mm/N
BL Product (BL)16.4T?m
Diaphragm Mass Inc Airload (Mms)30g
Maximum Linear Excursion (Xmax)4.1mm
Surface Area of Cone (Sd)227cm?
Cone MaterialTreated Paper
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum
Magnet MaterialNeodymium
Overall Outside Diameter8.43"
Baffle Cutout Diameter7.30"
Depth3.91"
# Mounting Holes8
Vented F376Hz

Distributor offers

SellerSKUMOQIn stockMultiplePrices
parts-express.com293-7151-21
