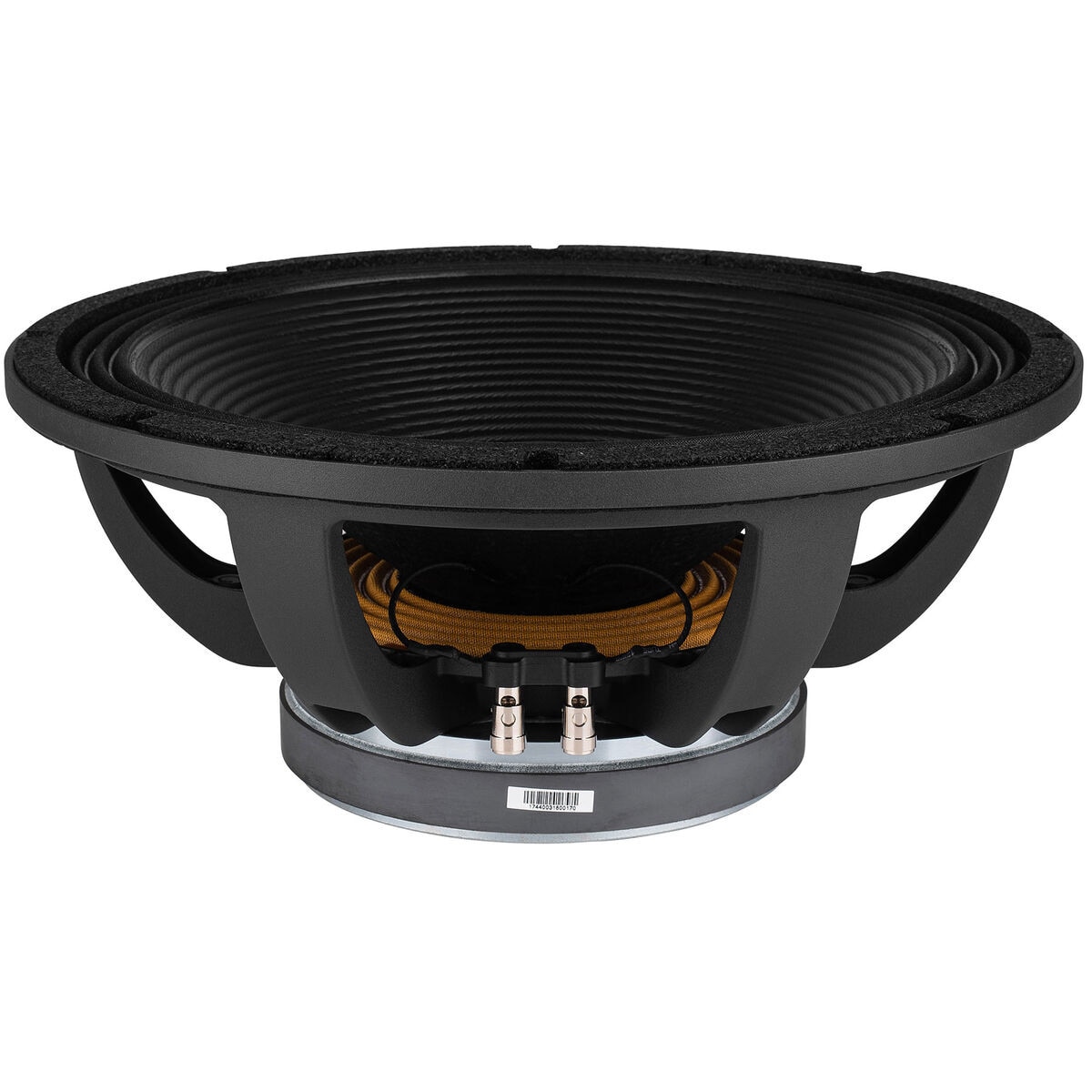

LaVoce WAF154.02 15" Subwoofer 8 Ohm

LaVoce . WAF154.02

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerLaVoce
DimensionUnitinch
Extra Product NameLaVoce WAF154.02 15" Subwoofer 8 Ohm
UPC848864057446
Weight27.7
WeightUnitlbs
depth, length6.8
diameter, height, width15.47
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPN, ModelWAF154.02
qtyInStockBack-Ordered
SKU, Part Number293-722
snippetLaVoce WAF154.02 15" Subwoofer 8 Ohm. Part Number: 293-722 by LaVoce.
BrandLavoce
Unit of MeasureEach
Nominal Diameter15"
Bolt Circle Diameter14.69
Power Handling (RMS)1000 Watts
Power Handling (MAX)2000 Watts
Impedance8?
Frequency Response40 to 1,000Hz
Sensitivity96dB 2.83V/1m
Voice Coil Diameter4"
Resonant Frequency (Fs)40Hz
DC Resistance (Re)6?
Voice Coil Inductance (Le)1.7mH
Mechanical Q (Qms)7.2
Electromagnetic Q (Qes)0.42
Total Q (Qts)0.39
Compliance Equivalent Volume (Vas)4.63ft?
Mechanical Compliance of Suspension (Cms)0.1mm/N
BL Product (BL)23.1T?m
Diaphragm Mass Inc Airload (Mms)148.8g
Maximum Linear Excursion (Xmax)7.9mm
Surface Area of Cone (Sd)830cm?
Cone MaterialTreated Paper
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite
Overall Outside Diameter15.47"
Baffle Cutout Diameter13.93"
Depth6.8"
# Mounting Holes8
Sealed Volume1.5ft?
Sealed F362.1Hz
Vented Volume3.75ft?
Vented F343.6Hz
