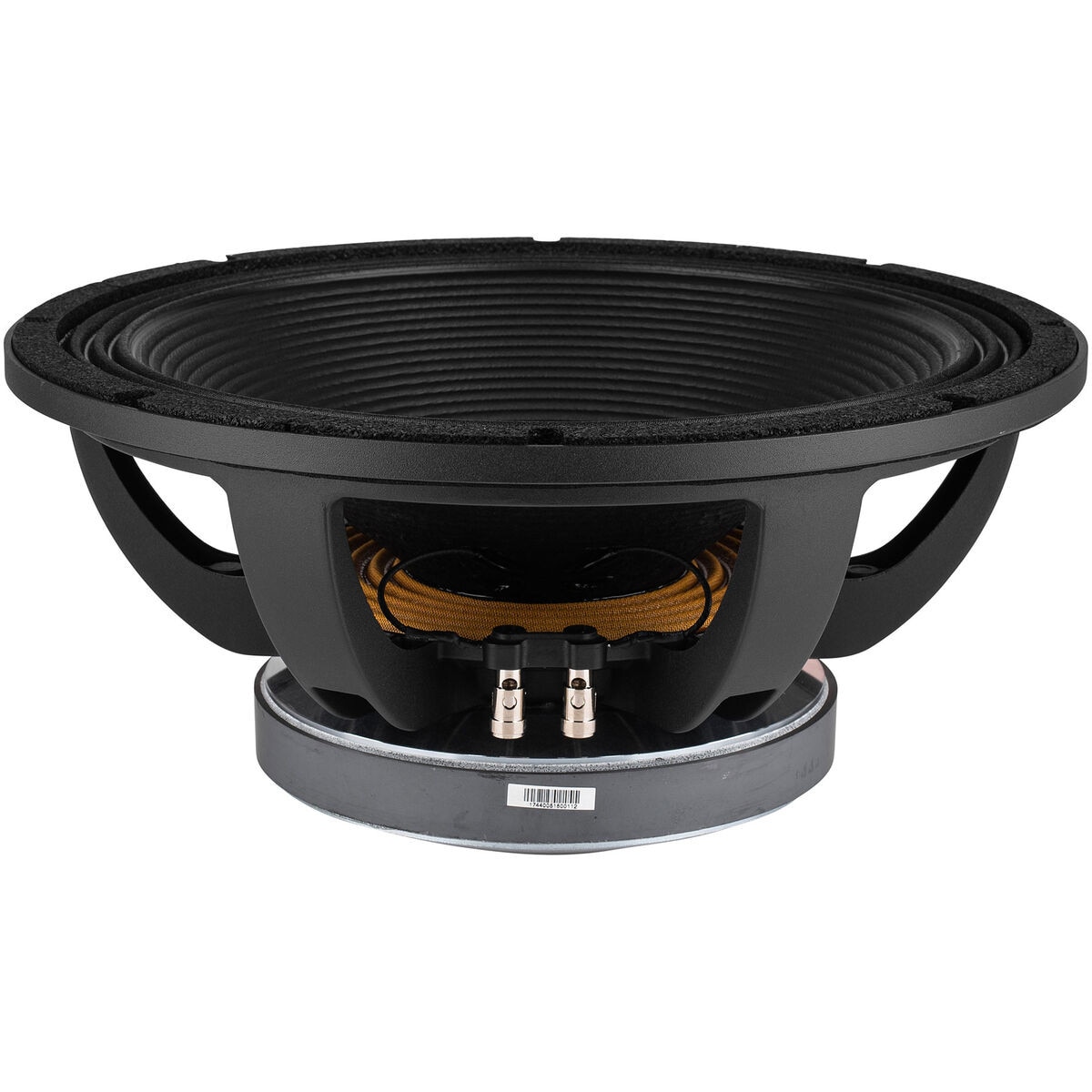

LaVoce WAF154.01 15" Subwoofer 8 Ohm

LaVoce . WAF154.01

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerLaVoce
DimensionUnitinch
Extra Product NameLaVoce WAF154.01 15" Subwoofer 8 Ohm
UPC848864057453
Weight34.25
WeightUnitlbs
depth, length7.25
diameter, height, width15.47
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPN, ModelWAF154.01
qtyInStockOnly 1 In Stock
SKU, Part Number293-723
snippetLaVoce WAF154.01 15" Subwoofer 8 Ohm. Part Number: 293-723 by LaVoce.
BrandLavoce
Unit of MeasureEach
Nominal Diameter15"
Bolt Circle Diameter14.69
Power Handling (RMS)1000 Watts
Power Handling (MAX)2000 Watts
Impedance8?
Frequency Response40 to 1,000Hz
Sensitivity97dB 2.83V/1m
Voice Coil Diameter4"
Resonant Frequency (Fs)42Hz
DC Resistance (Re)5.3?
Voice Coil Inductance (Le)1.7mH
Mechanical Q (Qms)5.5
Electromagnetic Q (Qes)0.32
Total Q (Qts)0.3
Compliance Equivalent Volume (Vas)3.04ft?
Mechanical Compliance of Suspension (Cms)0.09mm/N
BL Product (BL)26.3T?m
Diaphragm Mass Inc Airload (Mms)162.8g
Maximum Linear Excursion (Xmax)10.3mm
Surface Area of Cone (Sd)830cm?
Cone MaterialTreated Paper
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite
Overall Outside Diameter15.47"
Baffle Cutout Diameter13.93"
Depth7.25"
# Mounting Holes8
Sealed Volume1.5ft?
Sealed F375.9Hz
Vented Volume3.5ft?
Vented F342.1Hz
