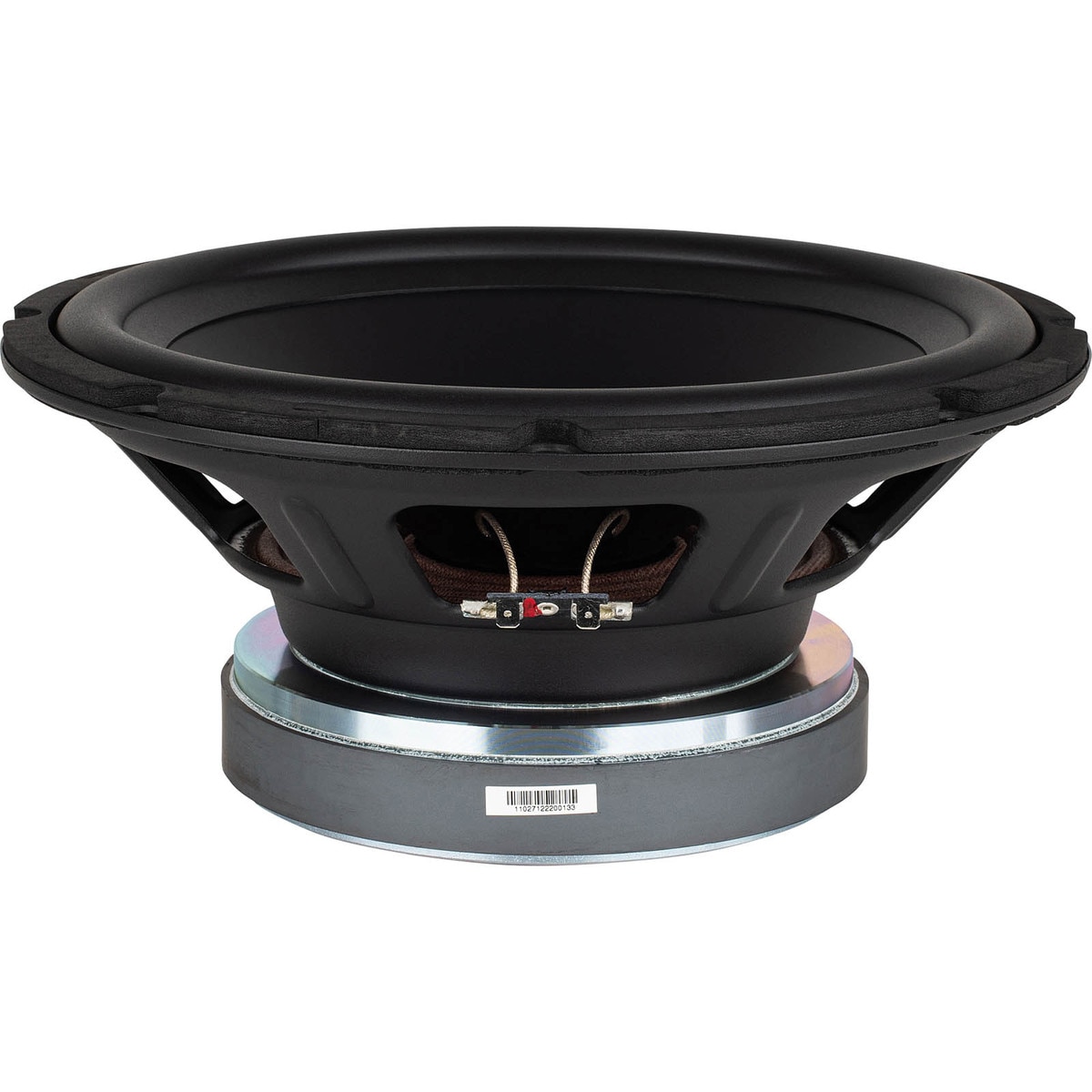

LaVoce SSF122.50L 12" Paper Cone Subwoofer

LaVoce . SSF122.50L

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerLaVoce
DimensionUnitinch
Extra Product NameLaVoce SSF122.50L 12" Paper Cone Subwoofer
UPC848864069760
Weight22.4
WeightUnitlbs
depth, length5.47
diameter, height, width12.22
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPN, ModelSSF122.50L
qtyInStock-2
qtySourceFieldMap
SKU, Part Number293-788
snippet. Part Number: 293-788 by LaVoce.
BrandLavoce
Unit of MeasureEach
Nominal Diameter12"
Power Handling (RMS)400 Watts
Power Handling (MAX)800 Watts
Impedance8?
Frequency Response40 to 500Hz
Sensitivity93dB 2.83V/1m
Voice Coil Diameter2.5"
Resonant Frequency (Fs)41Hz
DC Resistance (Re)5.4?
Voice Coil Inductance (Le)1.38mH
Mechanical Q (Qms)3.22
Electromagnetic Q (Qes)0.47
Total Q (Qts)0.41
Compliance Equivalent Volume (Vas)2.17ft?
Mechanical Compliance of Suspension (Cms)0.154mm/N
BL Product (BL)17.1T?m
Diaphragm Mass Inc Airload (Mms)98.8g
Maximum Linear Excursion (Xmax)11.5mm
Surface Area of Cone (Sd)530.9cm?
Cone MaterialPaper-Treated Paper
Surround MaterialRubber
Voice Coil Wire MaterialCCA
Voice Coil FormerFiberglass
Basket / Frame MaterialSteel
Magnet MaterialFerrite
Overall Outside Diameter12.22"
Baffle Cutout Diameter11.06"
Depth5.47"
# Mounting Holes8
Sealed Volume1.02ft?
Sealed F357.9Hz
Vented Volume2.05ft?
Vented F341.1Hz
