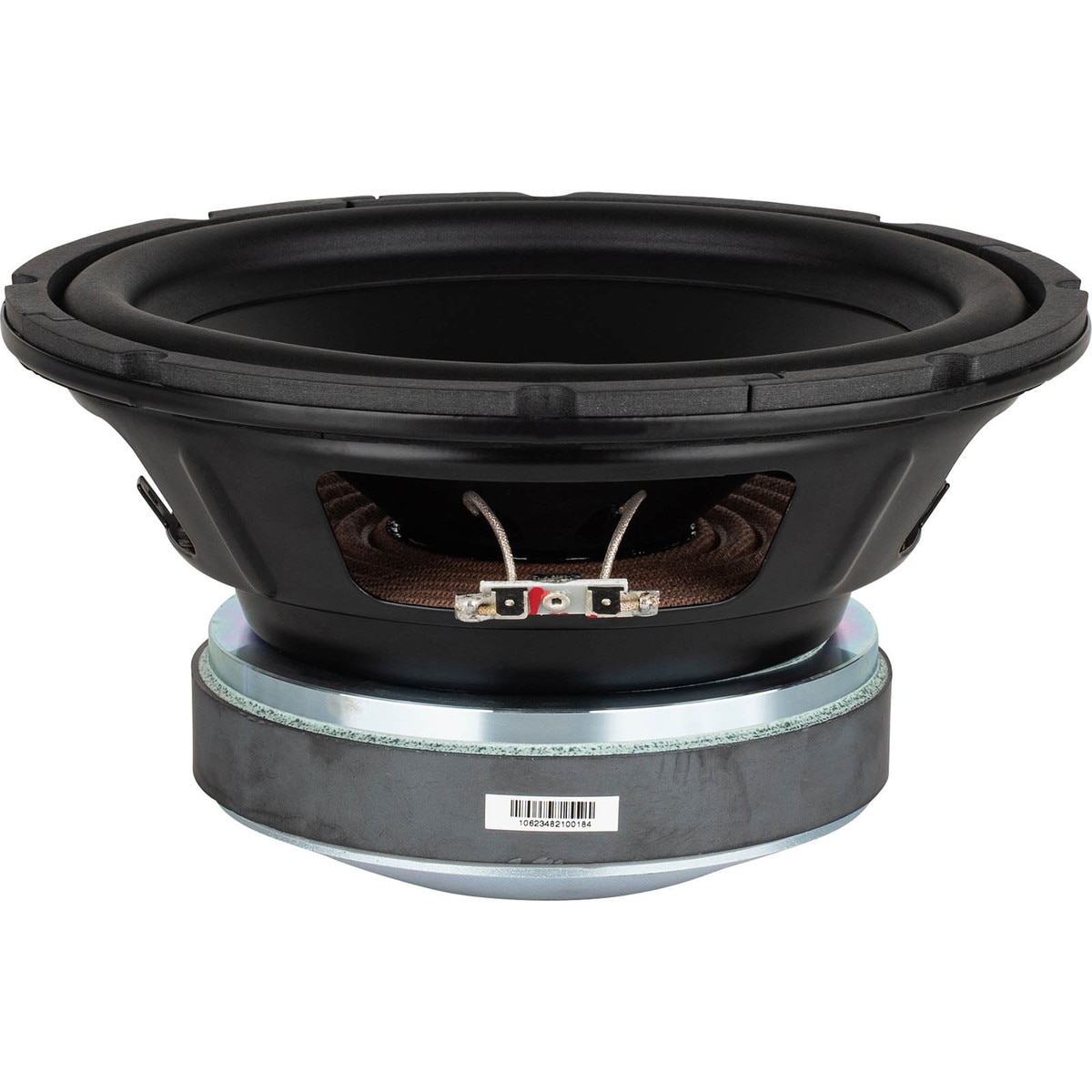

LaVoce SSF102.50L 10" Paper Cone Subwoofer

LaVoce . SSF102.50L

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerLaVoce
DimensionUnitinch
Extra Product NameLaVoce SSF102.50L 10" Paper Cone Subwoofer
UPC848864069753
Weight18.3
WeightUnitlbs
depth, length5.0
diameter, height, width10.08
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPN, ModelSSF102.50L
qtyInStock-2
qtySourceFieldMap
SKU, Part Number293-786
snippet. Part Number: 293-786 by LaVoce.
BrandLavoce
Unit of MeasureEach
Nominal Diameter10"
Power Handling (RMS)400 Watts
Power Handling (MAX)800 Watts
Impedance8?
Frequency Response50 to 500Hz
Sensitivity91.5dB 2.83V/1m
Voice Coil Diameter2.5"
Resonant Frequency (Fs)50Hz
DC Resistance (Re)5.5?
Voice Coil Inductance (Le)1.22mH
Mechanical Q (Qms)4.67
Electromagnetic Q (Qes)0.53
Total Q (Qts)0.48
Compliance Equivalent Volume (Vas)0.9ft?
Mechanical Compliance of Suspension (Cms)0.137mm/N
BL Product (BL)15.54T?m
Diaphragm Mass Inc Airload (Mms)75.02g
Maximum Linear Excursion (Xmax)11.5mm
Surface Area of Cone (Sd)363.05cm?
Cone MaterialPaper-Treated Paper
Surround MaterialRubber
Voice Coil Wire MaterialCCA
Voice Coil FormerFiberglass
Basket / Frame MaterialSteel
Magnet MaterialFerrite
Overall Outside Diameter10.08"
Baffle Cutout Diameter9.05"
Depth5"
# Mounting Holes8
Sealed Volume0.7ft?
Sealed F360.2Hz
Vented Volume1.4ft?
Vented F342.4Hz
