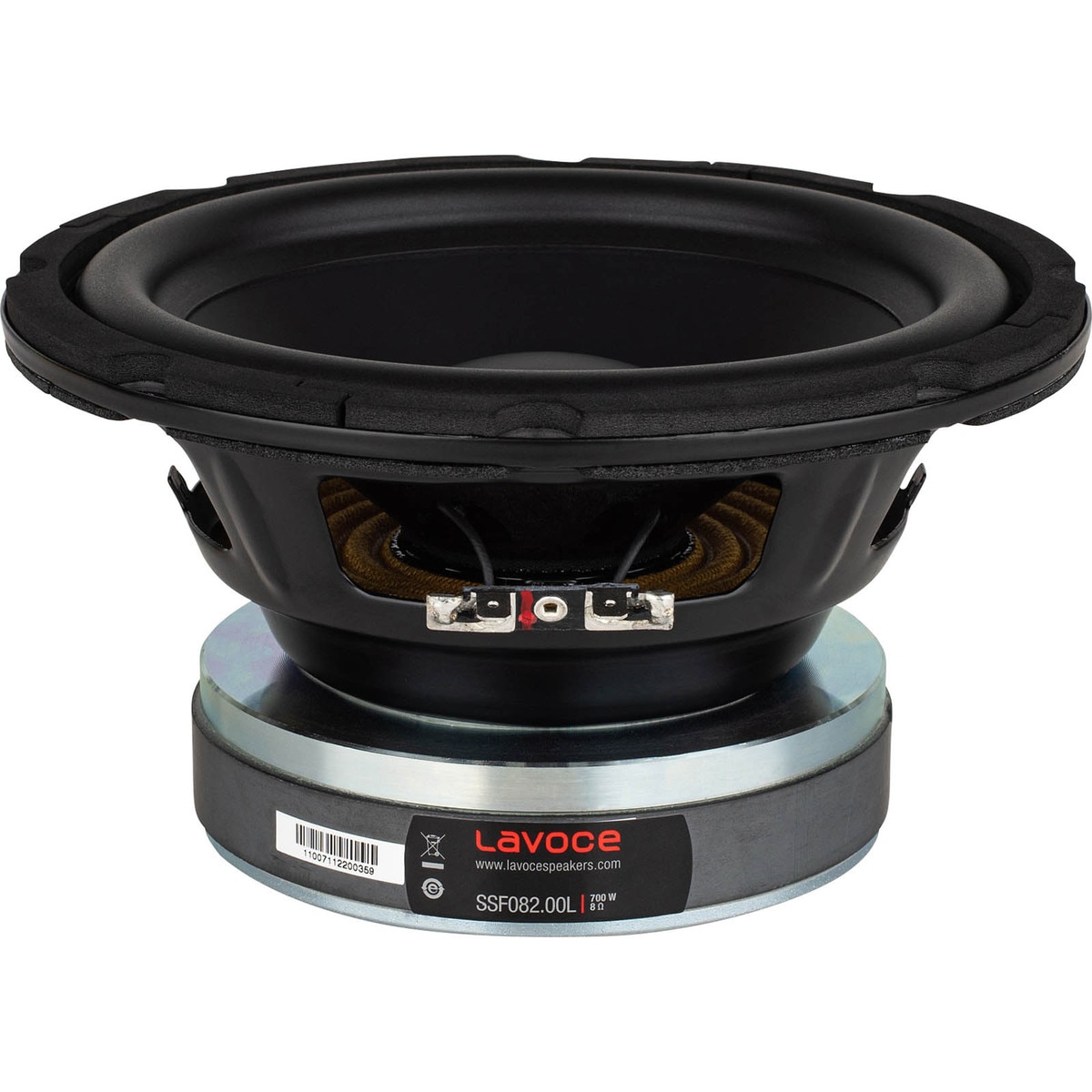

LaVoce SSF082.00L 8" Paper Cone Subwoofer

LaVoce . SSF082.00L

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerLaVoce
DimensionUnitinch
Extra Product NameLaVoce SSF082.00L 8" Paper Cone Subwoofer
UPC848864069715
Weight10.5
WeightUnitlbs
depth, length4.49
diameter, height, width8.27
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPN, ModelSSF082.00L
qtyInStock-2
qtySourceFieldMap
SKU, Part Number293-784
snippet. Part Number: 293-784 by LaVoce.
BrandLavoce
Unit of MeasureEach
Nominal Diameter8"
Power Handling (RMS)350 Watts
Power Handling (MAX)700 Watts
Impedance8?
Frequency Response50 to 500Hz
Sensitivity88dB 2.83V/1m
Voice Coil Diameter2"
Resonant Frequency (Fs)52Hz
DC Resistance (Re)5.2?
Voice Coil Inductance (Le)2.51mH
Mechanical Q (Qms)9.94
Electromagnetic Q (Qes)0.52
Total Q (Qts)0.49
Compliance Equivalent Volume (Vas)0.34ft?
Mechanical Compliance of Suspension (Cms)0.144mm/N
BL Product (BL)14.67T?m
Diaphragm Mass Inc Airload (Mms)66.3g
Maximum Linear Excursion (Xmax)9mm
Surface Area of Cone (Sd)216.42cm?
Cone MaterialPaper-Treated Paper
Surround MaterialRubber
Voice Coil Wire MaterialCCA
Voice Coil FormerFiberglass
Basket / Frame MaterialSteel
Magnet MaterialFerrite
Overall Outside Diameter8.27"
Baffle Cutout Diameter7.17"
Depth4.49"
# Mounting Holes8
Sealed Volume0.35ft?
Sealed F360.2Hz
Vented Volume0.7ft?
Vented F342.5Hz
