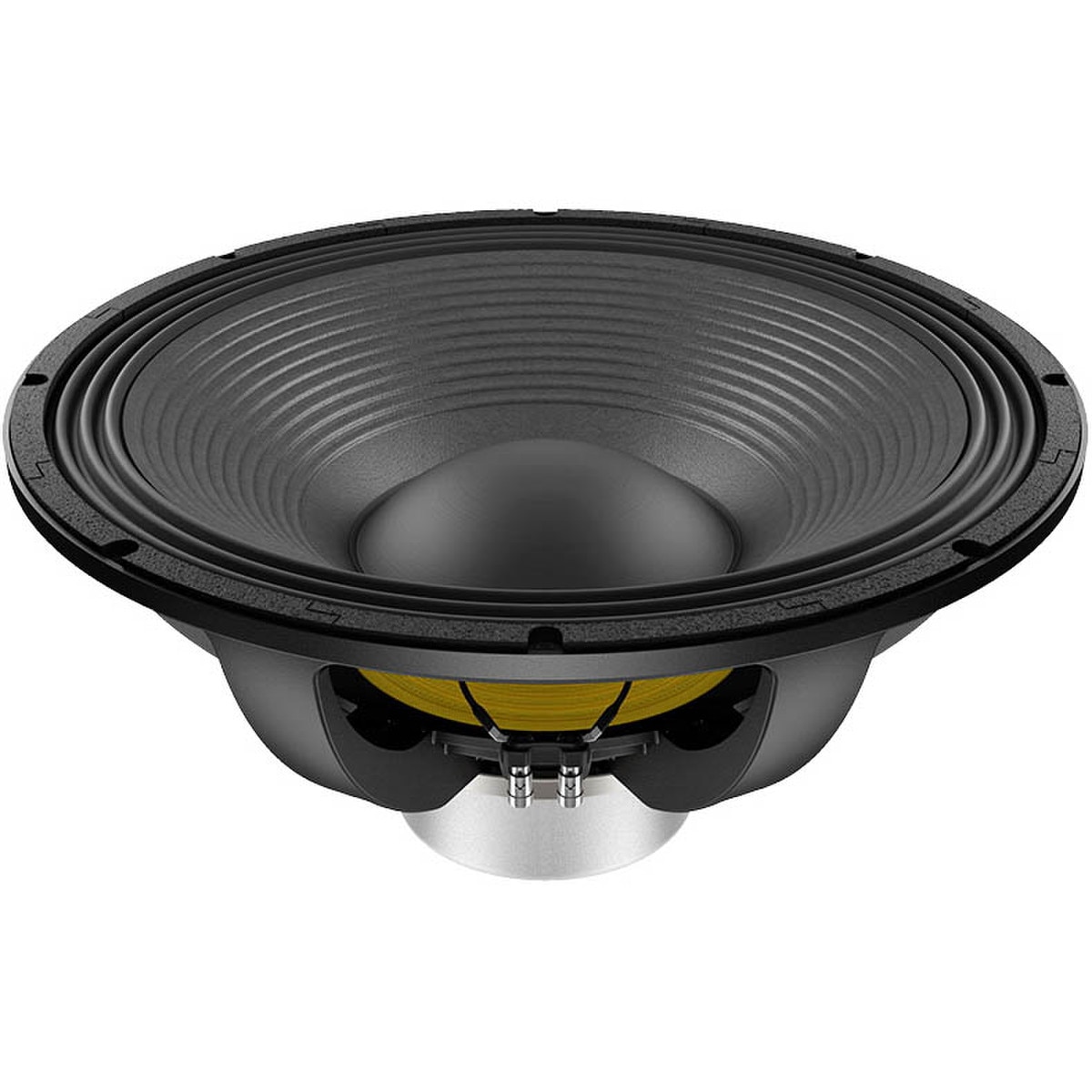

Lavoce SAN214.50-4 21" Subwoofer 4 ohm

Lavoce . SAN214.50-4

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandLavoce
DimensionUnitinch
Extra Product NameLavoce SAN214.50-4 21" Subwoofer 4 ohm
UPC848864072807
Weight39.55
WeightUnitlbs
depth, length10.19
diameter, height, width21.54
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPN, ModelSAN214.50-4
qtyInStock-2
qtySourceFieldMap
SKU, Part Number293-818
Unit of MeasureEach
Nominal Diameter21"
Power Handling (RMS)1700 Watts
Power Handling (MAX)3400 Watts
Impedance8?
Frequency Response30 to 1000Hz
Sensitivity98dB 2.83V/1m
Voice Coil Diameter4.5"
Resonant Frequency (Fs)33Hz
DC Resistance (Re)5.21?
Voice Coil Inductance (Le)4.72mH
Mechanical Q (Qms)11.03
Electromagnetic Q (Qes)0.29
Total Q (Qts)0.28
Compliance Equivalent Volume (Vas)7.96ft?
Mechanical Compliance of Suspension (Cms)0.058mm/N
BL Product (BL)38.87T?m
Maximum Linear Excursion (Xmax)15.5mm
Surface Area of Cone (Sd)1661.9cm?
Cone MaterialTreated Paper
Surround MaterialCloth
Voice Coil Wire MaterialCCA
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum
Magnet MaterialNeodymium
Overall Outside Diameter21.54"
Baffle Cutout Diameter19.97"
Depth10.19"
# Mounting Holes8
Vented Volume8.25ft?
Vented F335.4Hz
