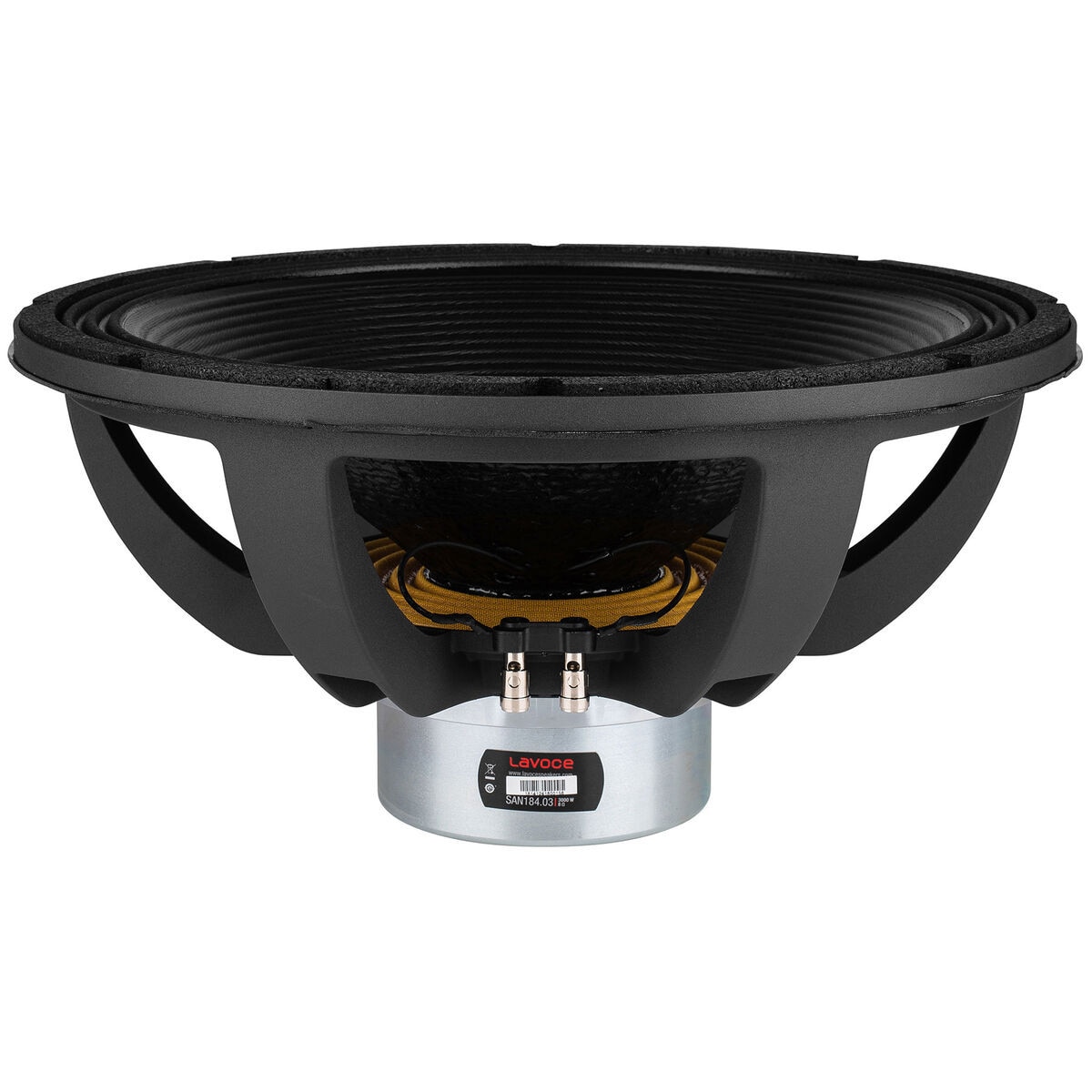

LaVoce SAN184.03 18" Neodymium Subwoofer 8 Ohm

LaVoce . SAN184.03

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerLaVoce
DimensionUnitinch
Extra Product NameLaVoce SAN184.03 18" Neodymium Subwoofer 8 Ohm
UPC848864057545
Weight31.8
WeightUnitlbs
depth, length8.86
diameter, height, width18.11
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPN, ModelSAN184.03
qtyInStockOnly 1 In Stock
SKU, Part Number293-731
snippetLaVoce SAN184.03 18" Neodymium Subwoofer 8 Ohm. Part Number: 293-731 by LaVoce.
BrandLavoce
Unit of MeasureEach
Nominal Diameter18"
Bolt Circle Diameter17.4
Power Handling (RMS)1500 Watts
Power Handling (MAX)3000 Watts
Impedance8?
Frequency Response35 to 1,000Hz
Sensitivity96dB 2.83V/1m
Voice Coil Diameter4"
Resonant Frequency (Fs)36Hz
DC Resistance (Re)5.5?
Voice Coil Inductance (Le)2.1mH
Mechanical Q (Qms)7.8
Electromagnetic Q (Qes)0.44
Total Q (Qts)0.42
Compliance Equivalent Volume (Vas)5.65ft?
Mechanical Compliance of Suspension (Cms)0.07mm/N
BL Product (BL)27.2T?m
Diaphragm Mass Inc Airload (Mms)261g
Maximum Linear Excursion (Xmax)13mm
Surface Area of Cone (Sd)1225cm?
Cone MaterialTreated Paper
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum
Magnet MaterialNeodymium
Overall Outside Diameter18.11"
Baffle Cutout Diameter16.64"
Depth8.86"
# Mounting Holes8
Sealed Volume3.25ft?
Sealed F348.8Hz
Vented Volume7ft?
Vented F333.5Hz
