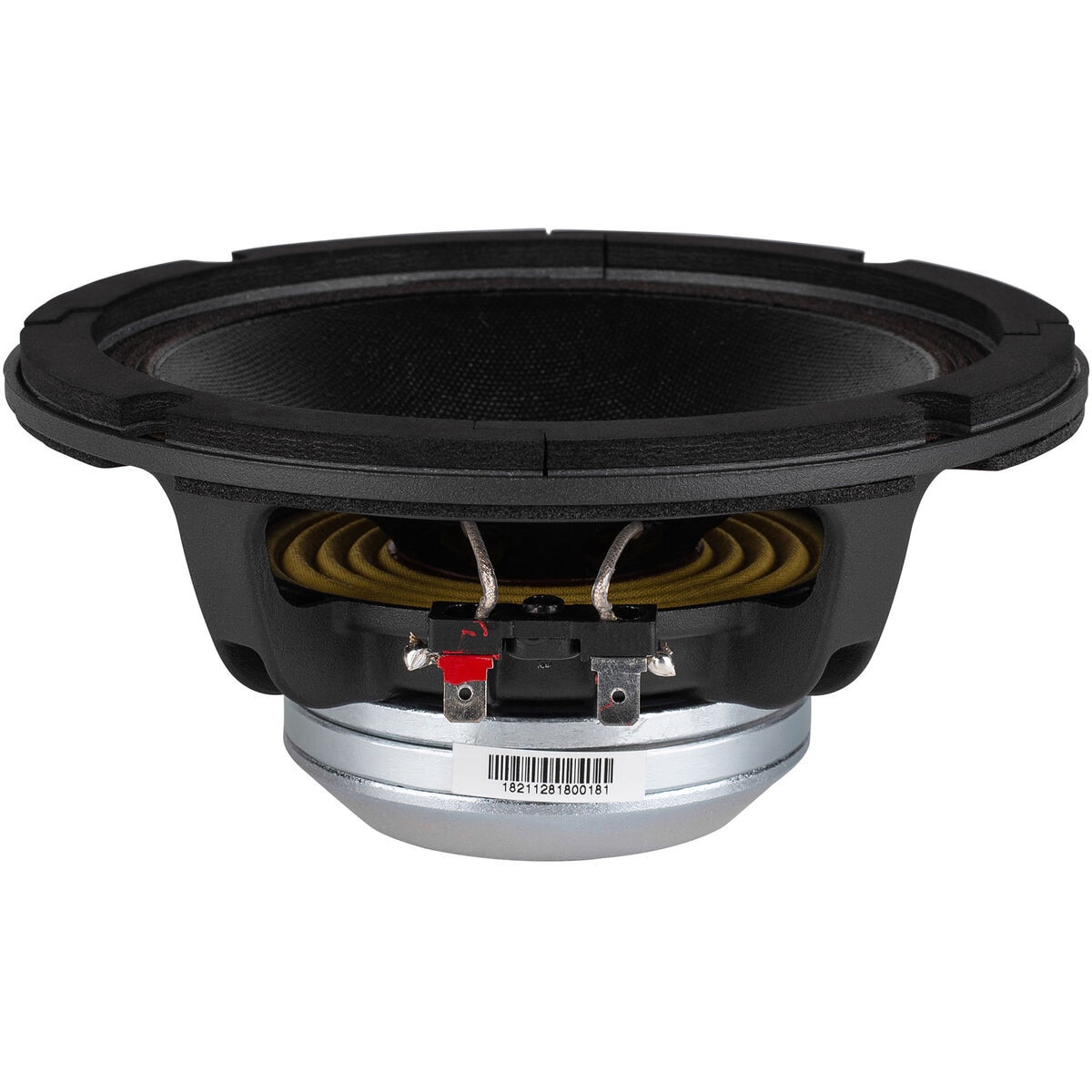

LaVoce MAN061.80 6-1/2" Neodymium Midrange Woofer 8 Ohm

LaVoce . MAN061.80

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerLaVoce
DimensionUnitinch
Extra Product NameLaVoce MAN061.80 6-1/2" Neodymium Midrange Woofer 8 Ohm
UPC848864057354
Weight2.9
WeightUnitlbs
depth, length3.08
diameter, height, width6.69
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPN, ModelMAN061.80
qtyInStock-2
qtySourceFieldMap
SKU, Part Number293-713
snippetLaVoce MAN061.80 6-1/2" Neodymium Midrange Woofer 8 Ohm. Part Number: 293-713 by LaVoce.
BrandLavoce
Unit of MeasureEach
Nominal Diameter6-1/2"
Bolt Circle Diameter6.14
Power Handling (RMS)150 Watts
Power Handling (MAX)300 Watts
Impedance8?
Frequency Response170 to 6,000Hz
Sensitivity95.5dB 2.83V/1m
Voice Coil Diameter1.8"
Resonant Frequency (Fs)170Hz
DC Resistance (Re)5.5?
Voice Coil Inductance (Le)0.08mH
Mechanical Q (Qms)4.5
Electromagnetic Q (Qes)0.6
Total Q (Qts)0.54
Compliance Equivalent Volume (Vas)0.07ft?
Mechanical Compliance of Suspension (Cms)0.07mm/N
BL Product (BL)11T?m
Diaphragm Mass Inc Airload (Mms)13g
Maximum Linear Excursion (Xmax)3mm
Surface Area of Cone (Sd)137cm?
Cone MaterialTreated Paper
Surround MaterialCloth
Voice Coil Wire MaterialCCA
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum
Magnet MaterialNeodymium
Overall Outside Diameter6.69"
Baffle Cutout Diameter5.71"
Depth3.08"
# Mounting Holes4
Sealed Volume0.06ft?
Sealed F3250Hz
Vented Volume0.12ft?
Vented F3137.5Hz
