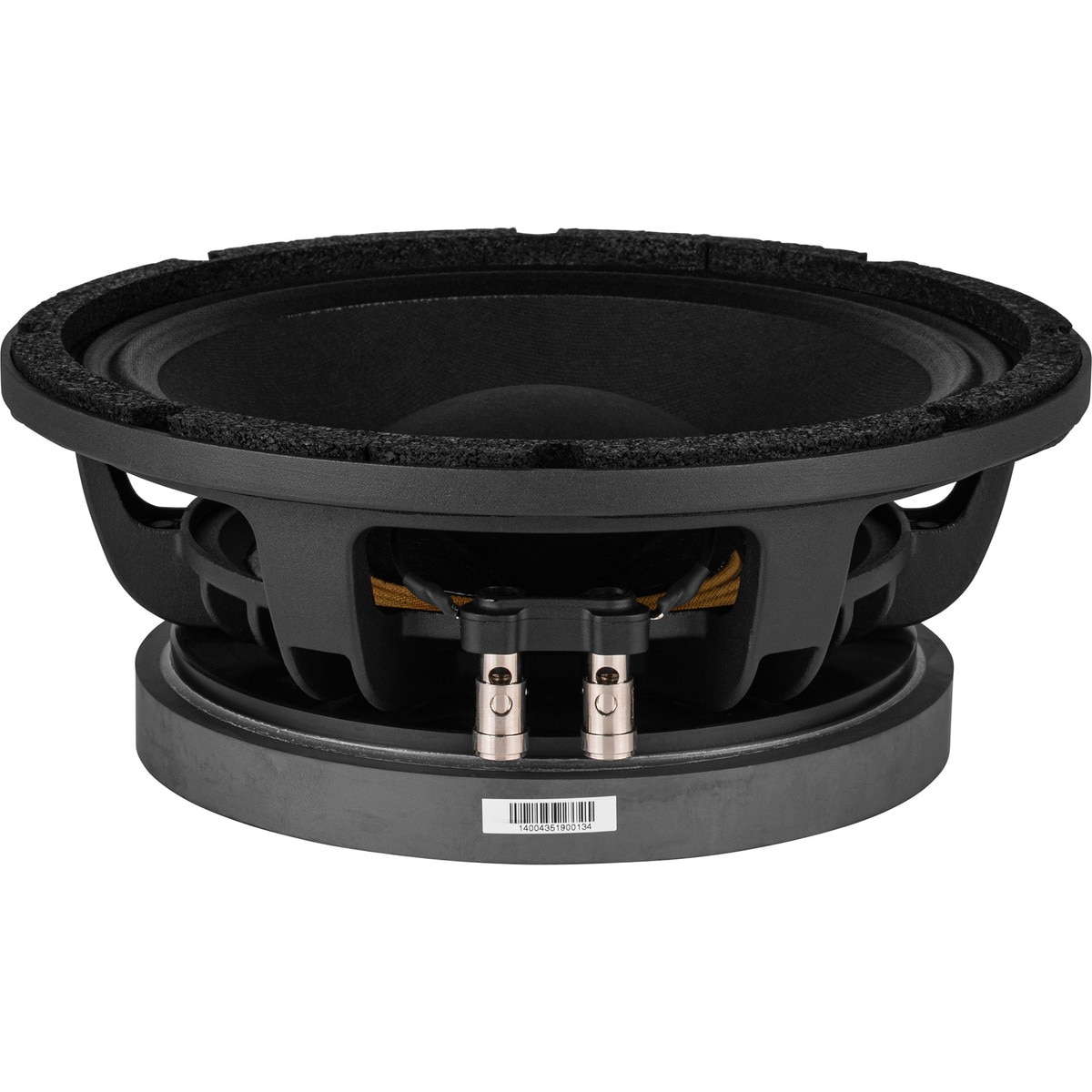

LaVoce MAF103.00 10" Professional Midrange Driver 8 Ohm

LaVoce . MAF103.00

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerLaVoce
DimensionUnitinch
Extra Product NameLaVoce MAF103.00 10" Professional Midrange Driver 8 Ohm
UPC848864061498
Weight16.95
WeightUnitlbs
depth, length7.87
diameter, height, width10.28
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPN, ModelMAF103.00
qtyInStockOnly 1 In Stock
SKU, Part Number293-750
snippetLaVoce MAF103.00 10" Professional Midrange Driver 8 Ohm. Part Number: 293-750 by LaVoce.
BrandLavoce
Unit of MeasureEach
Nominal Diameter10"
Bolt Circle Diameter9.69
Power Handling (RMS)350 Watts
Power Handling (MAX)700 Watts
Impedance8?
Frequency Response70 to 4,000Hz
Sensitivity99dB 2.83V/1m
Voice Coil Diameter3"
Resonant Frequency (Fs)83Hz
DC Resistance (Re)5.1?
Voice Coil Inductance (Le)0.78mH
Mechanical Q (Qms)5.6
Electromagnetic Q (Qes)0.25
Total Q (Qts)0.24
Compliance Equivalent Volume (Vas)0.54ft?
Mechanical Compliance of Suspension (Cms)0.1mm/N
BL Product (BL)20.89T?m
Diaphragm Mass Inc Airload (Mms)41g
Maximum Linear Excursion (Xmax)2.2mm
Surface Area of Cone (Sd)350cm?
Cone MaterialTreated Paper
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite
Overall Outside Diameter10.28"
Baffle Cutout Diameter9.12"
Depth7.87"
# Mounting Holes8
Vented Volume0.75ft?
Vented F372.2Hz

Distributor offers

SellerSKUMOQIn stockMultiplePrices
parts-express.com293-7501Only 1 In Stock1
