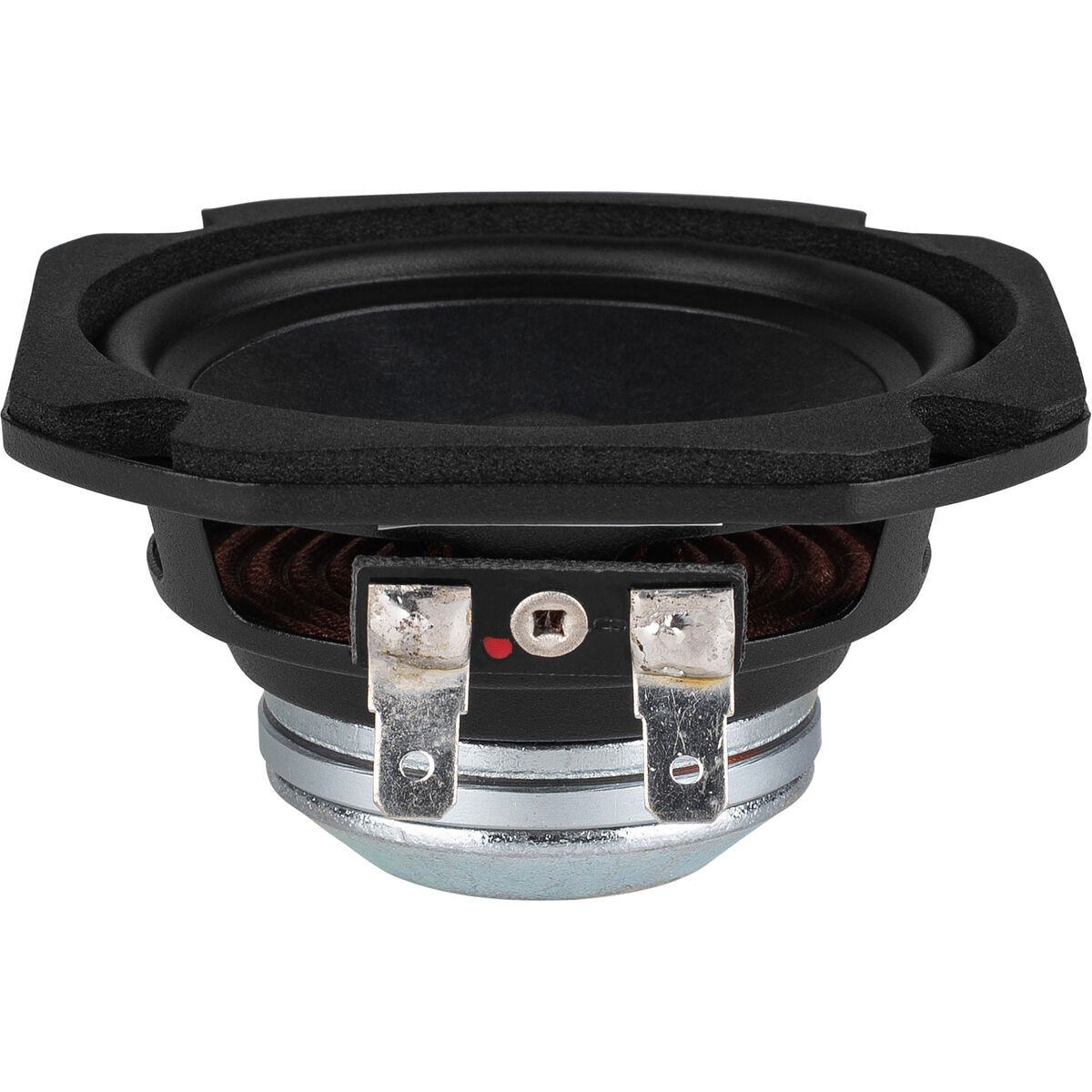

LaVoce FSN030.71 3" Neodymium Full-Range Woofer 8 Ohm

LaVoce . FSN030.71

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerLaVoce
DimensionUnitinch
Extra Product NameLaVoce FSN030.71 3" Neodymium Full-Range Woofer 8 Ohm
UPC848864057286
Weight0.55
WeightUnitlbs
depth, length1.77
diameter, height, width3.31
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPN, ModelFSN030.71
qtyInStock-2
qtySourceFieldMap
SKU, Part Number293-706
snippetLaVoce FSN030.71 3" Neodymium Full-Range Woofer 8 Ohm. Part Number: 293-706 by LaVoce.
BrandLavoce
Unit of MeasureEach
Nominal Diameter3"
Bolt Circle Diameter3.23
Power Handling (RMS)30 Watts
Power Handling (MAX)60 Watts
Impedance8?
Frequency Response120 to 21,000Hz
Sensitivity89dB 2.83V/1m
Voice Coil Diameter0.75"
Resonant Frequency (Fs)130Hz
DC Resistance (Re)6.4?
Voice Coil Inductance (Le)0.07mH
Mechanical Q (Qms)4.3
Electromagnetic Q (Qes)0.65
Total Q (Qts)0.56
Compliance Equivalent Volume (Vas), Sealed Volume0.04ft?
Mechanical Compliance of Suspension (Cms)0.79mm/N
BL Product (BL)3.9T?m
Diaphragm Mass Inc Airload (Mms)1.8g
Maximum Linear Excursion (Xmax)2.1mm
Surface Area of Cone (Sd)33.2cm?
Cone MaterialTreated Paper
Surround MaterialRubber
Voice Coil Wire MaterialCCA
Voice Coil FormerFiberglass
Basket / Frame MaterialSteel
Magnet MaterialNeodymium
Overall Outside Diameter3.31"
Baffle Cutout Diameter2.77"
Depth1.77"
# Mounting Holes4
Sealed F3184.3Hz
Vented Volume0.08ft?
Vented F3101.2Hz
