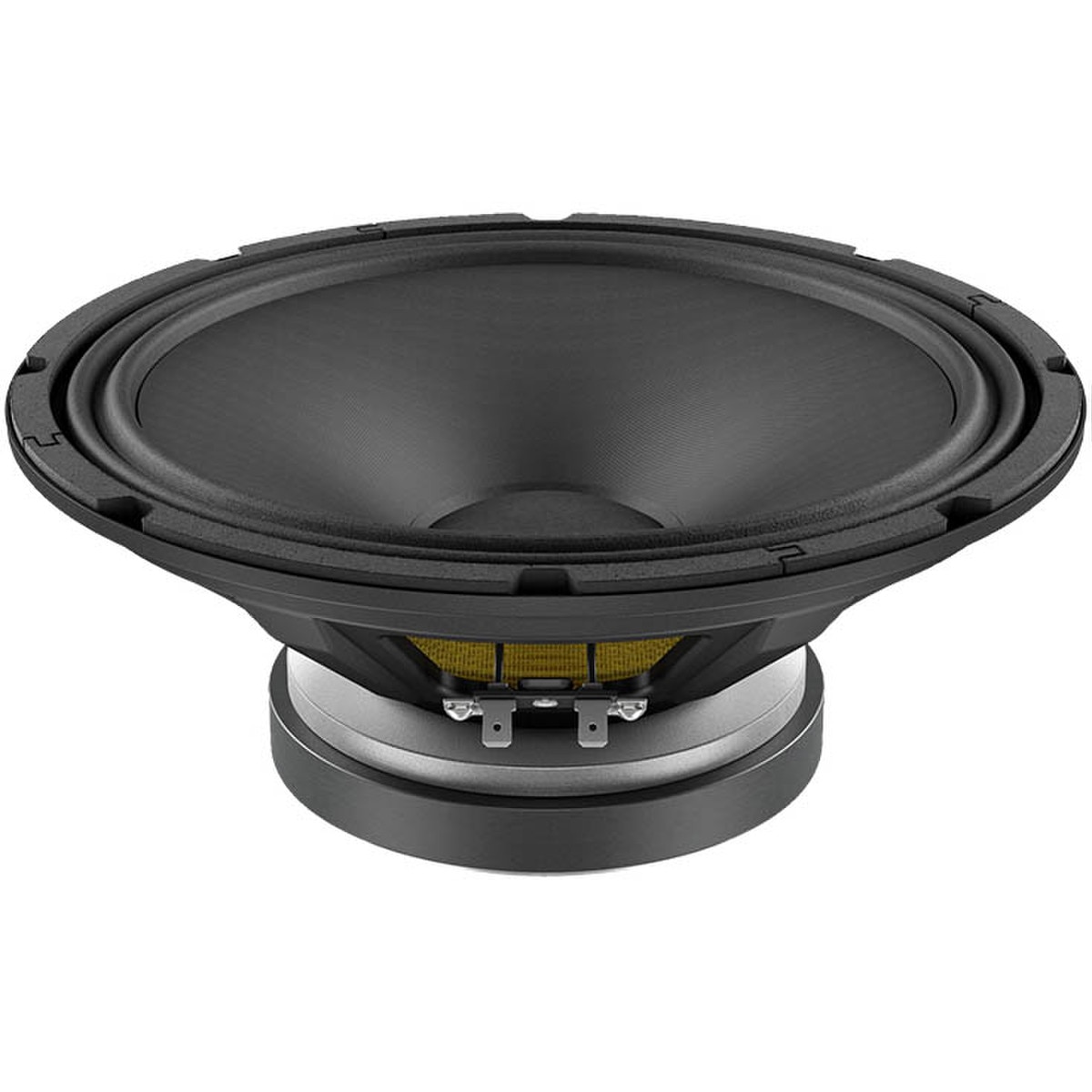

Lavoce WXF15.400 15" Woofer

Lavoce . WXF15.400

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandLavoce
DimensionUnitinch
Extra Product NameLavoce WXF15.400 15" Woofer
UPC848864072760
Weight21
WeightUnitlbs
depth, length6.15
diameter, height, width15.16
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPN, ModelWXF15.400
qtyInStock-2
qtySourceFieldMap
SKU, Part Number293-810
Unit of MeasureEach
Nominal Diameter15"
Power Handling (RMS)400 Watts
Power Handling (MAX)800 Watts
Impedance8?
Frequency Response50 to 3,000Hz
Sensitivity99.5dB 2.83V/1m
Voice Coil Diameter3"
Resonant Frequency (Fs)35Hz
DC Resistance (Re)5.6?
Voice Coil Inductance (Le)0.99mH
Mechanical Q (Qms)4.09
Electromagnetic Q (Qes)0.27
Total Q (Qts)0.26
Compliance Equivalent Volume (Vas)9.08ft?
Mechanical Compliance of Suspension (Cms)0.248mm/N
BL Product (BL)19.4T?m
Maximum Linear Excursion (Xmax)6.1mm
Surface Area of Cone (Sd)855.3cm?
Cone MaterialTreated Paper
Surround MaterialCloth
Voice Coil Wire MaterialCCA
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite
Overall Outside Diameter15.16"
Baffle Cutout Diameter13.94"
Depth6.15"
# Mounting Holes8
Sealed Volume1.75ft?
Sealed F3103.9Hz
Vented Volume4.25ft?
Vented F349.4Hz
