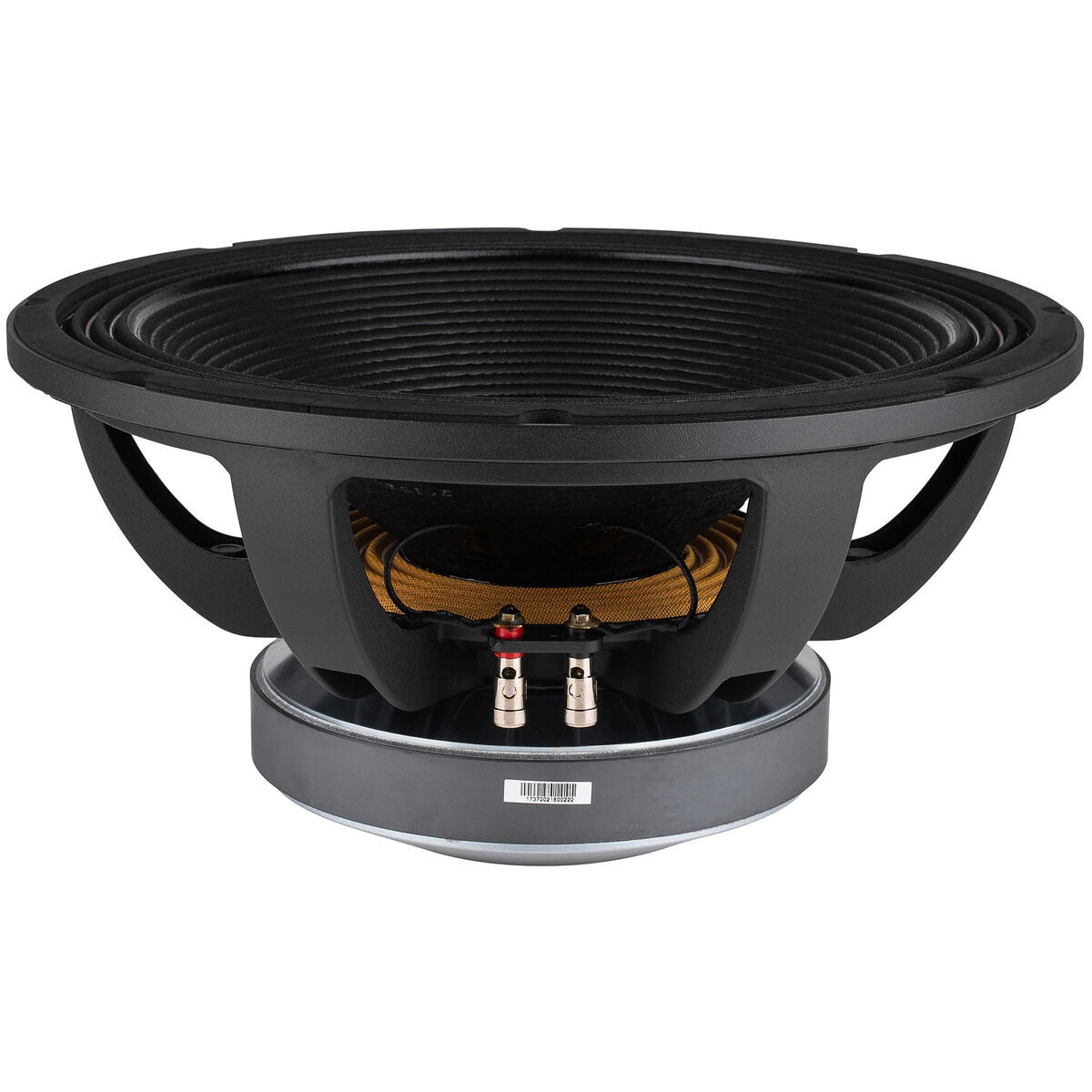

LaVoce WAF154.00 15" Subwoofer 8 Ohm

LaVoce . WAF154.00

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerLaVoce
DimensionUnitinch
Extra Product NameLaVoce WAF154.00 15" Subwoofer 8 Ohm
UPC848864057484
Weight39.65
WeightUnitlbs
depth, length7.73
diameter, height, width15.47
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPN, ModelWAF154.00
qtyInStock-2
qtySourceFieldMap
SKU, Part Number293-725
snippetLaVoce WAF154.00 15" Subwoofer 8 Ohm. Part Number: 293-725 by LaVoce.
BrandLavoce
Unit of MeasureEach
Nominal Diameter15"
Bolt Circle Diameter14.69
Power Handling (RMS)1500 Watts
Power Handling (MAX)3000 Watts
Impedance8?
Frequency Response40 to 1,000Hz
Sensitivity96dB 2.83V/1m
Voice Coil Diameter4"
Resonant Frequency (Fs)38Hz
DC Resistance (Re)5.8?
Voice Coil Inductance (Le)1.8mH
Mechanical Q (Qms)5.7
Electromagnetic Q (Qes)0.31
Total Q (Qts)0.29
Compliance Equivalent Volume (Vas)3.64ft?
Mechanical Compliance of Suspension (Cms)0.1mm/N
BL Product (BL)27.3T?m
Diaphragm Mass Inc Airload (Mms)167g
Maximum Linear Excursion (Xmax)12.1mm
Surface Area of Cone (Sd)830cm?
Cone MaterialTreated Paper
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite
Overall Outside Diameter15.47"
Baffle Cutout Diameter13.93"
Depth7.73"
# Mounting Holes8
Sealed Volume1.46ft?
Sealed F370.7Hz
Vented Volume3.25ft?
Vented F341.8Hz
