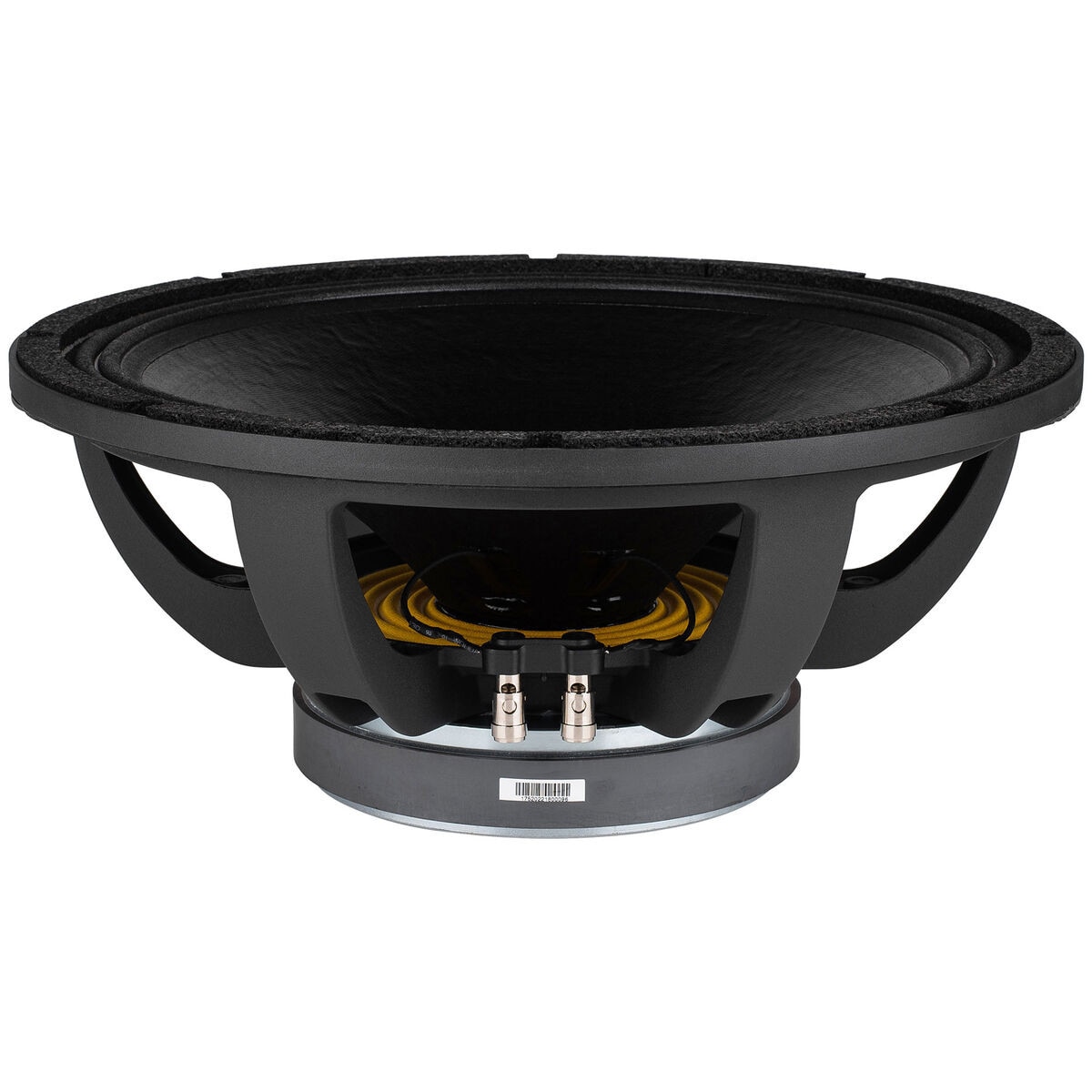

LaVoce WAF153.00 15" Ferrite Woofer 8 Ohm

LaVoce . WAF153.00

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerLaVoce
DimensionUnitinch
Extra Product NameLaVoce WAF153.00 15" Ferrite Woofer 8 Ohm
UPC848864057422
Weight25.25
WeightUnitlbs
depth, length6.87
diameter, height, width15.47
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPN, ModelWAF153.00
qtyInStockOnly 4 In Stock
SKU, Part Number293-720
snippetLaVoce WAF153.00 15" Ferrite Woofer 8 Ohm. Part Number: 293-720 by LaVoce.
BrandLavoce
Unit of MeasureEach
Nominal Diameter15"
Bolt Circle Diameter14.69
Power Handling (RMS)500 Watts
Power Handling (MAX)1000 Watts
Impedance8?
Frequency Response40 to 3,000Hz
Sensitivity99dB 2.83V/1m
Voice Coil Diameter3"
Resonant Frequency (Fs)43Hz
DC Resistance (Re)4.7?
Voice Coil Inductance (Le)0.9mH
Mechanical Q (Qms)9
Electromagnetic Q (Qes)0.39
Total Q (Qts)0.37
Compliance Equivalent Volume (Vas)5.16ft?
Mechanical Compliance of Suspension (Cms)0.14mm/N
BL Product (BL)17.8T?m
Diaphragm Mass Inc Airload (Mms)99g
Maximum Linear Excursion (Xmax)7mm
Surface Area of Cone (Sd)855cm?
Cone MaterialTreated Paper
Surround MaterialCloth
Voice Coil Wire MaterialCCA
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite
Overall Outside Diameter15.47"
Baffle Cutout Diameter13.93"
Depth6.87"
# Mounting Holes8
Sealed Volume1.75ft?
Sealed F368Hz
Vented Volume3.5ft?
Vented F350.4Hz
