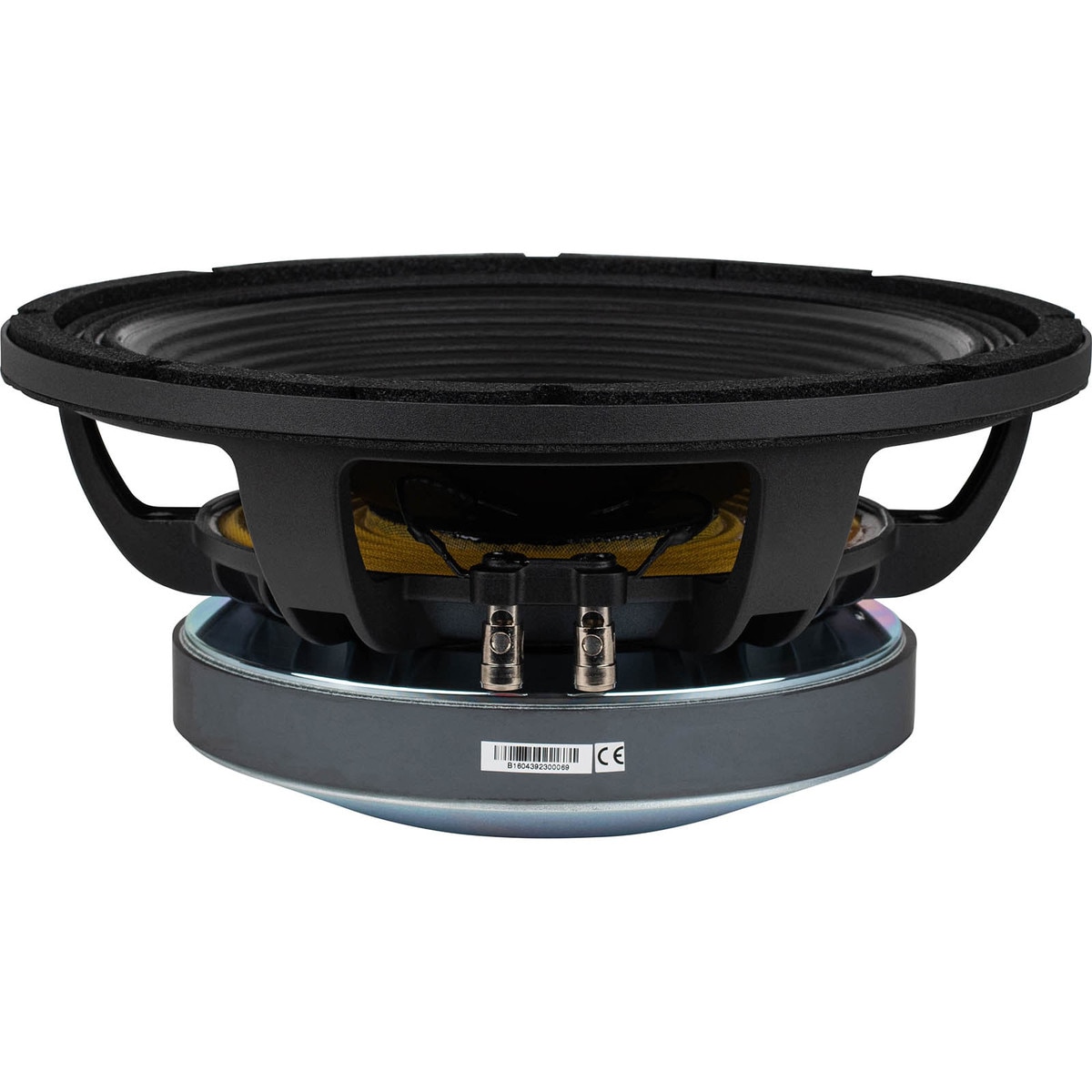

Lavoce WAF124.01 12" Woofer

Lavoce . WAF124.01

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandLavoce
DimensionUnitinch
Extra Product NameLavoce WAF124.01 12" Woofer
UPC848864072777
Weight29.35
WeightUnitlbs
depth, length5.49
diameter, height, width12.4
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPN, ModelWAF124.01
qtyInStock-2
qtySourceFieldMap
SKU, Part Number293-812
Unit of MeasureEach
Nominal Diameter12"
Power Handling (RMS)1000 Watts
Power Handling (MAX)2000 Watts
Impedance8?
Frequency Response40 to 1,000Hz
Sensitivity96.5dB 2.83V/1m
Voice Coil Diameter4"
Resonant Frequency (Fs)42Hz
DC Resistance (Re)5.1?
Voice Coil Inductance (Le)1.58mH
Mechanical Q (Qms)5.72
Electromagnetic Q (Qes), Total Q (Qts)0.22
Compliance Equivalent Volume (Vas)1.88ft?
Mechanical Compliance of Suspension (Cms)0.129mm/N
BL Product (BL)25.62T?m
Maximum Linear Excursion (Xmax)9mm
Surface Area of Cone (Sd)540cm?
Cone MaterialTreated Paper
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite
Overall Outside Diameter12.40"
Baffle Cutout Diameter11.28"
Depth5.49"
# Mounting Holes8
Vented Volume1.625ft?
Vented F347.9Hz
