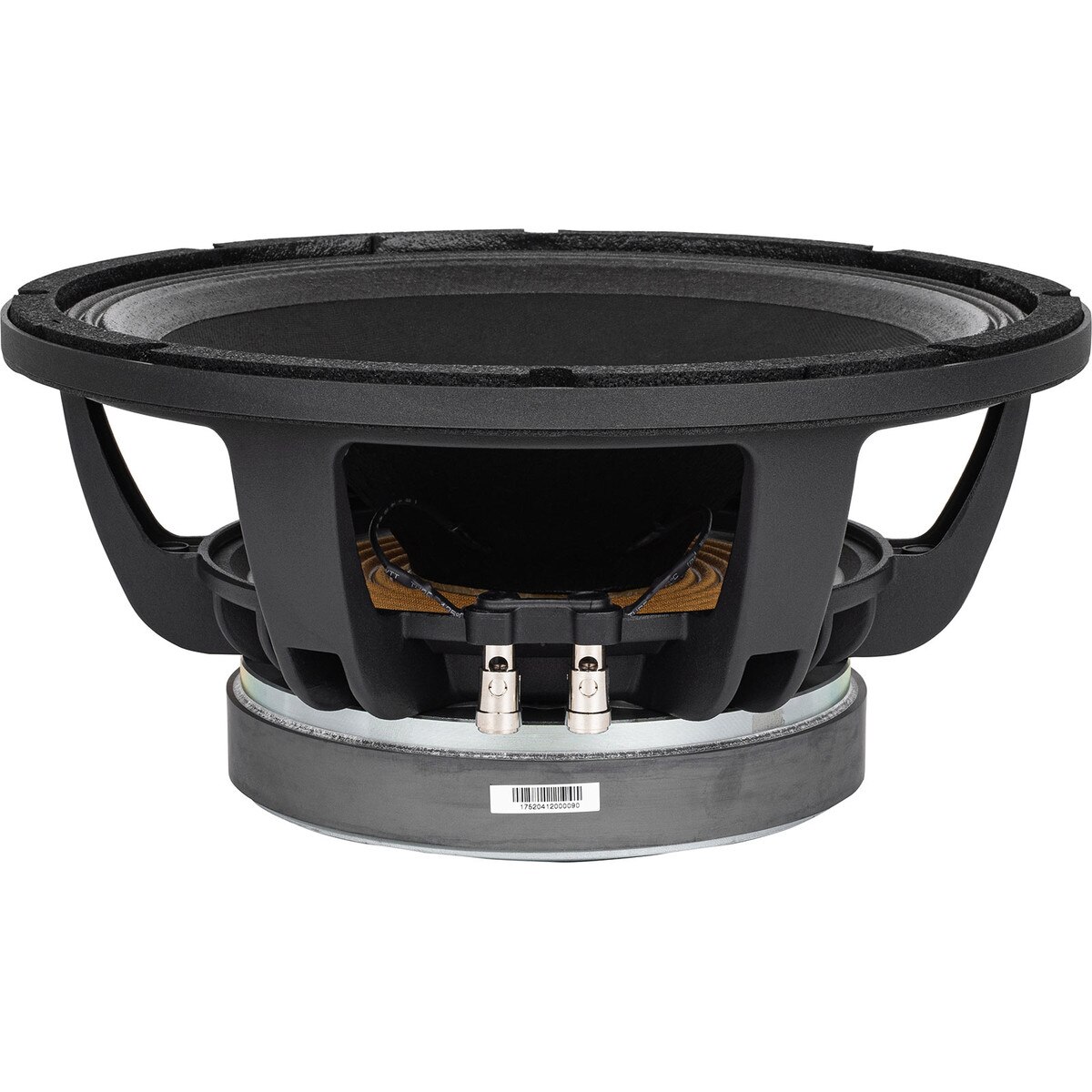

LaVoce WAF123.03 12" Ferrite Professional Woofer 8 Ohm

LaVoce . WAF123.03

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerLaVoce
DimensionUnitinch
Extra Product NameLaVoce WAF123.03 12" Ferrite Professional Woofer 8 Ohm
UPC848864066967
Weight22.75
WeightUnitlbs
depth, length6.13
diameter, height, width12.4
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPN, ModelWAF123.03
qtyInStock0
SKU, Part Number293-764
snippetLaVoce WAF123.03 12" Ferrite Professional Woofer 8 Ohm. Part Number: 293-764 by LaVoce.
BrandLavoce
Unit of MeasureEach
Nominal Diameter12"
Bolt Circle Diameter11.73
Power Handling (RMS)500 Watts
Power Handling (MAX)1000 Watts
Impedance8?
Frequency Response50 to 3,000Hz
Sensitivity99dB 2.83V/1m
Voice Coil Diameter3"
Resonant Frequency (Fs)50Hz
DC Resistance (Re)4.6?
Voice Coil Inductance (Le)0.9mH
Mechanical Q (Qms)6.6
Electromagnetic Q (Qes)0.3
Total Q (Qts)0.29
Compliance Equivalent Volume (Vas)2.47ft?
Mechanical Compliance of Suspension (Cms)0.154mm/N
BL Product (BL)17.8T?m
Diaphragm Mass Inc Airload (Mms)66g
Maximum Linear Excursion (Xmax)9.8mm
Surface Area of Cone (Sd)556cm?
Cone MaterialPaper-Treated Paper
Surround MaterialCloth
Voice Coil Wire MaterialCCA
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite
Overall Outside Diameter12.4"
Baffle Cutout Diameter11.28"
Depth6.13"
# Mounting Holes8
Vented Volume1.5ft?
Vented F366.6Hz
