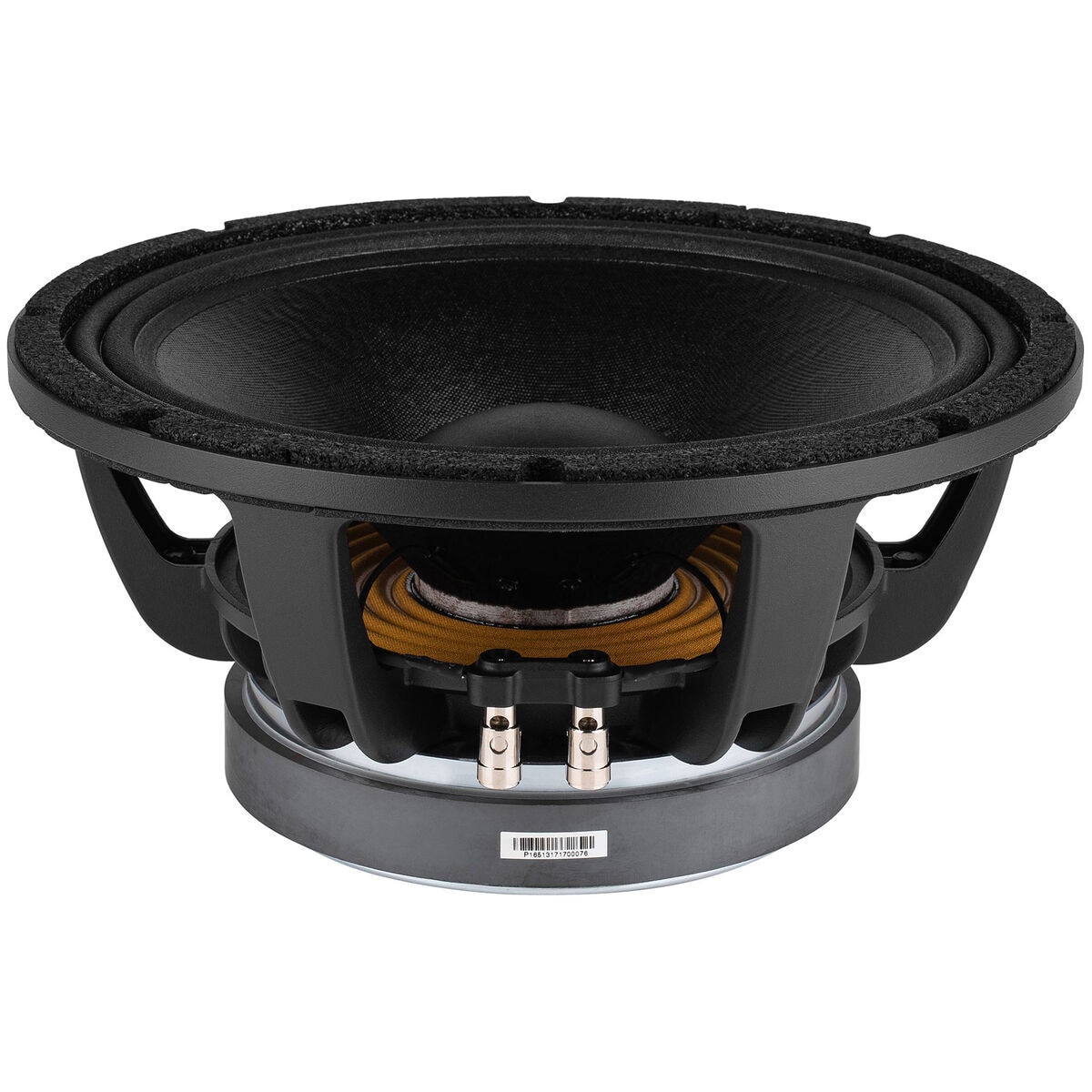

LaVoce WAF123.01 12" Ferrite Woofer 8 Ohm

LaVoce . WAF123.01

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerLaVoce
DimensionUnitinch
Extra Product NameLaVoce WAF123.01 12" Ferrite Woofer 8 Ohm
UPC848864057408
Weight22.45
WeightUnitlbs
depth, length6.14
diameter, height, width12.4
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPN, ModelWAF123.01
qtyInStockOnly 3 In Stock
SKU, Part Number293-718
snippetLaVoce WAF123.01 12" Ferrite Woofer 8 Ohm. Part Number: 293-718 by LaVoce.
BrandLavoce
Unit of MeasureEach
Nominal Diameter12"
Bolt Circle Diameter11.73
Power Handling (RMS)500 Watts
Power Handling (MAX)1000 Watts
Impedance8?
Frequency Response65 to 3,000Hz
Sensitivity98dB 2.83V/1m
Voice Coil Diameter3"
Resonant Frequency (Fs)65Hz
DC Resistance (Re)4.8?
Voice Coil Inductance (Le)0.74mH
Mechanical Q (Qms)6.3
Electromagnetic Q (Qes)0.42
Total Q (Qts)0.39
Compliance Equivalent Volume (Vas)1.48ft?
Mechanical Compliance of Suspension (Cms)0.1mm/N
BL Product (BL)17T?m
Diaphragm Mass Inc Airload (Mms)63g
Maximum Linear Excursion (Xmax)7.5mm
Surface Area of Cone (Sd)531cm?
Cone MaterialTreated Paper
Surround MaterialCloth
Voice Coil Wire MaterialCCA
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite
Overall Outside Diameter12.40"
Baffle Cutout Diameter11.28"
Depth6.14"
# Mounting Holes8
Sealed Volume0.79ft?
Sealed F393.7Hz
Vented Volume1.5ft?
Vented F364Hz
