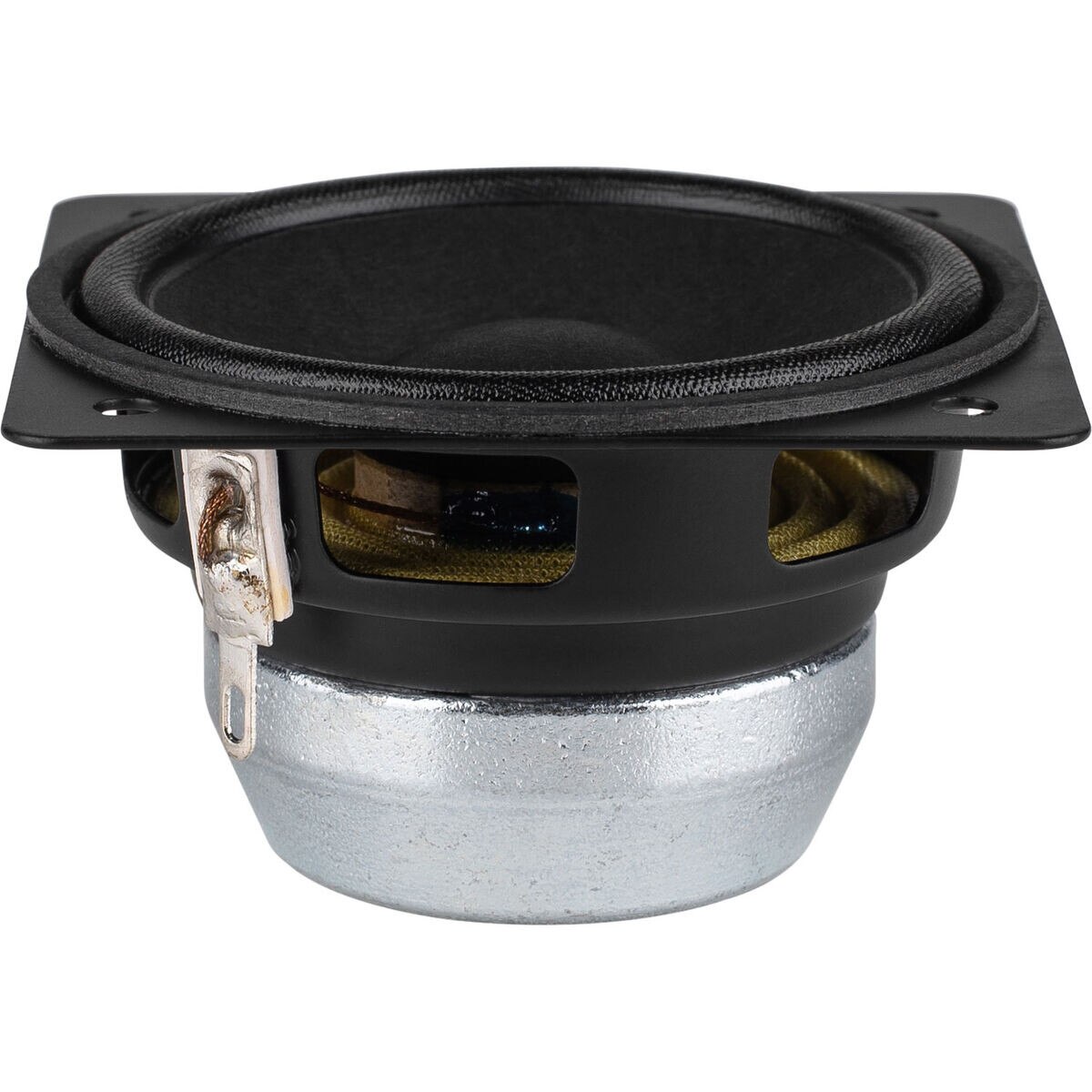

LaVoce FSN020.71F 2" Neodymium Full-Range Woofer 8 Ohm

LaVoce . FSN020.71F

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerLaVoce
DimensionUnitinch
Extra Product NameLaVoce FSN020.71F 2" Neodymium Full-Range Woofer 8 Ohm
UPC848864057248
Weight0.4
WeightUnitlbs
depth, length1.38
diameter, height, width2.52
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPN, ModelFSN020.71F
qtyInStock2
SKU, Part Number293-702
snippetLaVoce FSN020.71F 2" Neodymium Full-Range Woofer 8 Ohm. Part Number: 293-702 by LaVoce.
BrandLavoce
Unit of MeasureEach
Nominal Diameter2"
Bolt Circle Diameter2.3
Power Handling (RMS)15 Watts
Power Handling (MAX)30 Watts
Impedance8?
Frequency Response200 to 20,000Hz
Sensitivity87dB 2.83V/1m
Voice Coil Diameter0.75"
Resonant Frequency (Fs)212Hz
DC Resistance (Re)6.4?
Voice Coil Inductance (Le)0.06mH
Mechanical Q (Qms)6.3
Electromagnetic Q (Qes)0.94
Total Q (Qts)0.82
Compliance Equivalent Volume (Vas)0.01ft?
Mechanical Compliance of Suspension (Cms)0.48mm/N
BL Product (BL)3.2T?m
Maximum Linear Excursion (Xmax)2.4mm
Surface Area of Cone (Sd)17.4cm?
Cone MaterialTreated Paper
Surround MaterialCloth
Voice Coil Wire MaterialCCA
Voice Coil FormerKapton? / Polyimide
Basket / Frame MaterialSteel
Magnet MaterialNeodymium
Overall Outside Diameter2.52"
Baffle Cutout Diameter2.02"
Depth1.38"
# Mounting Holes4
Sealed Volume1.63ft?
Sealed F3233.4Hz
Vented Volume4.03ft?
Vented F3112.9Hz
