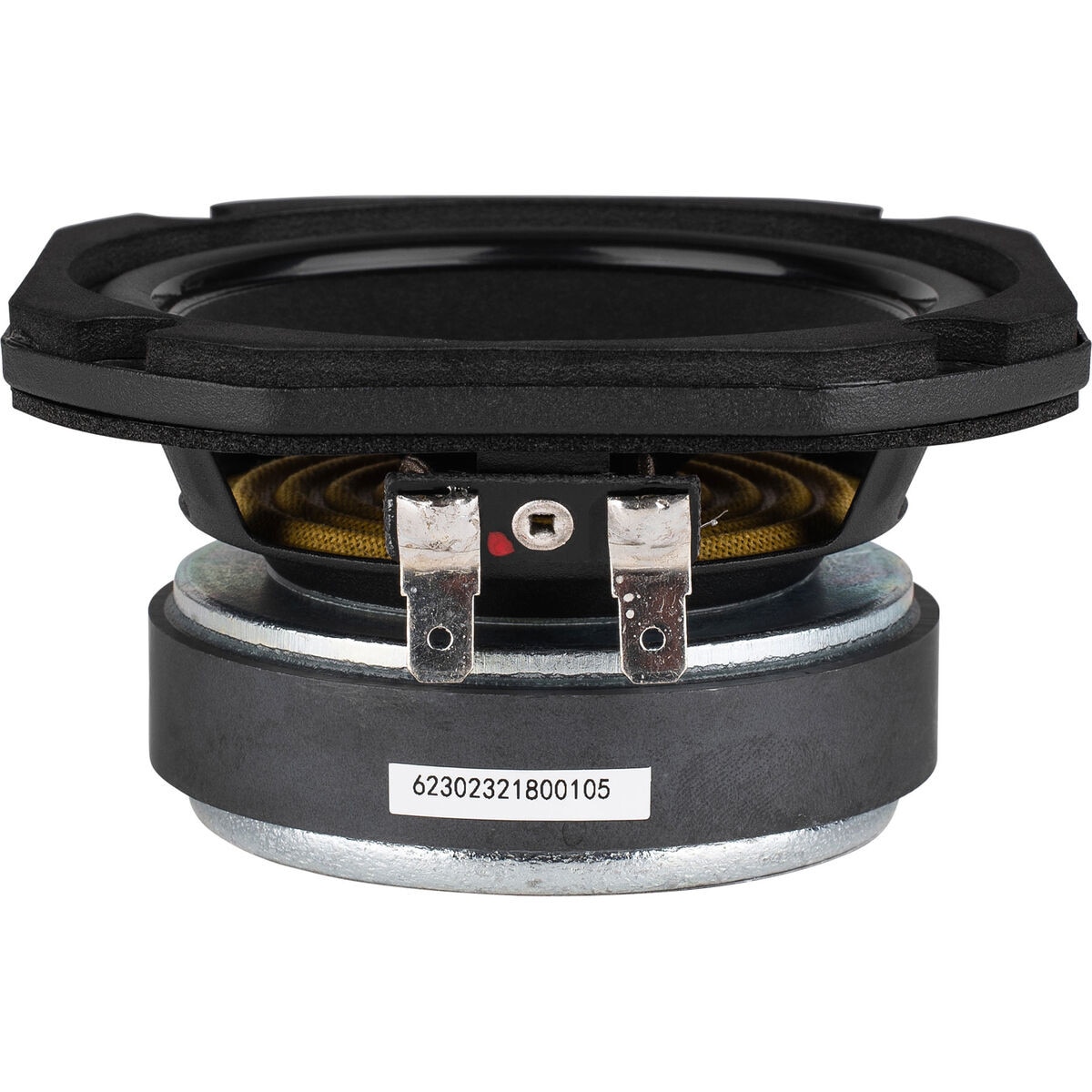

LaVoce FSF041.00 4" Ferrite Full-Range Woofer 8 Ohm

LaVoce . FSF041.00

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerLaVoce
DimensionUnitinch
Extra Product NameLaVoce FSF041.00 4" Ferrite Full-Range Woofer 8 Ohm
UPC848864057316
Weight1.8
WeightUnitlbs
depth, length2.13
diameter, height, width4.17
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPN, ModelFSF041.00
qtyInStock-2
qtySourceFieldMap
SKU, Part Number293-709
snippetLaVoce FSF041.00 4" Ferrite Full-Range Woofer 8 Ohm. Part Number: 293-709 by LaVoce.
BrandLavoce
Unit of MeasureEach
Nominal Diameter4"
Bolt Circle Diameter4.09
Power Handling (RMS)40 Watts
Power Handling (MAX)80 Watts
Impedance8?
Frequency Response110 to 18,000Hz
Sensitivity89dB 2.83V/1m
Voice Coil Diameter1"
Resonant Frequency (Fs)110Hz
DC Resistance (Re)5.6?
Voice Coil Inductance (Le)0.06mH
Mechanical Q (Qms)5.9
Electromagnetic Q (Qes)0.77
Total Q (Qts)0.68
Compliance Equivalent Volume (Vas)0.07ft?
Mechanical Compliance of Suspension (Cms)0.51mm/N
BL Product (BL)4.5T?m
Diaphragm Mass Inc Airload (Mms)4.1g
Maximum Linear Excursion (Xmax)2.2mm
Surface Area of Cone (Sd)54cm?
Cone MaterialTreated Paper
Surround MaterialRubber
Voice Coil Wire MaterialCCA
Voice Coil FormerKapton? / Polyimide
Basket / Frame MaterialSteel
Magnet MaterialFerrite
Overall Outside Diameter4.17"
Baffle Cutout Diameter3.68"
Depth2.13"
# Mounting Holes4
Sealed Volume0.1ft?
Sealed F3131.3Hz
Vented Volume0.21ft?
Vented F385.7Hz
