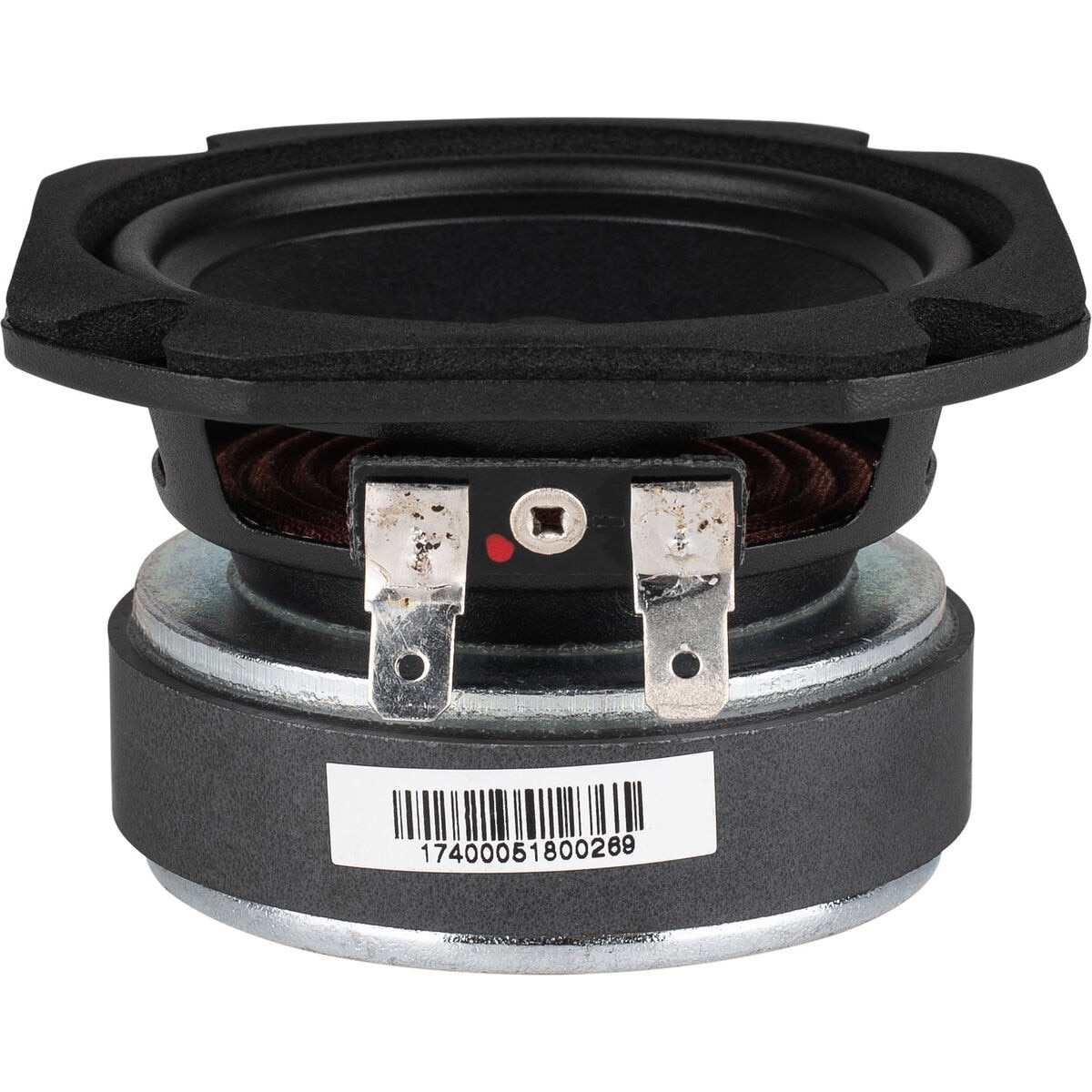

LaVoce FSF030.70 3" Ferrite Full-Range Woofer 8 Ohm

LaVoce . FSF030.70

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerLaVoce
DimensionUnitinch
Extra Product NameLaVoce FSF030.70 3" Ferrite Full-Range Woofer 8 Ohm
UPC848864057279
Weight1.25
WeightUnitlbs
depth, length2.03
diameter, height, width3.31
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPN, ModelFSF030.70
qtyInStock-2
qtySourceFieldMap
SKU, Part Number293-705
snippetLaVoce FSF030.70 3" Ferrite Full-Range Woofer 8 Ohm. Part Number: 293-705 by LaVoce.
BrandLavoce
Unit of MeasureEach
Nominal Diameter3"
Bolt Circle Diameter3.23
Power Handling (RMS)30 Watts
Power Handling (MAX)60 Watts
Impedance8?
Frequency Response120 to 21,000Hz
Sensitivity87.5dB 2.83V/1m
Voice Coil Diameter0.75"
Resonant Frequency (Fs)114Hz
DC Resistance (Re)6.4?
Voice Coil Inductance (Le)0.05mH
Mechanical Q (Qms)4.6
Electromagnetic Q (Qes)0.85
Total Q (Qts)0.72
Compliance Equivalent Volume (Vas)0.05ft?
Mechanical Compliance of Suspension (Cms)0.9mm/N
BL Product (BL)3.3T?m
Diaphragm Mass Inc Airload (Mms)2g
Maximum Linear Excursion (Xmax)2.1mm
Surface Area of Cone (Sd)33.2cm?
Cone MaterialTreated Paper
Surround MaterialRubber
Voice Coil Wire MaterialCCA
Voice Coil FormerFiberglass
Basket / Frame MaterialSteel
Magnet MaterialFerrite
Overall Outside Diameter3.31"
Baffle Cutout Diameter2.77"
Depth2.03"
# Mounting Holes4
Sealed Volume0.06ft?
Sealed F3132.9Hz
Vented Volume0.12ft?
Vented F389.2Hz
