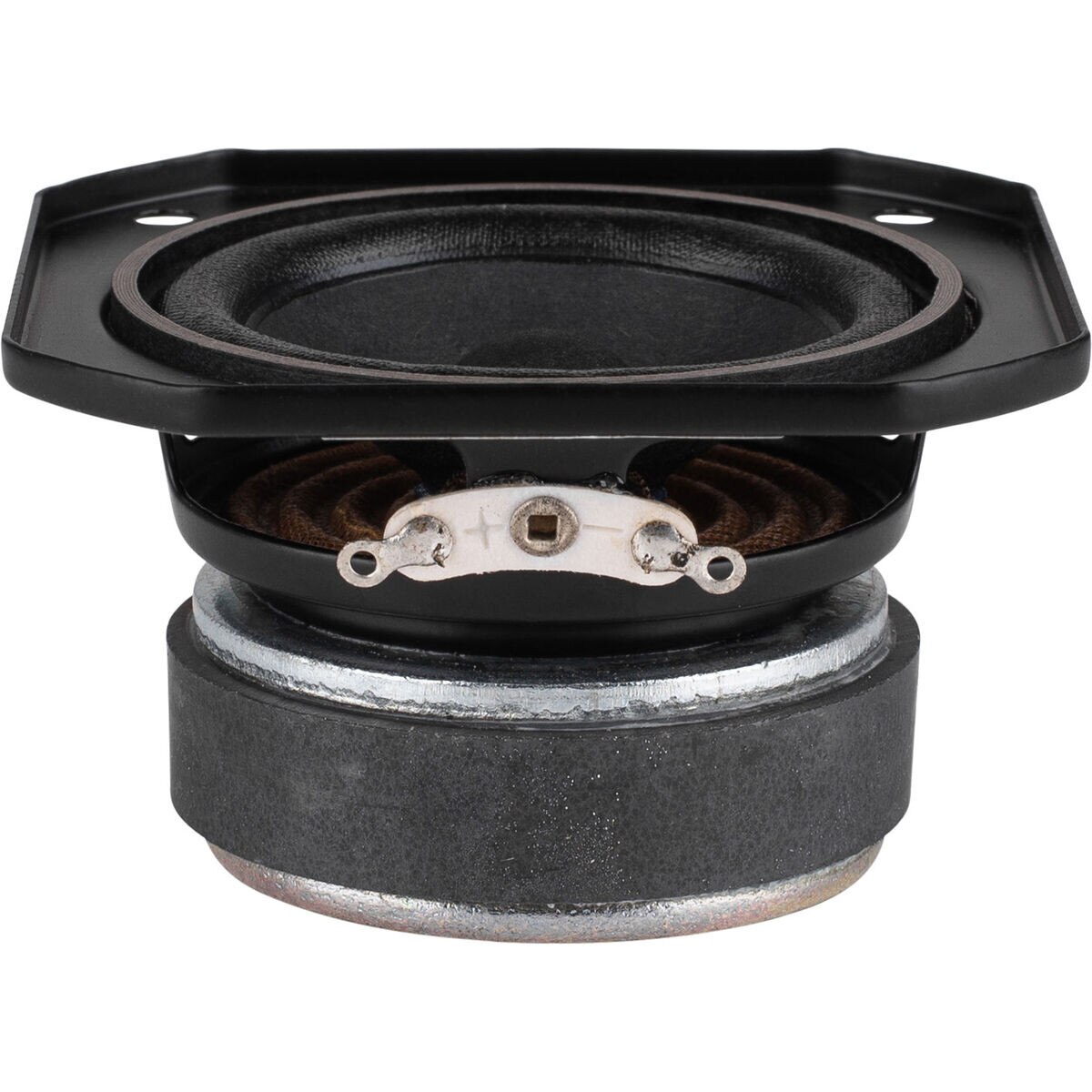

LaVoce FSF020.50 2" Ferrite Full-Range Woofer 8 Ohm

LaVoce . FSF020.50

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerLaVoce
DimensionUnitinch
Extra Product NameLaVoce FSF020.50 2" Ferrite Full-Range Woofer 8 Ohm
Weight0.4
WeightUnitlbs
depth, length1.39
diameter, height, width2.4
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPN, ModelFSF020.50
qtyInStock0
SKU, Part Number293-700
snippetLaVoce FSF020.50 2" Ferrite Full-Range Woofer 8 Ohm. Part Number: 293-700 by LaVoce.
BrandLavoce
Unit of MeasureEach
Nominal Diameter2"
Bolt Circle Diameter2.52
Power Handling (RMS)10 Watts
Power Handling (MAX)20 Watts
Impedance8?
Frequency Response200 to 20,000Hz
Sensitivity84.5dB 2.83V/1m
Voice Coil Diameter0.5"
Resonant Frequency (Fs)200Hz
DC Resistance (Re)7.5?
Voice Coil Inductance (Le)0.1mH
Mechanical Q (Qms)3.8
Electromagnetic Q (Qes)1.15
Total Q (Qts)0.88
Compliance Equivalent Volume (Vas)0.01ft?
Mechanical Compliance of Suspension (Cms)1.18mm/N
BL Product (BL)2.1T?m
Maximum Linear Excursion (Xmax)1mm
Surface Area of Cone (Sd)13cm?
Cone MaterialTreated Paper
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerKapton? / Polyimide
Basket / Frame MaterialSteel
Magnet MaterialFerrite
Overall Outside Diameter2.40"
Baffle Cutout Diameter2.04"
Depth1.39"
# Mounting Holes4
Sealed Volume0.015ft?
Sealed F3212.6Hz
Vented Volume0.047ft?
Vented F3120Hz
