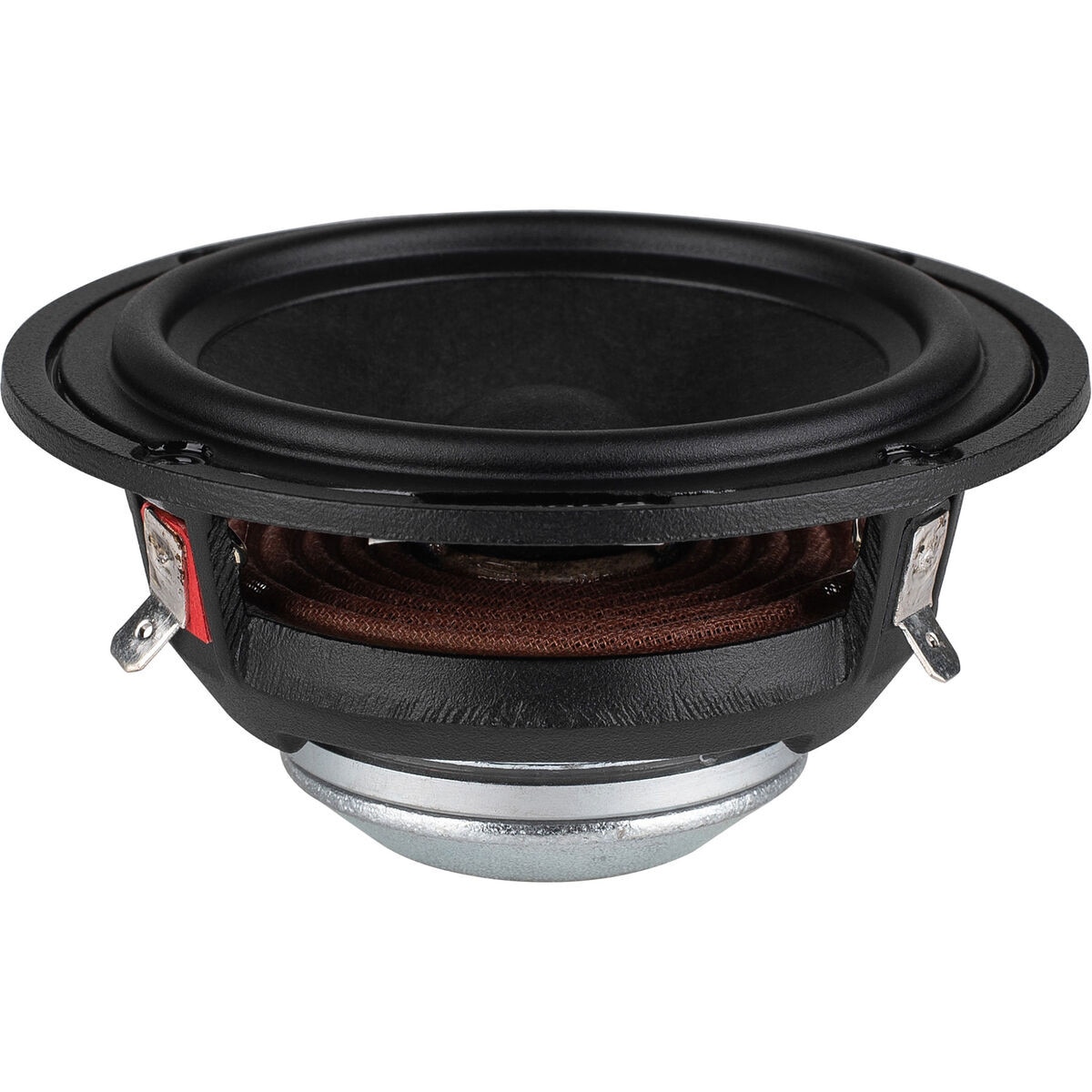

LaVoce FAN030.71 3" Neodymium Full-Range Woofer 8 Ohm

LaVoce . FAN030.71

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerLaVoce
DimensionUnitinch
Extra Product NameLaVoce FAN030.71 3" Neodymium Full-Range Woofer 8 Ohm
UPC848864057309
Weight, Electromagnetic Q (Qes)0.6
WeightUnitlbs
depth, length1.74
diameter, height, width3.46
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPN, ModelFAN030.71
qtyInStock-2
qtySourceFieldMap
SKU, Part Number293-708
snippetLaVoce FAN030.71 3" Neodymium Full-Range Woofer 8 Ohm. Part Number: 293-708 by LaVoce.
BrandLavoce
Unit of MeasureEach
Nominal Diameter3"
Bolt Circle Diameter3.15
Power Handling (RMS)30 Watts
Power Handling (MAX)60 Watts
Impedance8?
Frequency Response120 to 21,000Hz
Sensitivity89.5dB 2.83V/1m
Voice Coil Diameter0.75"
Resonant Frequency (Fs)120Hz
DC Resistance (Re)6.3?
Voice Coil Inductance (Le)0.07mH
Mechanical Q (Qms)4.4
Total Q (Qts)0.5
Compliance Equivalent Volume (Vas)0.05ft?
Mechanical Compliance of Suspension (Cms)0.8mm/N
BL Product (BL)4T?m
Diaphragm Mass Inc Airload (Mms)2g
Maximum Linear Excursion (Xmax)2.1mm
Surface Area of Cone (Sd)33.2cm?
Cone MaterialTreated Paper
Surround MaterialRubber
Voice Coil Wire MaterialCCA
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum
Magnet MaterialNeodymium
Overall Outside Diameter3.46"
Baffle Cutout Diameter2.87"
Depth1.74"
# Mounting Holes4
Sealed Volume0.03ft?
Sealed F3191.2Hz
Vented Volume0.08ft?
Vented F3103.2Hz
