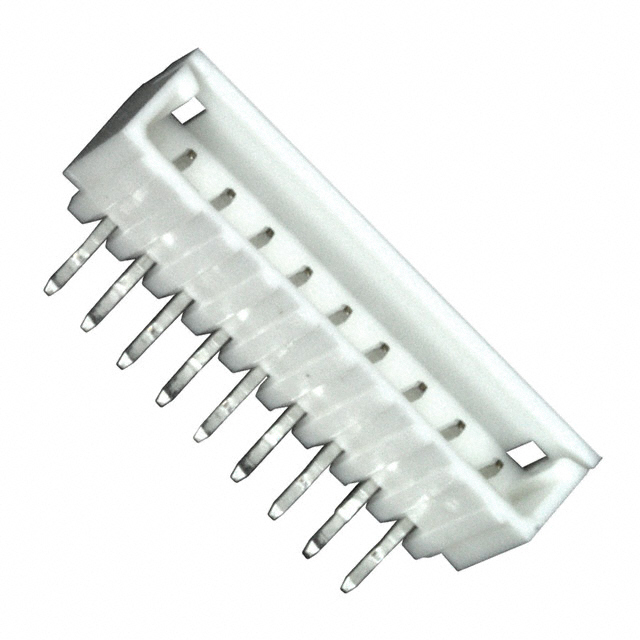

0533250960 Molex | Connectors, Interconnects | DigiKey

Molex . 0533250960

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, MfrMolex
Extra Product Name0533250960 Molex | Connectors, Interconnects | DigiKey
atoms, minimum, moq, multiple, qtyInStock, Number of Rows1
MPN0533250960
SKU23-0533250960-ND
Part StatusObsolete
Connector TypeHeader
Contact TypeMale Pin
Pitch - Mating0.079" (2.00mm)
Number of Positions9
Row Spacing - Mating, Overall Contact Length, Contact Finish Thickness - Mating, Features, Operating Temperature, Ingress Protection, Current Rating (Amps), Voltage Rating, Mated Stacking Heights, Contact Finish Thickness - Post, Applications-
Number of Positions LoadedAll
StyleBoard to Cable/Wire
ShroudingShrouded - 4 Wall
Mounting TypeThrough Hole, Right Angle
TerminationKinked Pin, Solder
Fastening TypeDetent Lock
Contact Length - Mating0.136" (3.45mm)
Contact Length - Post0.138" (3.50mm)
Insulation Height0.191" (4.85mm)
Contact ShapeSquare
Contact Finish - Mating, Contact Finish - PostTin
Contact MaterialBrass
Insulation MaterialPolybutylene Terephthalate (PBT), Glass Filled
Material Flammability RatingUL94 V-0
Insulation ColorNatural

Distributor offers

SellerSKUMOQIn stockMultiplePrices
Digi-Key23-0533250960-ND111
Digi-Key163293711
