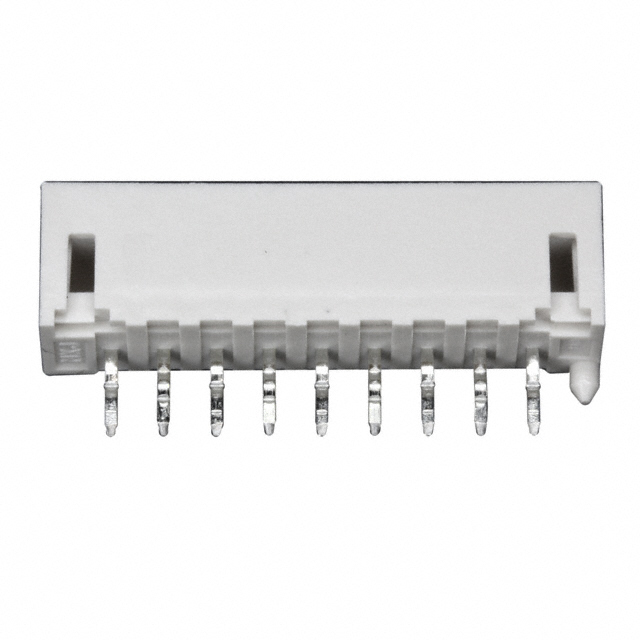

Molex . 0533240960

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, MfrMolex
Extra Product Name0533240960 Molex | Connectors, Interconnects | DigiKey
atoms, minimum, moq, multiple, Number of Rows1
MPN0533240960
qtyInStock0
SKU23-0533240960-ND
Part StatusObsolete
Connector TypeHeader
Contact TypeMale Pin
Pitch - Mating0.079" (2.00mm)
Number of Positions9
Row Spacing - Mating, Overall Contact Length, Contact Finish Thickness - Mating, Operating Temperature, Ingress Protection, Current Rating (Amps), Voltage Rating, Mated Stacking Heights, Contact Finish Thickness - Post, Applications-
Number of Positions LoadedAll
StyleBoard to Cable/Wire
ShroudingShrouded - 4 Wall
Mounting TypeThrough Hole
TerminationKinked Pin, Solder
Fastening TypeDetent Lock
Contact Length - Mating0.136" (3.45mm)
Contact Length - Post0.138" (3.50mm)
Insulation Height0.236" (6.00mm)
Contact ShapeSquare
Contact Finish - Mating, Contact Finish - PostTin
Contact MaterialBrass
Insulation MaterialPolyamide (PA66), Nylon 6/6, Glass Filled
FeaturesBoard Guide
Material Flammability RatingUL94 V-0
Insulation ColorNatural

Distributor offers

SellerSKUMOQIn stockMultiplePrices
Digi-Key23-0533240960-ND11
Digi-Key163292311
