0532611190 Molex | Connectors, Interconnects | DigiKey

Molex . 0532611190

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, MfrMolex
Extra Product Name0532611190 Molex | Connectors, Interconnects | DigiKey
atoms, minimum, moq, multiple, Number of Rows1
MPN0532611190
qtyInStock0
SKU900-0532611190TR-ND
Part StatusObsolete

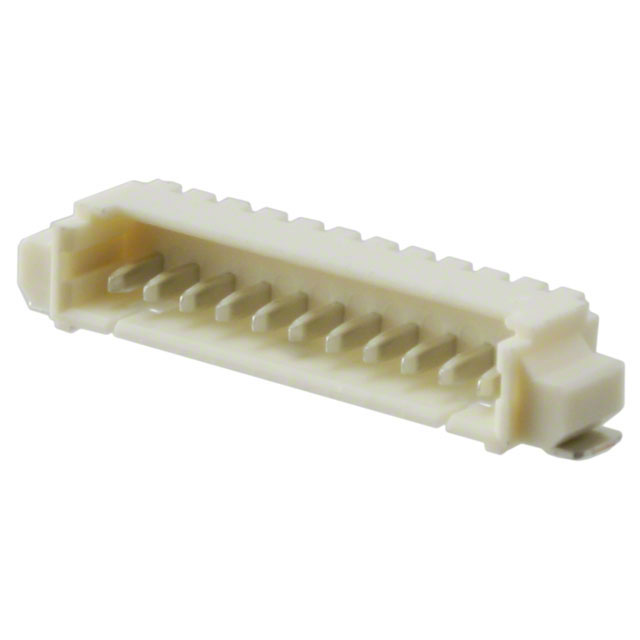

Connector TypeHeader
Contact TypeMale Blade
Pitch - Mating0.049" (1.25mm)
Number of Positions11
Row Spacing - Mating, Contact Length - Mating, Contact Length - Post, Overall Contact Length, Contact Finish - Post, Operating Temperature, Ingress Protection, Current Rating (Amps), Voltage Rating, Mated Stacking Heights, Contact Finish Thickness - Post-
Number of Positions LoadedAll
StyleBoard to Cable/Wire
ShroudingShrouded - 4 Wall
Mounting TypeSurface Mount, Right Angle
TerminationSolder
Fastening TypeDetent Lock
Insulation Height0.134" (3.40mm)
Contact ShapeRectangular
Contact Finish - MatingTin-Lead
Contact Finish Thickness - Mating39.4?in (1.00?m)
Contact MaterialPhosphor Bronze
Insulation MaterialPolyamide (PA46), Nylon 4/6
FeaturesSolder Retention
Material Flammability RatingUL94 V-0
Insulation ColorNatural
ApplicationsAutomotive, General Purpose, Industrial, Medical

Distributor offers

SellerSKUMOQIn stockMultiplePrices
Digi-Key900-0532611190TR-ND11
Digi-Key24288411
Digi-Key68040211
