0528921295 Molex | Connectors, Interconnects | DigiKey

Molex . 0528921295

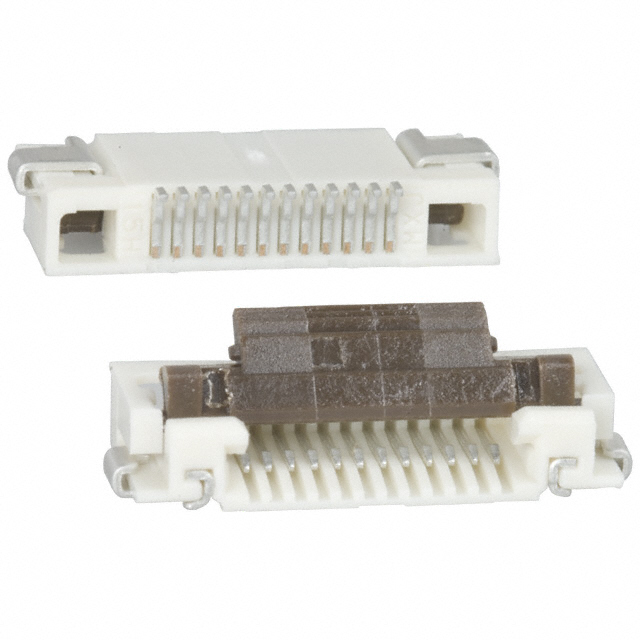

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, MfrMolex
CategoryL1, CategoryConnectors, Interconnects
CategoryL2FFC, FPC (Flat Flexible) Connectors
CategoryL3FFC, FPC (Flat Flexible) Connector Assemblies
DimensionUnitinch
Extra Product Name0528921295 Molex | Connectors, Interconnects | DigiKey
atoms, moq, multiple1
extraShipping, qtyInStock0
height0.079
height_AttribHeight Above Board
MPN, Manufacturer Product Number0528921295
SKU1089661
snippet12 Position FFC, FPC Connector Contacts, Bottom 0.020\
Digi-Key Part Number900-0528921295-ND
DescriptionCONN FFC BOTTOM 12POS 0.5MM R/A
Detailed Description12 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
SeriesEasy-On 52892
PackageBulk
Product StatusObsolete
Flat Flex TypeFFC, FPC
Mounting TypeSurface Mount, Right Angle
Connector/Contact TypeContacts, Bottom
Number of Positions12
Pitch0.020" (0.50mm)
TerminationSolder
FFC, FCB Thickness0.30mm
Height Above Board0.079" (2.00mm)
Locking FeatureFlip Lock
Cable End TypeStraight, Tapered
Contact MaterialPhosphor Bronze
Contact FinishTin Bismuth
Housing MaterialPolyamide (PA46), Nylon 4/6
Actuator MaterialPolyphenylene Sulfide (PPS)
FeaturesSolder Retention, Zero Insertion Force (ZIF)
Voltage Rating50V
Operating Temperature-25?C ~ 85?C
Material Flammability RatingUL94 V-0
Current Rating (Amps)0.5A
Contact Finish Thickness, Housing Color, Actuator Color-
Mating Cycles20
Base Product Number052892

Distributor offers

SellerSKUMOQIn stockMultiplePrices
Digi-Key108966111
Digi-Key106026311
