0528081771 Molex | Connectors, Interconnects | DigiKey

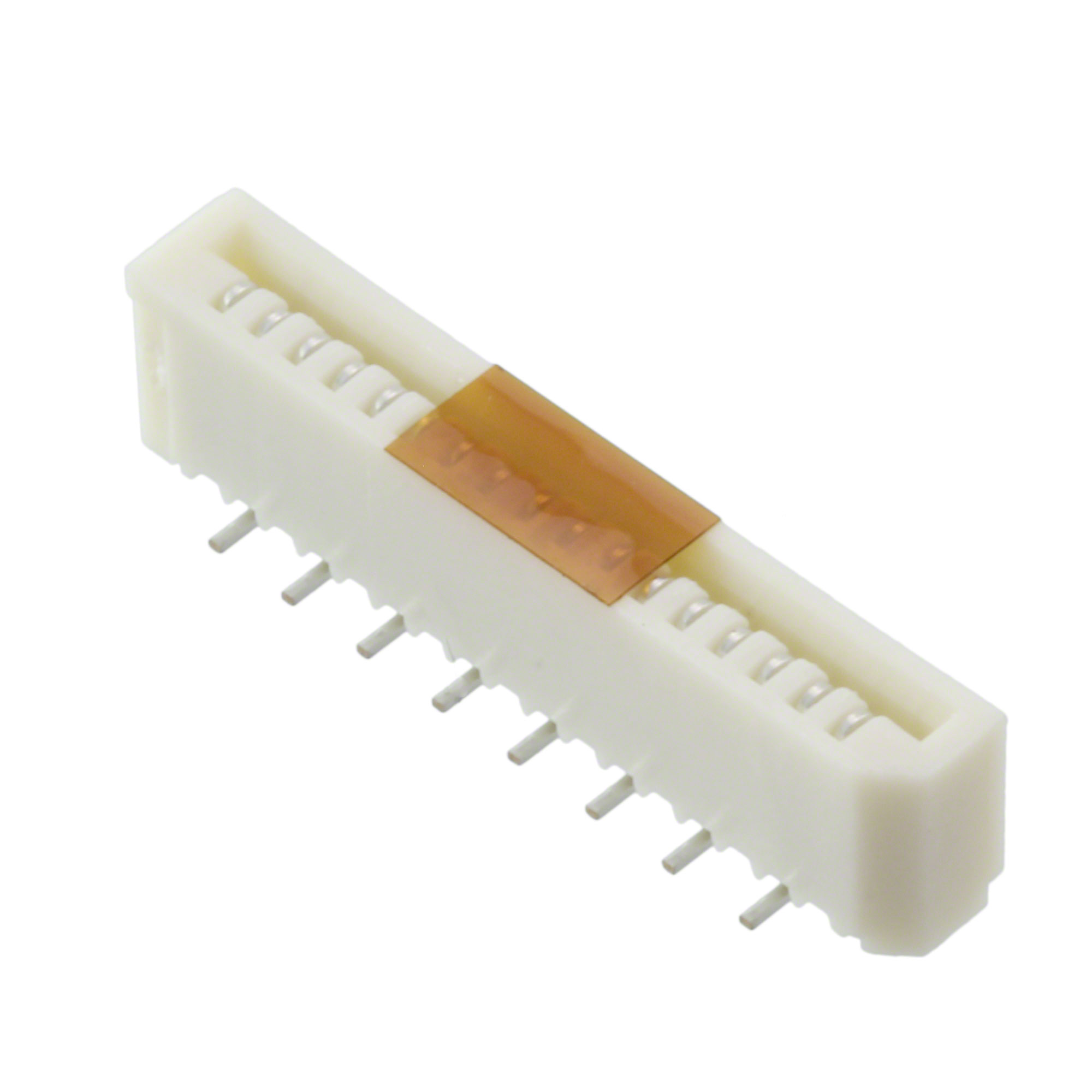

Molex . 0528081771

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, MfrMolex
CategoryL1, CategoryConnectors, Interconnects
CategoryL2FFC, FPC (Flat Flexible) Connectors
CategoryL3FFC, FPC (Flat Flexible) Connector Assemblies
DimensionUnitinch
Extra Product Name0528081771 Molex | Connectors, Interconnects | DigiKey
atoms, moq, multiple, tierMinQty11
extraShipping0
height0.199
height_AttribHeight Above Board
MPN, Manufacturer Product Number0528081771
packagingCut Tape (CT) & Digi-Reel?
qtyInStock11108
SKU3263046
snippet17 Position FFC, FPC Connector Contacts, Vertical - 1 Sided 0.039\
tierMinQty2, Mating Cycles10
tierMinQty3100
tierMinQty41,000
tierMinQty52,000
tierMinQty63,000
tierMinQty75,000
tierMinQty810,000
tierMinQty925,000
tierPrice10.87000
tierPrice20.72100
tierPrice30.60100
tierPrice40.48076
tierPrice50.45071
tierPrice60.43569
tierPrice70.42066
tierPrice80.39963
tierPrice90.39062
Digi-Key Part NumberWM11060TR-ND - Tape & Reel (TR)
DescriptionCONN FFC FPC VERT 17POS 1MM SMD
Manufacturer Standard Lead Time7 Weeks
Detailed Description17 Position FFC, FPC Connector Contacts, Vertical - 1 Sided 0.039" (1.00mm) Surface Mount
SeriesEasy-On 52808
PackageTape & Reel (TR)
Product StatusActive
Flat Flex TypeFFC, FPC
Mounting TypeSurface Mount
Connector/Contact TypeContacts, Vertical - 1 Sided
Number of Positions17
Pitch0.039" (1.00mm)
TerminationSolder
FFC, FCB Thickness0.30mm
Height Above Board0.199" (5.05mm)
Locking Feature, Actuator Material, Features, Contact Finish Thickness, Housing Color, Actuator Color-
Cable End TypeStraight
Contact MaterialPhosphor Bronze
Contact FinishTin Bismuth
Housing MaterialPolyphenylene Sulfide (PPS)
Voltage Rating125V
Operating Temperature-20?C ~ 85?C
Material Flammability RatingUL94 V-0
Current Rating (Amps)0.5A
Base Product Number052808

Distributor offers

SellerSKUMOQIn stockMultiplePrices
Digi-Key326304611110811 @ $0.87, 10 @ $0.72, 100 @ $0.60, 1000 @ $0.48, 2000 @ $0.45, 3000 @ $0.44, 5000 @ $0.42, 10000 @ $0.40, 25000 @ $0.39
Digi-Key51711631001431001 @ $0.82, 10 @ $0.68, 100 @ $0.57
Digi-Key5171164113311 @ $0.82, 10 @ $0.68, 100 @ $0.57
