Aemc Instruments Power/energy Quality Analyser, 1Kv, 4 Ch - 8345

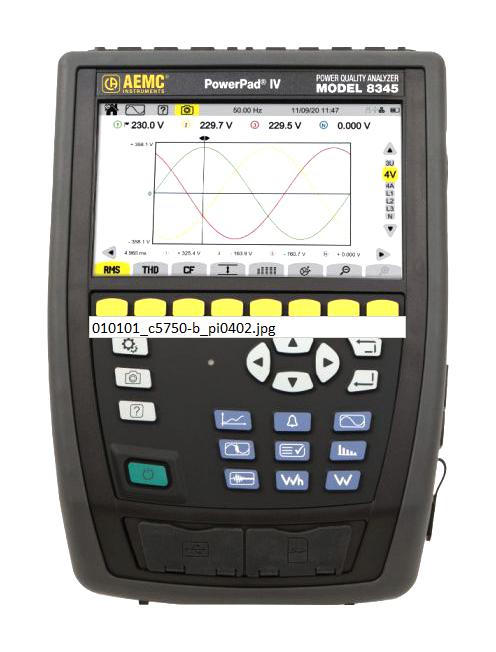

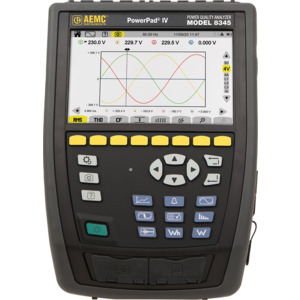

AEMC PowerPad IV Model 8345 (Meter Only, No Current Sensors)PowerPad IV Model 8345 (Meter Only, No Current Sensors)5V to 1000V Three-Phase Analyzer in full compliance with IEC 61000-4-30 Edition 3.1 Voltage quality diagnostics; Works on electrical networks Single-Phase Three-Phase wye, delta, etc.Power W, VA and VAR (N, Q1, and D) measurements; PF, DPF, CF, and THD measurementsWebserver, Wi-Fi, Ethernet, and USB communication; Built-in GPSAEMC PowerPad IV Model 8345The PowerPad model 8345 is a portable three-phase, Class A Power Quality Analyzer that enables technicians and engineers to measure and perform diagnostics and power quality work on one, two or three phase networks. This very advanced event recorder meets the highest performance and measurement time accuracy requirements providing a large number of calculated values and processing functions to make installations and maintenance easier. Intended for inspection, maintenance and field service teams on industrial or commercial installations, the PowerPad IV gives you a snapshot of the electrical network quality features. The Class A instrument meets the most rigorous performance and measurement time accuracy requirements (better than +/- 0.3 sec/day) for parameters such as voltage, current, harmonics and power and other measurements as defined in the IEC61000-4-30 standard and can produce reliable and repeatable results when connected to the same signals.Standard Verification CampaignsEnergy Valuation - PowerPad IV Class A Model 8345 offers all the measurements required to successfully implement energy efficiency projects and monitor electricity distribution.Shockwaves - Shockwaves, usually caused by lightning, are spectacular instantaneous electrical voltage surges. They also propagate in the digital network. Model 8345 can withstand shockwaves up to 12 kV which are sampled every 500 ns.Line Carrier Signal Measurement - In the ha
