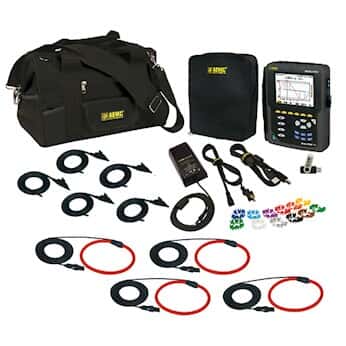

AEMC 8336 W 4 x MN193-BK PowerPad III Thee-Phase Power Quality Meter w/ 4x MN193, (#2136.32)

AEMC 8336 w/4 MN193-BKPowerPad III Model 8336 with 4 193-24-BK Probes (24' Flex) rated to 6500A AC Measurement of TRMS voltages up to 1000Vrms AC/DC for two-, three-, four- or five-wire systems Measurement of TRMS currents up to 6500Arms (sensor dependent) Direct measurement of neutral current & voltagePowerPad III with 4 MN 193-BK SensorsThe PowerPad III Model 8336 is a three-phase power quality analyzer that is easy-to-use, compact and shock resistant. It enables technicians and engineers to measure and carry out diagnostics and power quality work on one-, two- or three- phase networks. Five voltage and four current inputs are provided. It is IEC 61000-4-30 Class B and safety rated to 600V CAT IV.The Model 8336 has 2GB of memory available for storing trend data. Additional internal memory is used to let you store alarms, transients, and snapshot data. The user can store up to 50 screen snapshots, up to 210 captured transients that contain four cycles for each active input, and 10,000 alarm events from up to 40 different parameters. Trend data can also be recorded for days, weeks or even months. Inrush current can also be captured and stored.Additional featuresCalculation of the K-Factor for transformersCalculation of short-term and long-term flickerCalculation of the Three-Phase voltage unbalanceHarmonic measurements (referenced to the fundamental or RMS value) for voltage, current or power, up to 50th harmonicDisplays of harmonic sequencing and direction and calculation of overall harmonicsReal-time display of Phasor diagrams including values and phase anglesMonitors the average value of any parameter, calculated for a period from 1 sec to 2 hrsMeasurement of active, reactive and apparent power per phase and their respective sum totalCalculation of power factor, displacement power factor and tangent factorRecording, time stamping and characterization of disturbance (swells, sags and interruptions, exceedence of
