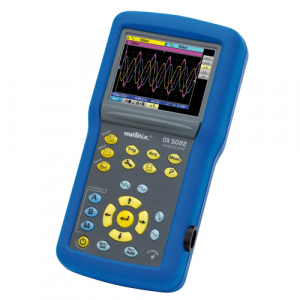

AEMC OX5022 Shockproof Handscope Oscilloscope 2150.20. ✅$50 OFF Orders over $1499 ✅. Save Now! ☎ (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7

AEMC . 2150.20

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerAEMC
DimensionUnitm
Weight2.65
WeightUnitlbs
Weight_AttribWeight
length63.5
length_AttribMemory Depth
moq, multiple, tierMinQty11
MPN, SKU2150.20
qtyInStock0
snippetAEMC OX5022 Shockproof Handscope Oscilloscope 2150.20. ✅$50 OFF Orders over $1499 ✅. Save Now! ☎ (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7
tierPrice11895.25
width2.0
width_AttribInputs / Bandwidth
Inputs / Bandwidth2 X 600V Isolated channels / 20MHz
Input Impedance1MΩ ± 0.5%, 17pF
Screen SpecificationsColor 3.5" TFT LCD 320 x 240 – LED Backlighting
Display Mode2500 real acquisition points on screen
Traces On Screen2 Traces + 2 References + memory trace or Math calculation
Front Panel Control24 keys
Vertical Sensitivity5mV to 200V/div and up to 156μV/div in vertical zoom mode (12-bit converter) – Accuracy ± 1%
Max Input Voltage600Vrms CAT III – Derating -20dB per decade from 100kHz
Time Base Speed25ns/div to 200s/div. – accuracy 0.1-Roll mode from 100ms to 200s/div
Horizontal ZoomZoom factor : x1, x2, x5
ModeOn all channels: Auto, Triggered, One-shot & trigger Roll
TypeEdge, Pulse width (20ns to 20s)
CouplingAC or DC (dependent of the coupling of the triggering channel)- HF, LF, or noise rejection
Sensitivity≤ 1.2 divisions p-p up to 20 MHz
Max Sampling Rate2GS/s in ETS – 50MS/s in Single Shot Mode on each channel (9 bits)
Memory Depth2500 points/channel
Memory Capacity2MB for storing various types files: trace, text, configuration, image files
GLITCH ModeDuration ≥ 20ns – 1,250 MIN Max pairs
Display ModesEnvelope, Averaging (factors 2 to 64) and XY (vector)
Math FunctionsChannel inversion,, +, -, x, / and (adjustable scaling)
Automatic Measurement18 time, level, phase measurements
Multimeter Mode2 channels, 8000 counts + Min and Max bargraph – TRMS – graphic recording of 2,700 measurements (5min to 31 days)
AC, DC, AC+DC Voltages600mV to 600VRMS, 800mV to 800VDC: accuracy 2% R + 20cts Bandwidth 50kHz
Active Power and PFSingle phase-Balanced 3 phase, with or without Neutral, simultaneous display of current
Multi-Channel Analysis2 channels, 31 orders, fundamental from 40 to 450Hz
InterfaceIsolated USB, SX-Metro software included
Batteries6 LR6 or 6 AA Rechargeable 9.6V NiMH battery pack, External charger
Charging TimeExternal power adapter, 98 to 264VAC (50/60Hz) 2hrs 30min when OFF
Battery lifeUp to 8hrs 30min
Dimensions (L x W x H)8.43 x 4.33 x 2.24” (214 x 110 x 57mm)
Altitude Operating2000m (6560ft)
Operating Temperature32° to 104°F (0° to 40°C) ≤80% RH
Storage Temperature-4° to 140°F (-20° to 60°C)
IP RatingIP54 per IEC 60529
SafetyIEC/EN 61010-1 (1000V CAT II; 600V CAT III), IEC 1326-1

Distributor offers

SellerSKUMOQIn stockMultiplePrices
Megadepot2150.20111 @ $1895.25
usmegastore.com2150.201Contact Us11 @ $1895.25
Galco2150.20-AEMC111 @ $1995.00
valuetesters.comQVT-2012120358754840579111 @ $1895.25
