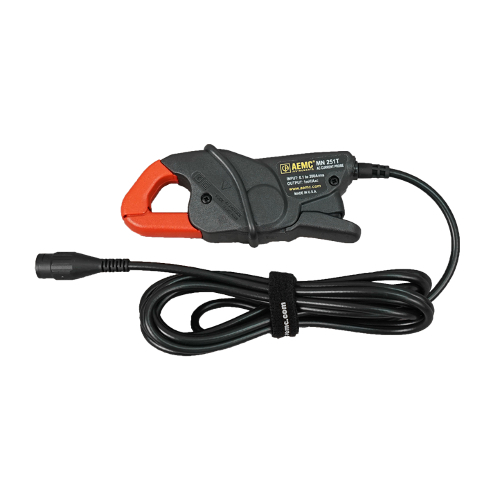

AEMC . 2132.59

AEMC . 2132.59

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerAEMC
Weight6.6
WeightUnitoz
Weight_AttribWeight
moq, multiple, tierMinQty11
MPN, SKU2132.59
qtyInStock0
tierPrice1212.80
Maximum Conductor Size0.78" (20mm), bus bar 20x5mm
Current Range200Arms AC
Measurement Range0.5 to 240A
Output10ft (3m) lead with BNC output
Transformation Ratio1000:1
Output Signal1mV/AAC (200mV at 200A)
Accuracy 50/60Hz1% ± 0.5A at 200A
Frequency Range40Hz to 10KHz
Phase Shift at 50Hz2.5° at 200A
Open Secondary VoltageN/A
Overload240A for 10 min ON, 30 min OFF
Dimensions (H x W x D)5.37 x 2.00 x 1.18" (139 x 51 x 30 mm)
Operating Temperature14° to +122°F (-10° to +55°C)
Storage Temperature-40° to +158°F (-40° to +70°C)
Operating Humidity90% RH
Pollution Degree2
Ingress Protection (IP)IP40
EMCEN 61326-1
Safety ComplianceEN/IEC 61010-1 600V CAT III, EN/IEC 61010-032

Distributor offers

SellerSKUMOQIn stockMultiplePrices
Megadepot2132.59111 @ $212.80
usmegastore.com2132.591-211 @ $239.60
Galco2132.59-AEMC111 @ $240.00
