AEMC . 2113.42

AEMC . 2113.42

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Brand, Label, Man, Publisher, StudioAEMC
Weight1.21
WeightUnitlbs
Weight_AttribWeight
moq, multiple, tierMinQty1, Case, NumberOfItems, PackageQuantity1
MPN, SKU, Part Number, CatalogNumberList, PartNumber2113.42
qtyInStockContact Us
tierPrice1174.80
UPC, EAN, EANList, UPCList685338040012
ModelSR600
Product Group, ProductGroupBISS
Maximum Conductor Size2.05" (52mm)
Current Range1000Arms AC
Measurement Range0.1 to 1200A
OutputTwo standard banana jack (4mm)
Transformation Ratio1000:1
Output Signal1mA/AAC (1A @ 1000A)
Accuracy 50/60Hz0.5% @ 1000A
Frequency Range30Hz to 50KHz
Phase Shift at 50Hz0.5° @ 1000A
Open Secondary VoltageNone
Load Impedance1Ω, 5Ω max with derating
Overload1200A for 40 mn ON then 20 mn OFF
Dimensions (H x W x D)4.37 x 8.50 x 1.77” (111 x 216 x 45mm)
Operating Temperature14° to +122°F (-10° to +50°C)
Storage Temperature-4° to +158°F (-20° to +70°C)
Operating Humidity90% RH
Pollution Degree2
Ingress Protection (Ip)IP40
EMCEN 61326-1
Safety ComplianceEN/IEC 61010-1 600V CAT III,EN/IEC 61010-032
AsinB008S07Z5M
BindingMisc.
CatIndustrial & Scientific
CatId16310091
CatTree16310091 16310161 256409011 5011659011 5011677011
FeatureLarge jaw opening accommodates conductors up to two 500kcmil
ProductTypeNameELECTRONIC_COMPONENT
Size100mA to 1200AAC Range, 1mV/A Output

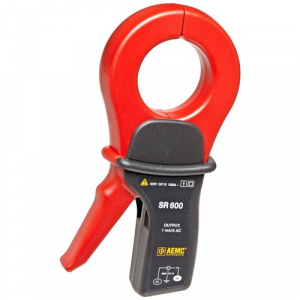

TitleAEMC SR600 AC Current Probe with Jack, 100mA to 1200AAC Range, 1mV/A Output

Distributor offers

SellerSKUMOQIn stockMultiplePrices
Megadepot2113.421Contact Us11 @ $174.80
TranscatSR6001This item is no longer available. Please contact11 @ $178.48
usmegastore.com2113.4211
Galco2113.42-AEMC111 @ $184.00
industrialstores.com2113.421Call for Availability11 @ $159.78
valuetesters.comQVT-200902231602112322711
