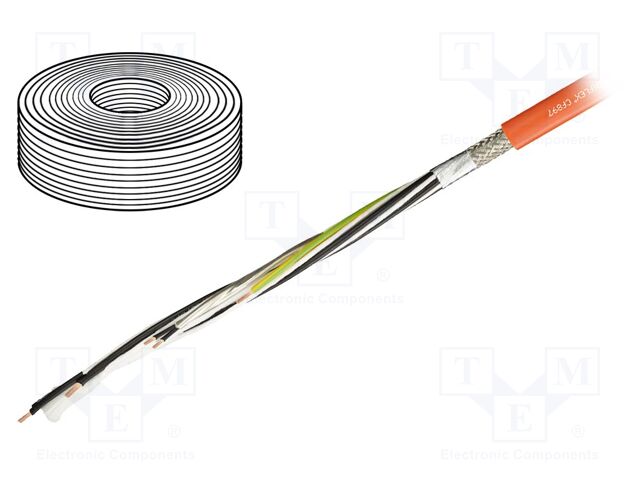

IGUS CF897.25.15.02.01 | Wire: servo drive; chainflex? CF897,hybrid; 4G2,5mm2 + 2x1,5mm2

IGUS . CF897.25.15.02.01

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerIGUS
CategoryL1Wires and Cables
CategoryL2Cables
CategoryL3Cables for Power Chains
CategoryL4Cables for Power Chains - Shielded
DimensionUnitmm
Extra Product NameIGUS CF897.25.15.02.01 | Wire: servo drive; chainflex? CF897,hybrid; 4G2,5mm2 + 2x1,5mm2
atoms1
diameter, length, width13.5
jsonUrlDatad9890eee0a371c71b57c793b12235b36.
jsonUrlData2b3c3e231406b62c6d9b3
keywordsIGUS, CF897.25.15.02.01, Wires and Cables, Cables, Cables for Power Chains, Cables for Power Chains - Shielded
length_Attrib, width_AttribCable external diameter
moq, multiple, tierMinQty15
MPN, SKUCF897.25.15.02.01
qtyInStock0
snippetIGUS CF897.25.15.02.01 | Wire: servo drive; chainflex? CF897,hybrid; 4G2,5mm2 + 2x1,5mm
tierMinQty225
tierMinQty350
tierMinQty4100
tierPrice116.4
tierPrice214.57
tierPrice312.75
tierPrice411.84
Type of wireservo drive
Kind of wirechainflex? CF897,
Insulation colourorange
Core structurestranded
Kind of coreCu
Operating temperature-20...80?C
Shield structurepairs shielded with Al-PET foil,
Wire insulation materialPUR
Cable external diameter13.5mm
Number of cores6
Rated voltage600V/
Core markingblack, numbered + ground wire
CPR standardno classification
Earth coreyellow-green
Resistance tomost of oils,
Cable applicationflexible connections,
Cable featuresself-supporting
Kind of materialno flame propagation
Conform to the normUL 10492
InformationThe UL Label and Mark on full factory packaging only

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMECF897.25.15.02.01555 @ $16.40, 25 @ $14.57, 50 @ $12.75, 100 @ $11.84
