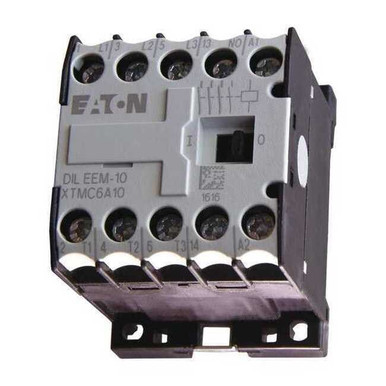

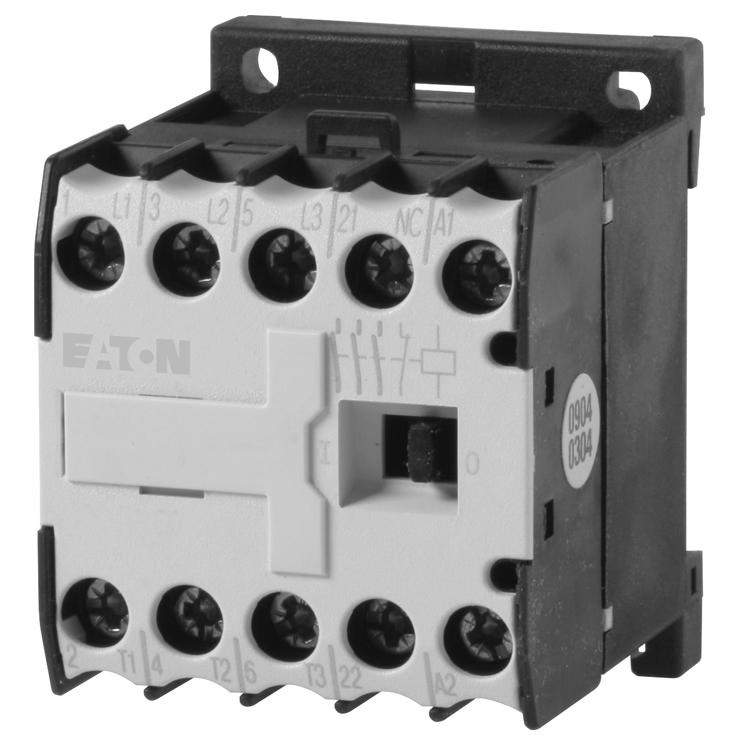

Eaton / Cutler Hammer . XTMC6A10TD

Eaton's new line of Cutler-Hammer XT Miniature Controls includes nonreversing and reversing mini contactors, mini overload relays and snap-on accessories. A wide range of applications is possible including small electrical motors from fractional to 5 HP (460 VAC) or up to 4 kW (400 VAC). Application Description Due to its compact size, the XT line of mini controls is best suited to be applied in light duty loads such as hoisting, packaging, material handling, heating, lighting and automation systems. XT mini contactors are a particularly compact, economic and environmentally friendly solution wherever control of small motors or loads is required. Features: AC Control - 120 V, 24 V DC Control - 24 V Life: Mechanical - Up to 20 Million Operations; Electrical - Up to 750,000 Operations Panel or DIN Rail Mounting IP20 Finger and Back-of-Hand Proof Low Noise Operation High Degree of Climatic Proofing Large Ambient Temperature Range –25°-50°C (–13°-122°F)

XT IEC FVNR Miniature Contactor, Three-pole, Screw terminals, 6.6A, 45 mm mini Frame size, 1NO contact configuration, 24 Vdc coil
