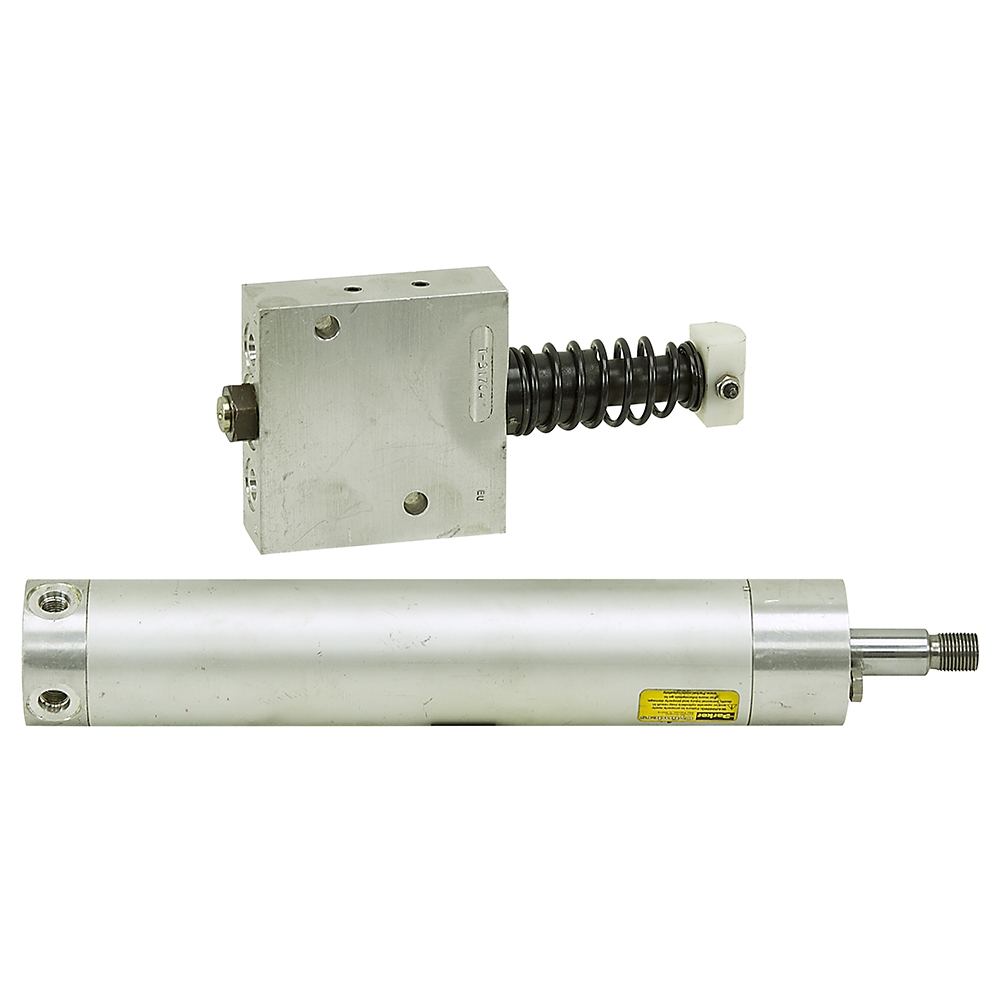

1x8x0.75 Single-Acting Hydraulic Cylinder with Hand/Foot Pump Parker P/N BB269147A0 | Single Acting Hydraulic Cylinders | Hydraulic Cylinders | Hydraulics | www.surpluscenter.com

PARKER CYLINDER DIVISION . MODEL# BB269147A0

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerPARKER CYLINDER DIVISION
DimensionUnitinch
Extra Product Name1x8x0.75 Single-Acting Hydraulic Cylinder with Hand/Foot Pump Parker P/N BB269147A0 | Single Acting Hydraulic Cylinders | Hydraulic Cylinders | Hydraulics | www.surpluscenter.com
Weight12
WeightUnitlbs
diameter, height, width0.75
height_AttribRod Dia.
length14.5
length_AttribRetracted Length
moq, multiple, tierMinQty11
MPNMODEL# BB269147A0
qtyInStock120
SKU9-8026
snippet1x8x0.75 Single-Acting Hydraulic Cylinder with Hand/Foot Pump Parker P/N BB269147A0, Single Acting Hydraulic Cylinders, 1 x 8 x 0.75 SA HYDRAULICPARKER CYLINDER DIVISION,MODEL# BB269147A0,
tierPrice189.99
width_AttribThread Depth
Bore x Stroke1" x 8"
Barrel Thickness1/8"
Pressure925 PSI max.
Rod Dia, Thread Depth3/4"
PortsSAE 4
Retracted Length14-1/2"
Shpg12 lbs.
Rod EndThreaded
Thread size-Pitch5/8"-18
Thread Length5/8"
Base EndFour Tapped Mounting Holes
Bolt circle5/8" B.C.
Block Dimensions3" x 3" x 1-1/4"
Spring Assembly Dimensions3-1/4" x 1-1/2" x 1-3/8"
MountTwo 3/8"-16 tapped holes on 3-3/16" centers
Ball ChecksTwo in SAE 6 cavities, Spring-loaded
Check ValvePARKER Mexico KR CV081P65
End Attachment1" wide tang w/ 1/4" pin holes

Distributor offers

SellerSKUMOQIn stockMultiplePrices
surpluscenter.com9-8026112011 @ $89.99
