| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Grainger | 5XTA0 | 1 | 1 | ||
 Zoro | G2714546 | 1 | 1 | 1 | 1 @ $484.99 |
| Galco | H655 | 1 | 1 | ||
 Global Industrial | WBB245406 | 1 | -2 | 1 | 1 @ $578.00 |
| AE7FUG | 1 | 1 | 1 @ $804.94 | ||
 MRO Supply | 5918591 | 1 | 1 | 1 @ $520.99 | |
| Amazon | B007ICMZWY | 1 | 1 | 1 @ $427.08 | |
| AOSH655 | 1 | 1 | |||
| H655V1 | 1 | 1 | 1 @ $555.72 | ||
 National Supply Network | B245406 | 1 | -2 | 1 | 1 @ $680.33 |
| sustainablesupply.com | C1565167 | 1 | 1 | 1 @ $639.56 | |
 emotorpro.com | H655V1 | 1 | -2 | 1 | 1 @ $628.50 |
 simsupply.com | ZO-G2714546 | 1 | 1 | 1 @ $601.74 | |
 midwestapplianceparts.com | H655V1-AO-P | 1 | 1 | 1 @ $641.34 | |
| midwestapplianceparts.com | H655V1 -AO-P | 1 | 1 | ||
| Square One | H655V1 | 1 | 1 | ||
| H655-AOST | 1 | 1 | 1 @ $0.00 |
Related on Amazon
As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

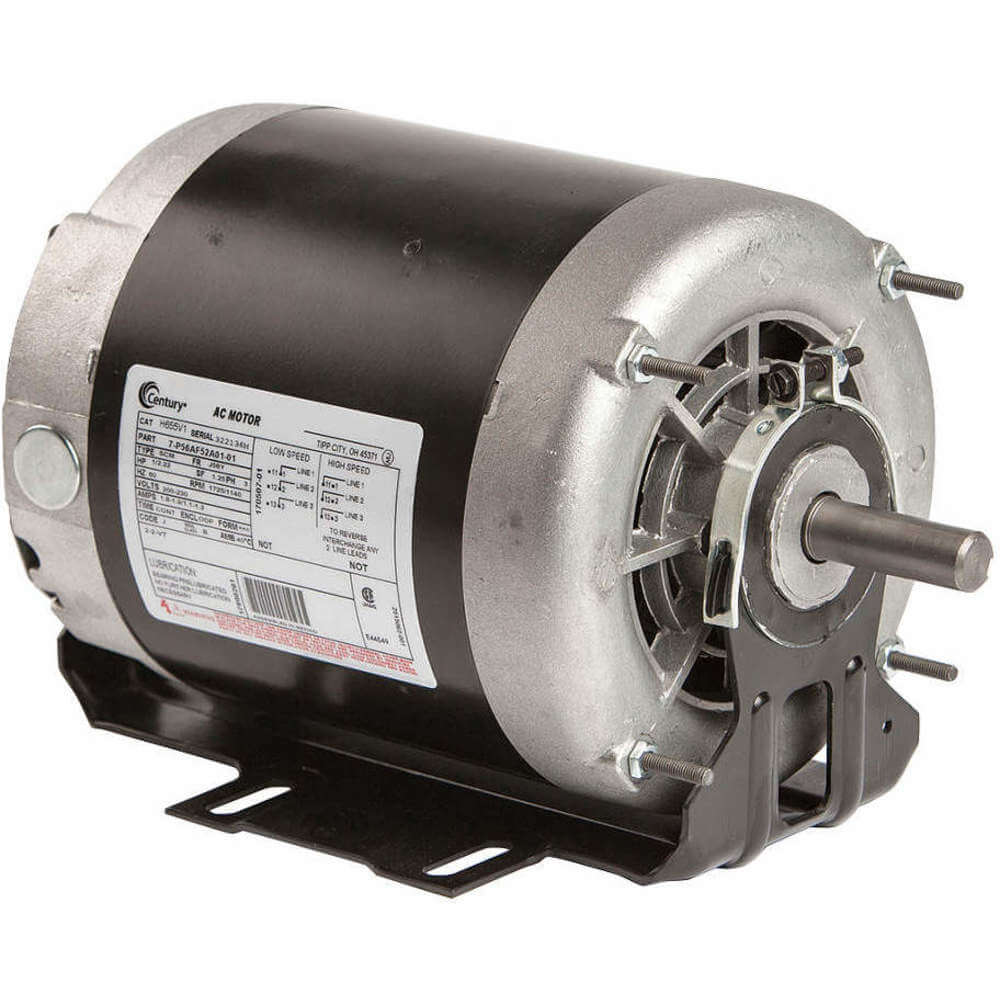

A.O. Smith H655
Brand: A. O. Smith
A.O. Smith H655
Mtr,3ph,1/2hp,1745/1140,200-230,Eff 61.0
Brand: Century
'Belt Drive Motor, 3-Phase, 1/2, 1/4 HP, Nameplate RPM 1745/1140, Voltage 200-230, 3 Phase, Frame 56Y, Open Dripproof, Full Load Amps 1.8-1.9/1.1-1.2, 60 Hz, Cradle Base Motor Mounting Type, Motor Mounting Position All Angle, Motor Thermal Protection None, Ins. Class B, Motor Service Factor 1.25, Ball Motor Bearings, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Overall Length 11-1/16 In., Shaft Dia. 5/8 In., Shaft Length 1-7/8 In.'
Details
- <b>Price For:</b> Each <b>Voltage</b>: 200-230 <b>Ins. Class</b>: B <b>Duty</b>: Continuous <b>Resilient Ring Dia.</b>: 2-1/2" <b>Motor Mounting Position</b>: All Angle <b>Phase</b>: 3 <b>HP</b>: 1/2, 1/4 <b>RPM Range</b>: 1701-1800 <b>Body Dia.</b>: 6-1/2" <b>Motor Frame Material</b>: Steel <b>Hz</b>: 60 <b>Standards</b>: UL Recognized (E44549), CSA Certified (4642) <b>Mounting Stud Pattern</b>: 4-1/8" x 4-1/8"
- <b>Voltage Compatibility</b>: 200, 208, 200-230, 200-230/440, 200-230/460, 208-230, 208-240 <b>Shaft Length</b>: 1-7/8" <b>No. of Speeds</b>: 2 <b>Footnotes</b>: 26 <b>Motor Service Factor</b>: 1.25 <b>Motor Design</b>: 3-Phase <b>Max. Ambient Temp.</b>: 40 Degrees C <b>Overall Length</b>: 11-1/16" <b>Nominal Efficiency</b>: 61.0% <b>Frame</b>: 56Y <b>Item</b>: Belt Drive Motor <b>Motor Sub Application</b>: Belt Drive Fan/Blower <b>Full Load Amps</b>: 1.8-1.9/1.1-1.2
- <b>Motor Enclosure Design</b>: Open Dripproof <b>Motor Thermal Protection</b>: None <b>Motor Mounting Type</b>: Cradle Base <b>Shaft Dia.</b>: 5/8" <b>Nameplate RPM</b>: 1745/1140 <b>Frame Material</b>: Steel <b>Motor Shaft Rotation</b>: CW/CCW <b>Motor Application</b>: HVAC/R <b>Ring to Ring Center</b>: 8-11/16" <b>Motor Bearings</b>: Ball <b>Length Less Shaft</b>: 9-3/16" <b>Country of Origin (subject to change)</b>: Mexico
Listing
| Product group | Home Improvement |
|---|---|
| Product type | HOME_LIGHTING_ACCESSORY |
| Part number | H655V1 |
| Items per pack | 1 |
| Label | CENTURY |
| Manufacturer | CENTURY |
Catalog
| Category | Tools & Home Improvement |
|---|---|
| MPN | H655V1 |
| Product group | Home Improvement |
| Product type | HOME_LIGHTING_ACCESSORY |
| Manufacturer | Century |

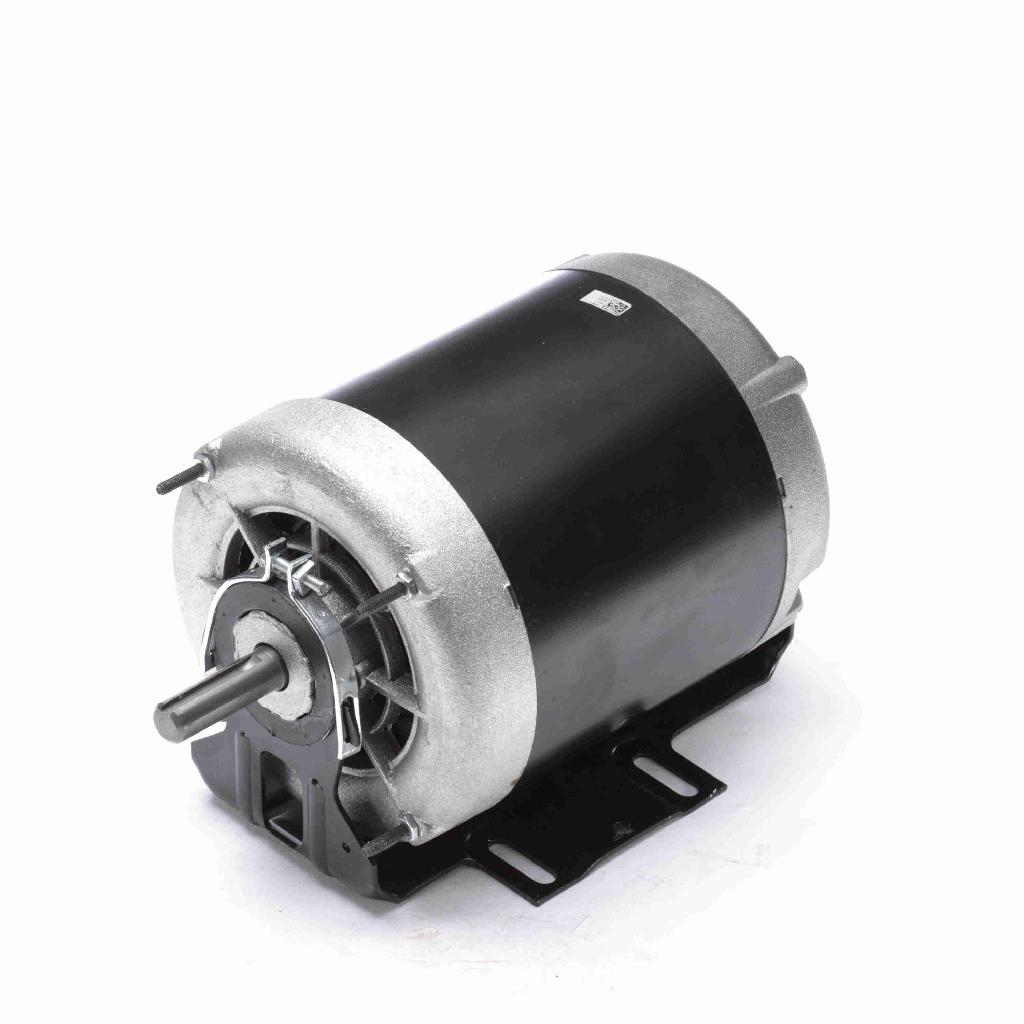

Century 1/2, 1/4 HP Belt Drive Motor, 3-Phase, 1745/1140 Nameplate RPM, 200-230 Voltage, Frame 56Y - H655V1
Brand: Century Electric Motor
Listing
| Product group | Home Improvement |
|---|---|
| Product type | HOME_LIGHTING_ACCESSORY |
| Model | H655V1 |
| Part number | H655V1 |
| Label | Century Electric Motor |
| Manufacturer | Century Electric Motor |
Catalog
| Feature | 1/2\xa0-\xa0.22 hp 1725/1140 RPM,1.8-1.9/1.1-1.2 amps,\xa0200-230V 60 hz. |
|---|---|
| Category | Tools & Home Improvement |
| MPN | H655V1 |
| UPC | 663001324799 |
| EAN | 663001324799 |
| Product group | Home Improvement |
| Product type | HOME_LIGHTING_ACCESSORY |
| Manufacturer | Century Electric Motor |
