Century

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameCentury
DimensionUnitinch
GraingerSku4ME22
UnitOfMeasureEA
Voltage200-230/460V AC
Weight35.25
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginMX
extendedLead, moq, multiple, tierMinQty1, No of Speeds, Motor Service Factor1
height10.5
jsonUrlData924526ffbdad25e5923b
length19.9
MPN56T110RR40003A2
qtyInStock, qtyInStockOverride0
qtySourceqtyInStockOverride
SKUG2423486
tierPrice1612
urlhttps://www.zoro.com/century-fan-motor-1-12-hp-1140-rpm-60hz-56t110rr40003a2/i/G2423486/
width7.9
FeaturesAuto Protector, Base Mounted, Reversible
Motor Shaft DesignKeyed with Single Flat
Frame56Y
Max Ambient Temp60 Degrees C
Duty, Duty CycleContinuous
Voltage Compatibility200-230/440V AC, 200-230/460V AC, 200-230V AC, 200V AC
HP1 1/2
Motor Shaft RotationCW/CCW
Shaft Length6 in
Motor Sub ApplicationCondenser Fan
Motor BearingsBall
Overall Length17 3/8 in
Full Load Amps5.1-5.0/2.5
Motor Enclosure DesignOpen Air-Over
Motor Mounting TypeRigid Base
Ins ClassB
Body Dia6 1/2 in
PhaseThree
Shaft Dia5/8 in
Motor Design3-Phase
Motor Thermal ProtectionAuto
Hz60
Length Less Shaft11 5/16 in
Motor ApplicationHVAC/R
Motor Mounting PositionVertical Shaft Up
Nameplate RPM1,140
RPM Range1,101-1,200
StandardsCSA Certified, UL Recognized
Nominal Efficiency80 %

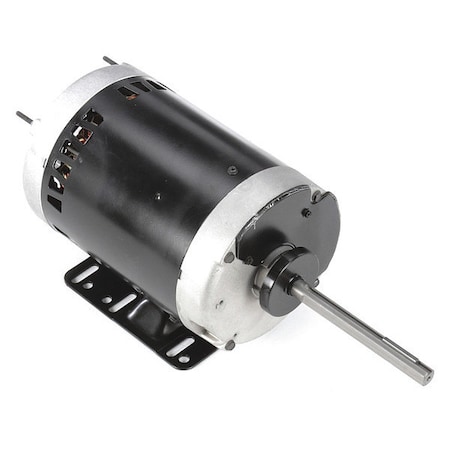

ItemCondenser Fan Motor
Stud Quantity4
Mounting Stud Pattern4 1/8 in x 4 1/8 in
IncludesWater Slinger on Shaft
Stud Size#10-32
Bolt Circle Dia5 13/16 in
Usable @ 208V, Usable @ 200VYes
Country of Origin (subject to change)Mexico

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG2423486111 @ $612.00
simsupply.comCU-344D4532321311 @ $399.64
simsupply.comZO-G2423486111 @ $772.78
