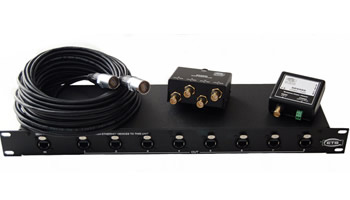

Energy Transformation Systems ETS-SDS887 UTP Video Distribution Hub 8 Channels

The ETS SDS887 a UTP Video Distribution Hub designed for Broadway theaters and other similar theaters has four baseband video signals transmitting through the distribution amplifier creating 32 outputs The ETS SDS887 Hub can be used for monitoring in a variety of installations Note Unshielded Twisted Pair Category5 or better cable should be used The SDS889 Distribution Hub balances the input signal distributes it on the UTP cable and converts the signal back at each display NTSC PAL SECAM or CCTV signals are converted to and from the UTP cable using the ETS SDS888 Video Power and SDS889 Quad Video Balun for signal stability EtherCon connectors are recommended for these products Intended for theatrical applications where those backstage can monitor onstage activity the SDS887 Video Distribution Hub supports color video over a total run length in excess of 33 meters 11ft inclusive of all cable segments on Category 5 or better cable Black and white signals are typically supported up to 75 meters 25ft Features. UTP Video Distribution Hub 8 Channels. Sends 4 video camera signals to up to 32 monitors. Active hub passive baluns mean a 9 passive system for superior reliability. All connectors are highquality Neutrik brand including new power connectors. EtherCon connectors are used for stability. Easily rackmountable. Expandable for any size production. Easy portability. Rugged metal enclosure for road travel. Major cable runs use Cat5 cable reducing weight and cost. Made in USA 1 testedSpecifications. Support Bandwidth Composite Baseband Ntsc Pal Secam Or Cctv. Connectors Ethercon Rj45 Jack Power Con 20A Fbnc. Crosstalk 50Db. Pinouts Video 1. Power Input 120Vac 60Hz. Media Category 5E Or Better Utp Cable. Distance Up To 1100 Feet. Dimension 1 Ru X 121Mm Deep
