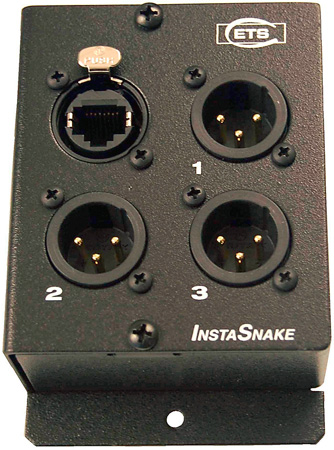

Energy Transformation Systems ETS-PA205M Insta Snake 3-Channel XLR Male CAT5 Audio Balun

The ETS InstaSnake PA200 Series is configured for 3 sends and 1 return Each passive send unit PA205F features 3 Female XLR and 1 Male XLR to RJ45 jack all pins Each passive receive unit PA205M features 3 Male XLR and 1 Female XLR to RJ45 jack all pins The PA205 will send phantom power over standard Cat5 or 6 cables Phantom power has been tested to 850 feet over shielded cable The basic units are a pair of passive units with bidirectional capability which can be input directly into analog or digital consoles Designed to the highest professional standards the InstaSnake has a wide flat frequency response low THD and residual noise The InstaSnake has been factory tested to 1900 feet over CAT5 using low Z dynamic microphones Features. Very easy transport. Low cost. No ground loops. Add second unit to increase the number of channels. May be used for analog or digital audio. Supports 48V phantom power. Rugged roadready construction. RoHS compliant. 100 testedSpecifications. Dimensions 107 mm x 70 mm x 45 mm
