1ED3121MU12HXUMA1 Infineon Technologies | Isolators | DigiKey

Attributes

Brand name, Manufacturer name, Manufacturer, MfrInfineon Technologies
Extra Product Name1ED3121MU12HXUMA1 Infineon Technologies | Isolators | DigiKey
atoms, moq, multiple, tierMinQty1, Number of Channels1
extraShipping0
MPN1ED3121MU12HXUMA1
packagingCut Tape (CT) & Digi-Reel?
qtyInStock24
SKU13544410

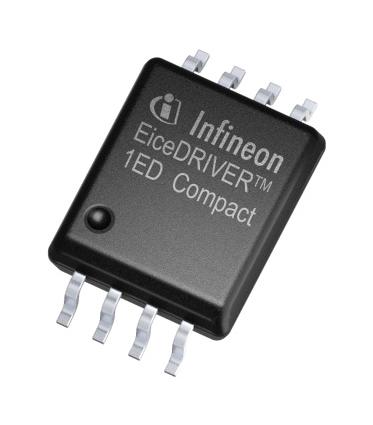

snippet5.5A Gate Driver Magnetic Coupling 1200Vrms 1 Channel PG-DSO-8-66
tierMinQty210
tierMinQty325
tierMinQty4100
tierMinQty5250
tierMinQty6500
tierPrice13.06000
tierPrice22.74500
tierPrice32.58960
tierPrice42.20650
tierPrice52.07184
tierPrice61.81286
CategoryIsolators
SeriesEiceDriver?
PackageTape & Reel (TR)
Product StatusActive
TechnologyMagnetic Coupling
Voltage - Isolation1200Vrms
Common Mode Transient Immunity (Min)200kV/?s
Propagation Delay tpLH / tpHL (Max), Pulse Width Distortion (Max), Voltage - Forward (Vf) (Typ)-
Rise / Fall Time (Typ)15ns, 15ns
Current - Output High, Low5.5A, 5.5A
Current - Peak Output5.5A
Voltage - Output Supply10V ~ 35V
Operating Temperature-40?C ~ 125?C
Mounting TypeSurface Mount
Package / Case8-SOIC (0.295", 7.50mm Width)
Supplier Device PackagePG-DSO-8-66
Approval AgencyUL
Base Product Number1ED3121

Distributor offers

SellerSKUMOQIn stockMultiplePrices
Digi-Key1354441012411 @ $3.06, 10 @ $2.75, 25 @ $2.59, 100 @ $2.21, 250 @ $2.07, 500 @ $1.81
Newark22AJ07691190711 @ $3.09, 10 @ $2.78, 25 @ $2.60, 50 @ $2.41, 100 @ $2.24, 250 @ $2.09, 500 @ $1.83, 1000 @ $1.52
Digi-Key13544523111 @ $3.06, 10 @ $2.75, 25 @ $2.59, 100 @ $2.21, 250 @ $2.07, 500 @ $1.81
