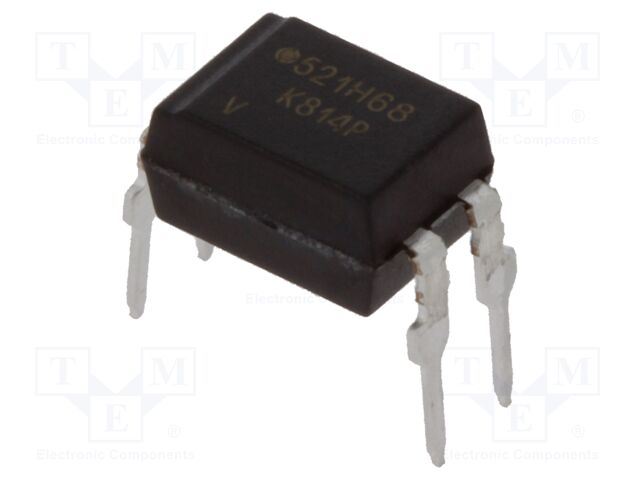

Vishay Semiconductor Opto Division . K814P

OPTOCOUPLER, TRANSISTOR, 5000VRMS; No. of Channels:1 Channel; Optocoupler Case Style:DIP; No. of Pins:4Pins; Forward Current If Max:60mA; Isolation Voltage:5kV; CTR Min:20%; Collector Emitter Voltage V(br)ceo:70V; Product Range:- RoHS Compliant: Yes

VISHAY SEMICONDUCTOR K814P OPTOCOUPLER, TRANSISTOR, 5000VRMS

OPTOCOUPLER, TRANSISTOR, 5000VRMS; No. of Channels:1 Channel; Optocoupler Case Style:DIP; No. of Pins:4Pins; Forward Current If Max:60mA; Isolation Voltage:5kV; CTR Min:20%; Collector Emitter Voltage V(br)ceo:70V; Product Range:- ;RoHS Compliant: Yes

EU RoHS: Compliant ECCN (US): EAR99 Part Status: Active HTS: 8541.40.80.00 Automotive: No PPAP: No Output Type: DC Input Type: AC Output Device: Transistor Number of Channels per Chip: 1 Minimum Isolation Voltage (Vrms): 5000 Minimum Operating Temperature (°C): -40 Maximum Operating Temperature (°C): 100 Maximum Forward Voltage (V): 1.6 Maximum Collector-Emitter Voltage (V): 70 Maximum Current Transfer Ratio (%): 300 Standard: CSA|cUL|UL Maximum Collector Current (mA): 50 Maximum Collector-Emitter Saturation Voltage (mV): 300 Maximum Power Dissipation (mW): 250 Typical Forward Voltage (V): 1.25 Maximum Forward Current (mA): 60 Minimum Current Transfer Ratio (%): 20 Current Transfer Ratio Test Current (mA): 5 Typical Rise Time (us): 3 Typical Fall Time (us): 4.7 Standard Package Name: DIP Pin Count: 4 Supplier Package: DIL Mounting: Through Hole Package Height: 3.6 Package Length: 4.75(Max) Package Width: 6.3 PCB changed: 4 Lead Shape: Through Hole
