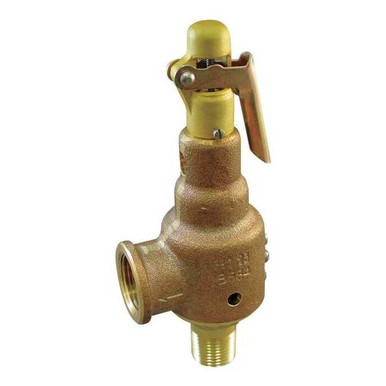

Safety Relief Valve, Body Material Bronze, Inlet Type MNPT, Outlet Type FNPT, Inlet Size 1 1/4 in, Outlet Size 1 1/2 in, Factory Set Pressure 200 psi, Disc Material B21 Alloy 485, Overall Height 9 5/8 in, Application Pressure Reducing Stations etc, Steam Boiler and Generators, Overall Length 5 1/4 in, Seat Material EPR, Spring Material Stainless Steel, Temp. Range -60 Degrees to 406 Degrees F, Test Lever Yes, Standards ASME Section 1, ASTM A-313 TY 631, National Board Certified, Steam

Kunkle Valve . 6010GFE01-AM0200

Gallery

Attributes

Brand name, Manufacturer nameKunkle Valve
ManufacturerKunkle Valve KUNKLE VALVE Tyco Valves & Controls
CategoryId, CategoryIdL37211
CategoryIdL133
CategoryIdL24629
CategoryL1Plumbing
CategoryL2Pipes, Valves & Fittings
CategoryL3Valves
CategoryL4, DisplayNameRelief Valves
DimensionUnitinch
GTIN, UPCNone
GraingerSku5NKZ2
UnitOfMeasureEA
Weight6.37 0.000625 6.25
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabel, AdultProduct, Autographed, Batteries_required, Memorabilia, TradeInEligibleFalse
countryOfOriginUS
height11.6
jsonUrlData924526ffbdad25e5923b
length5.1
moq, multiple, tierMinQty1, Item_package_quantity, NumberOfItems, Number_of_items, PackageQuantity1
MPN, PartNumber, Part_number6010GFE01-AM0200
qtyInStock0
qtyInStockOverride-2
SKUG0207602
tierPrice1503.99
urlhttps://www.zoro.com/kunkle-valve-safety-relief-valve-1-14-x-1-12-200psi-6010gfe01-am0200/i/G0207602/
width3.3
Inlet Size1 1/4"
Outlet Size1 1/2"
Overall Length5 1/4 in
Overall Height9 5/8 in
Body Material, Material, MaterialTypeBronze
Item, Product TypeSafety Relief Valve
Outlet TypeFNPT
Inlet TypeMNPT
Disc MaterialB21 Alloy 485
Temp Range-60 Degrees to 406 Degrees F
Factory Set Pressure200 psi
Spring MaterialStainless Steel
Seat MaterialEPR
StandardsASME Section 1, ASTM A-313 TY 631, National Board Certified, Steam
Test LeverYes
ApplicationPressure Reducing Stations etc, Steam Boiler and Generators
ASINB07GSF4J18
AsinB0089PP7AG B07GSF4J18
BrandKunkle Valve Kunkle Valves
Bullet_point1-1/4" male NPT threaded inlet, 1-1/2" female NPT threaded side outlet <b>Price For:</b> Each <b>Disc Material</b>: B21 Alloy 485 <b>Item</b>: Safety Relief Valve <b>Temp. Range</b>: -60 Degrees to 406 Degrees F <b>Outlet Size</b>: 1-1/2" <b>Outlet Type</b>: FNPT <b>Factory Set Pressure</b>: 200 psi <b>Spring Material</b>: Stainless Steel <b>Overall Length</b>: 5-1/4" <b>Overall Height</b>: 9-5/8" <b>Body Material</b>: Bronze <b>Inlet Type</b>: MNPT <b>Seat Material</b>: EPR <b>Standards</b>: ASTM A-313 TY 631, ASME Section 1, Steam, National Board Certified <b>Inlet Size</b>: 1-1/4" <b>Test Lever</b>: Yes <b>Application</b>: Steam Boiler and Generators, Pressure Reducing Stations etc <b>Country of Origin (subject to change)</b>: United States Bronze relief pressure valve with preset pressure of 200 psi for releasing excess pressure Complies with ASME Section I rules, spring meets ASTM-313 TY631 standards EPR soft seat for resistance to cold, heat, water, and steam Operating temperature range of -60 to +406 degrees F; pressure range of 3 to 250 psig
ClassificationId4650349011
Connection_size1.5
Connection_typeMNPT National Pipe Tapered
Connector_type, StyleThreaded
Exterior_finishBronze Stainless Steel
Height2560 3.199999996736 400 500 75 8.128
ItemClassificationBASE_PRODUCT
ItemName, Item_nameKunkle 6010GFE01-AM0200 Bronze ASME Safety Relief Valve for Steam, EPR Soft Seat, 200 Preset Pressure, 1-1/4" NPT Male Inlet x NPT Female Outlet Safety Relief Valve, 1-1/4 x 1-1/2, 200psi
Item_package_weight6.25
Item_shapeElbow
Item_type_keywordindustrial-relief-valves
Item_weight0.01
Keyword6010GFE01-AM0200 KUNKLE VALVE
Label, Publisher, StudioKUNKLE VALVE
Length11.599999988168 29.464
Linkhttps://m.media-amazon.com/images/I/31hnO85sjAL._SL75_.jpg https://m.media-amazon.com/images/I/31hnO85sjAL.jpg https://m.media-amazon.com/images/I/41PMh6qFlLL._SL75_.jpg https://m.media-amazon.com/images/I/41PMh6qFlLL.jpg https://m.media-amazon.com/images/I/41uu8IAIH9L._SL75_.jpg https://m.media-amazon.com/images/I/41uu8IAIH9L.jpg https://m.media-amazon.com/images/I/81X6OHDHu+L.jpg https://m.media-amazon.com/images/I/81zmJwcynNL.jpg
Pressure_range3 - 250 pounds_per_square_inch
ProductGroup, WebsiteDisplayGroupNameBISS Basic
ProductType, ProductTypeNameVALVE
Product_description'Relief valves are designed to open at a predetermined pressure. Here are some important details for Kunkle Valve Safety Relief Valve. Application: Steam Boiler and Generators, Pressure Reducing Stations etc, Body Material: Bronze, Inlet Size: 1-1/4".'
Product_site_launch_date2012-02-13T20:33:36.261Z 2018-08-23T18:44:06.530Z
Size1.25 Inch
Specification_metAsme Section 1, Steam, Tiol Board Certified Astm A-313 Ty 631 board
String_value5-1/4
Supplier_declared_dg_hz_regulationunknown
TitleSafety Relief Valve, 1-1/4 x 1-1/2, 200psi
TypeCount Each
URLhttps://m.media-amazon.com/images/I/31hnO85sjAL._SL75_.jpg
Unitcentimeters inches ounces pounds unknown_modifier
Unit_count1.0
Unitspixels pounds
Valve_typesafety relief valve
VariantMAIN PT01
WebsiteDisplayGroupbiss_basic_display_on_website
Width1083 1153 12.953999999999999 212 225 32 34 400 5.099999994798 75

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG0207602111 @ $503.99
Grainger5NKZ211
Raptor SuppliesAE4WQR111 @ $741.47
midwestapplianceparts.com6010GFE01-AM0200-KU-P1Current Unavailable - No ETA Available11 @ $511.39
midwestapplianceparts.com6010GFE01-AM0200 -KU-P11
grainger.caWWG5NKZ2111 @ $693.06
industrialzone.com6010GFE01-AM02001-211 @ $411.00
simsupply.comZO-G02076021311 @ $596.50

Related on Amazon

As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

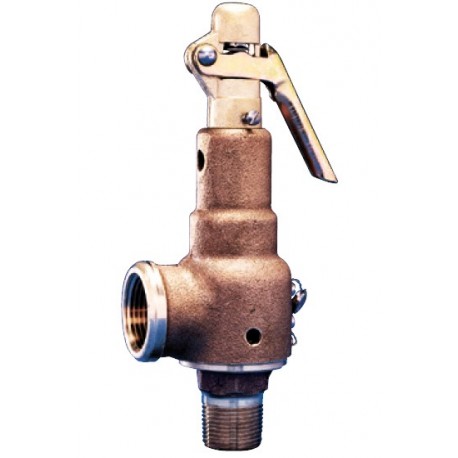

Kunkle 6010GFE01-AM0200 Bronze ASME Safety Relief Valve for Steam, EPR Soft Seat, 200 Preset Pressure, 1-1/4" NPT Male Inlet x NPT Female Outlet
Brand: Kunkle Valves
Details
  • Bronze relief pressure valve with preset pressure of 200 psi for releasing excess pressure
  • 1-1/4" male NPT threaded inlet, 1-1/2" female NPT threaded side outlet
  • EPR soft seat for resistance to cold, heat, water, and steam
  • Operating temperature range of -60 to +406 degrees F; pressure range of 3 to 250 psig
  • Complies with ASME Section I rules, spring meets ASTM-313 TY631 standards
View on Amazon (paid link)
Safety Relief Valve, 1-1/4 x 1-1/2, 200psi
Brand: Kunkle Valve
'Relief valves are designed to open at a predetermined pressure. Here are some important details for Kunkle Valve Safety Relief Valve. Application: Steam Boiler and Generators, Pressure Reducing Stations etc, Body Material: Bronze, Inlet Size: 1-1/4".'
Details
  • <b>Price For:</b> Each <b>Disc Material</b>: B21 Alloy 485 <b>Item</b>: Safety Relief Valve <b>Temp. Range</b>: -60 Degrees to 406 Degrees F <b>Outlet Size</b>: 1-1/2" <b>Outlet Type</b>: FNPT <b>Factory Set Pressure</b>: 200 psi <b>Spring Material</b>: Stainless Steel <b>Overall Length</b>: 5-1/4" <b>Overall Height</b>: 9-5/8" <b>Body Material</b>: Bronze <b>Inlet Type</b>: MNPT <b>Seat Material</b>: EPR
  • <b>Standards</b>: ASTM A-313 TY 631, ASME Section 1, Steam, National Board Certified <b>Inlet Size</b>: 1-1/4" <b>Test Lever</b>: Yes <b>Application</b>: Steam Boiler and Generators, Pressure Reducing Stations etc <b>Country of Origin (subject to change)</b>: United States
Listing
Product groupBISS Basic
Product typeVALVE
Part number6010GFE01-AM0200
Items per pack1
LabelKUNKLE VALVE
ManufacturerKUNKLE VALVE
