KUNKLE . 6010GFE01-AM0150
Gallery
Attributes
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Radwell | 6010GFE01-AM0150 | 1 | 1 | ||
| Grainger | 5NKZ1 | 1 | 1 | ||
 Zoro | G0207593 | 1 | 79 | 1 | 1 @ $503.99 |
| G3201009 | 1 | 1 | 1 @ $411.99 | ||
 Boiler Geek | 6010GFE01-AM0150 | 1 | -2 | 1 | 1 @ $243.75 |
| AE4WQQ | 1 | 1 | 1 @ $741.47 | ||
 AmazonTP | B00CLTYRAW | 1 | 1 | 1 @ $346.77 | |
 AmazonTP | B07HJG3FFB | 1 | 1 | 1 @ $422.88 | |
| AmazonUNK | B07HJG3FFB | 1 | -2 | 1 | 1 @ $422.88 |
 AmazonSC | B07HJG3FFB | 1 | 1 | 1 @ $413.15 | |
| WWG5NKZ1 | 1 | 1 | 1 @ $693.06 | ||
 Voomi Supply | 6010GFE01-AM0150 | 1 | 1 | 1 @ $309.99 | |
 simsupply.com | CU-354E4B5A31 | 1 | 9 | 1 | 1 @ $473.54 |
 midwestapplianceparts.com | 6010GFE01-AM0150-KU-P | 1 | 1 | 1 @ $335.13 | |
 gsistore.com | 6010GFE01-AM0150 | 1 | 9999 | 1 | 1 @ $320.56 |
| hvacdiscountstore.com | KUN--6010GFE01-AM0150 | 1 | 1 | 1 @ $343.71 | |
 simsupply.com | ZO-G0207593 | 1 | 22 | 1 | 1 @ $635.55 |
 industrialzone.com | 6010GFE01-AM0150 | 1 | -2 | 1 | 1 @ $411.00 |
Related on Amazon
As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

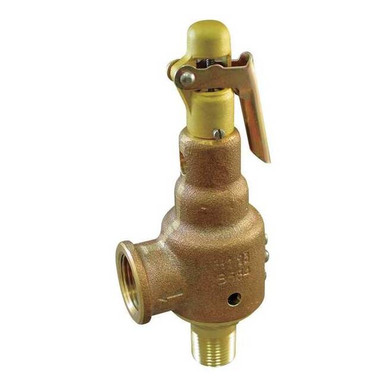

Kunkle 6010GFE01-AM0150 Bronze ASME Safety Relief Valve for Steam, EPR Soft Seat, 150 Preset Pressure, 1-1/4" NPT Male Inlet x NPT Female Outlet
Brand: Kunkle Valves
Safety Relief Valve, Body Material Bronze, Inlet Type MNPT, Outlet Type FNPT, Inlet Size 1 1/4 in, Outlet Size 1 1/2 in, Factory Set Pressure 150 psi, Disc Material B21 Alloy 485, Overall Height 9 5/8 in, Application Pressure Reducing Stations etc, Steam Boiler and Generators, Overall Length 5 1/4 in, Seat Material EPR, Spring Material Stainless Steel, Temp. Range -60 Degrees to 406 Degrees F, Test Lever Yes, Standards ASME Section 1, ASTM A-313 TY 631, National Board Certified, Steam
Details
- Bronze relief pressure valve with preset pressure of 150 psi for releasing excess pressure
- 1-1/4" male NPT threaded inlet, 1-1/2" female NPT threaded side outlet
- EPR soft seat for resistance to cold, heat, water, and steam
- Operating temperature range of -60 to +406 degrees F; pressure range of 3 to 250 psig
- Complies with ASME Section I rules, spring meets ASTM-313 TY631 standards
Kunkle 6010GFE01-AM0150 1.25"x1.5" 150#Stm 4234#hr EPR
Brand: Kunkle
1.25"x1.5" 150#stm 4234#hr epr
Listing
| Product group | BISS Basic |
|---|---|
| Product type | ELECTRONIC_COMPONENT |
| Part number | 6010GFE01-AM0150 |
| Items per pack | 1 |
| Label | Kunkle |
| Manufacturer | Kunkle |
Safety Relief Valve, 1-1/4 x 1-1/2, 150psi
Brand: Kunkle Valve
'Safety Relief Valve, Body Material Bronze, Inlet Type MNPT, Outlet Type FNPT, Inlet Size 1-1/4 In., Outlet Size 1-1/2 In., Factory Set Pressure 150 psi, Disc Material B21 Alloy 485, Overall Height 9-5/8 In., Application Steam Boiler and Generators, Pressure Reducing Stations etc, Overall Length 5-1/4 In., Seat Material EPR, Spring Material Stainless Steel, Temp. Range -60 Degrees to 406 Degrees F, Test Lever Yes, Standards ASTM A-313 TY 631, ASME Section 1, Steam, National Board Certified'
Details
- <b>Price For:</b> Each
Listing
| Product group | BISS Basic |
|---|---|
| Product type | ELECTRONIC_COMPONENT |
| Model | 6010GFE01-AM0150 |
| Part number | 6010GFE01-AM0150 |
| Items per pack | 1 |
| Label | KUNKLE VALVE |
| Manufacturer | KUNKLE VALVE |
