Humminbird Helix 12 CHIRP SI Fishfinder/GPS Combo | Camping World

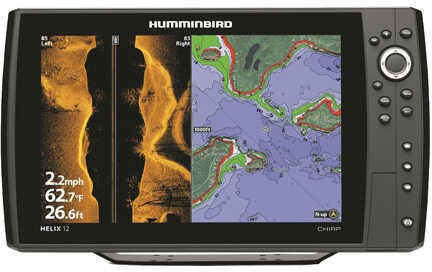

HELIX 12 CHIRP DI/GPS Combo The HELIX 12 CHIRP SI GPS features a large 12.1 display with LED backlight, Side Imaging and Down Imaging sonar with CHIRP sonar with up to 8000 Watts PTP power output, GPS Chartplotting with built-in ContourXD maps, and Ethernet networking capabilities. Includes unit cover. *Optional 50 kHz transducers available for extreme deepwater use and to obtain 1000 watts *Optional Chirp transducer purchase required for 28kHz to 540kHz and maximum 5000 ft depth performance Specifications: Display Size - Diagonal: 12.1 Display Pixel Matrix: 800V x 1280H Display Type: Color TFT Display Colors Grayscale: 65,000 Colors Sonar Standard: Broadband CHIRP/HD Side Imaging/HD Down Imaging/DualBeam PLUS Standard Sonar Coverage: 20°, 60°, (2)86° & (2)55° @ -10db (Total of 180°) Standard Sonar Frequency: 200/83/455/800/50* kHz Target Separation: 2.5 Power Output RMS :1000 Watts* Power Output Peak to Peak: 8000 Watts* Depth Capability: 150 ft (SI/DI), 1500 ft, 5000 ft* Temperature: Built-In Transducer Speed: GPS Speed Included Backlight: LED Mount A Type: Gimbal Mounting Options: Optional In-Dash Mounting Kit Transducer Standard: XHS 9 HDSI 180 T Transducer Mounting: Transom Power Input: 10-20 VDC Power Draw: 750mA GPS Receiver: Included GPS Tracking: Included GPS Chartplotting: Included Waypoints, Routes, Tracks/Points: 2,500, 47, 50/20,000 Humminbird Mapping: Optional Navionics Gold/HotMaps: Optional Navionics Platinum+: Optional Platinum Capable: Optional C-Map 4D: Not Supported 360 Imaging: Optional i-Pilot Link: Optional HD Radar: Optional NMEA 2000: Optional 5 Port Expansion Module: Optional WeatherSense: Not Supported Precision GPS: Included Heading Sensor GPS: Optional PC Connect: Optional External GPS Receiver: Optional AS Interlink: Not Supported AIS Compatability: Optional SwitchFire Sonar: Included Screen Snap Shot: Included Sonar Recording: Included Humminbird PC: Included Upgradable Internal Softwar
