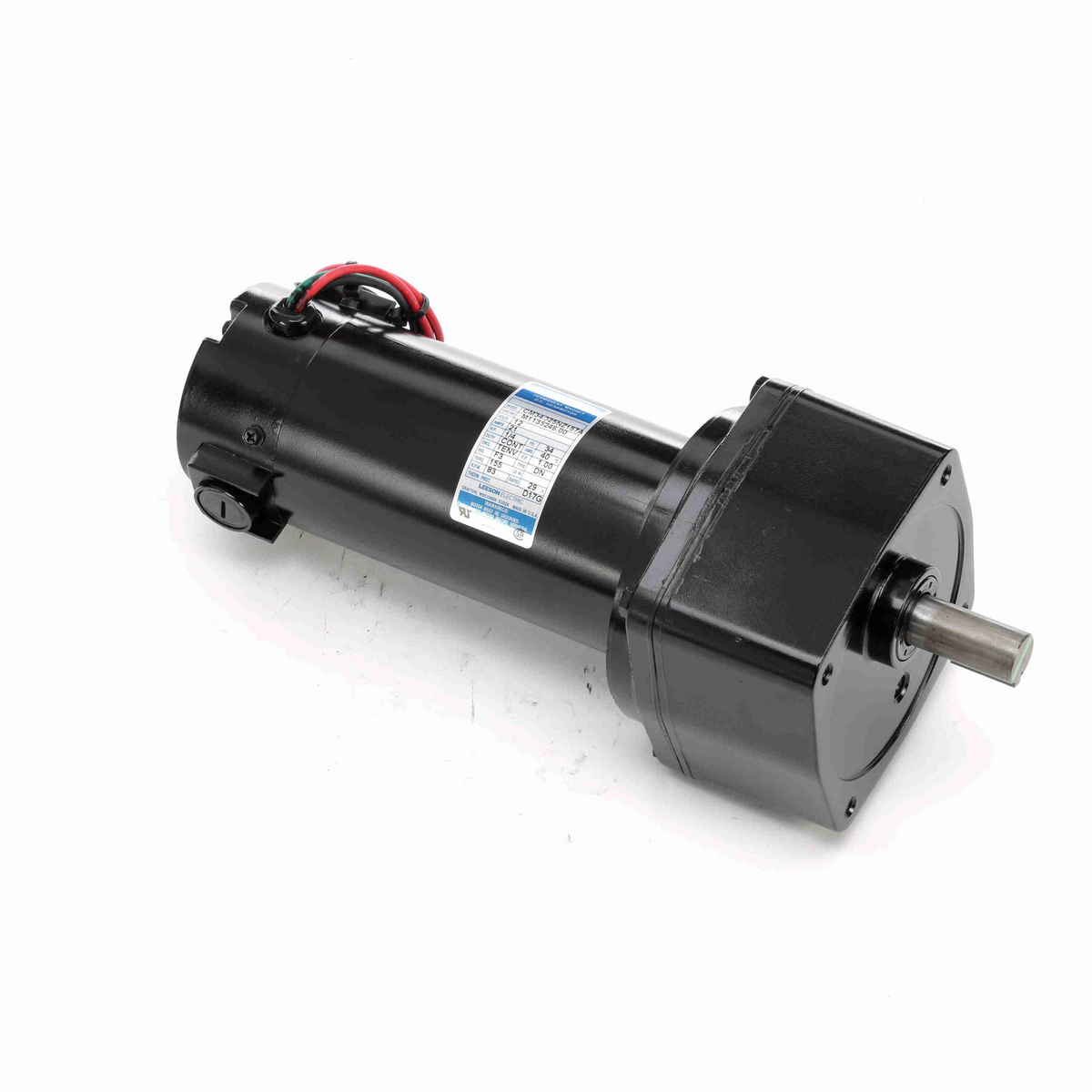

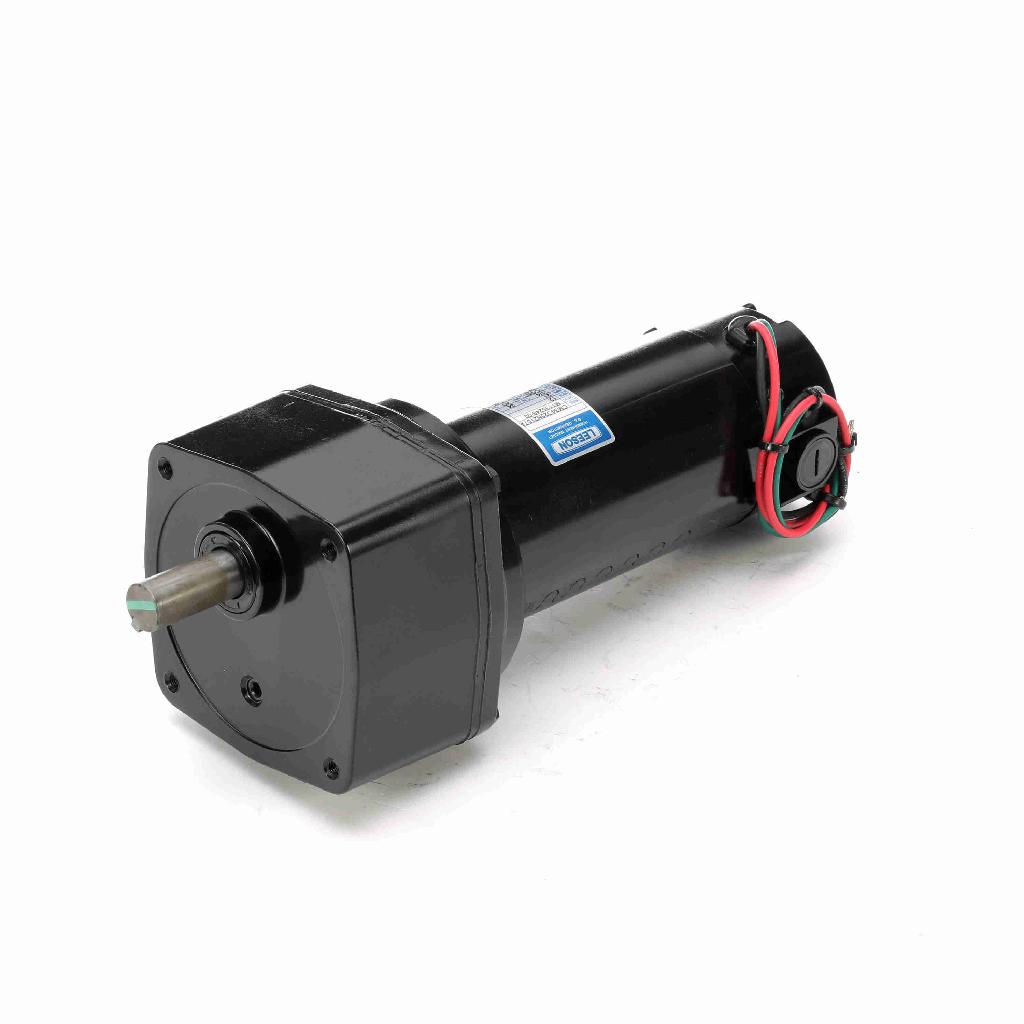

M1135246.00 Leeson DC GearMotor | MROSupply.com

29:1.83RPM.155LBIN.1/4HP.3412V.DC.TENV

<p><ul><li>Rugged die cast aluminum gear housing for maximum gear and bearing support</li><li>Precision machined gearing, hardened for maximum load capability</li><li>All gearing designed and rated to AGMA class 9 standards, and to withstand momentary shock overload of 200%</li><li>Oversized output bearings for greater overhung load capacity and long life</li><li>High carbon alloy output shaft provides maximum strength and rigidity</li><li>All needle bearing journals are precision ground after heat treating to provide maximum fit and finish</li><li>Heavy duty industrial oil seals keep lubricant in and dirt out</li><li>Gears and bearings are splash lubricated with permanent, heavy duty gear oil</li><li>Optional conduit box available</li></ul></p><p><b>Specifications: </b><ul><li>Motor Type:-Brushed</li><li>Shaft Type:-Parallel</li><li>kW:-0.19 kW</li><li>Input Horsepower:-1/4 hp</li><li>Motor Supply Voltage:-12 V</li><li>Gear Ratio:-29 :1</li><li>Output rpm:-83.0 rpm</li><li>Full Load Torque:-155 in-lbs</li><li>Full Load Current:-21.00 A</li><li>Frame Size:-34</li><li>Enclosure Type:-TENV (Totally Enclosed Non-Ventilated)</li><li>Mounting Type:-Special</li><li>Insulation Class:-F</li><li>Thermal Protection:-None</li><li>Standards Met:-UL Recognized,CSA</li><li>Service Factor:-1.00</li><li>Duty / Condition Type:-Continuous Duty</li><li>Motor Length Less Shaft:-6.62 in</li><li>Overall Length (C-Dimension):-13.31 in</li><li>Drive End Bearing Size:-6201-13</li><li>Opposite Drive End Bearing Size:-608</li><li>Shaft Diameter:-0.75 in</li><li>Shaft Rotation:-Reconn</li><li>Ambient Temperature Range:-40 C</li><li>Weight:-16 lbs</li></ul></p>
